5. Assembly Diagram

5. Assembly Diagram

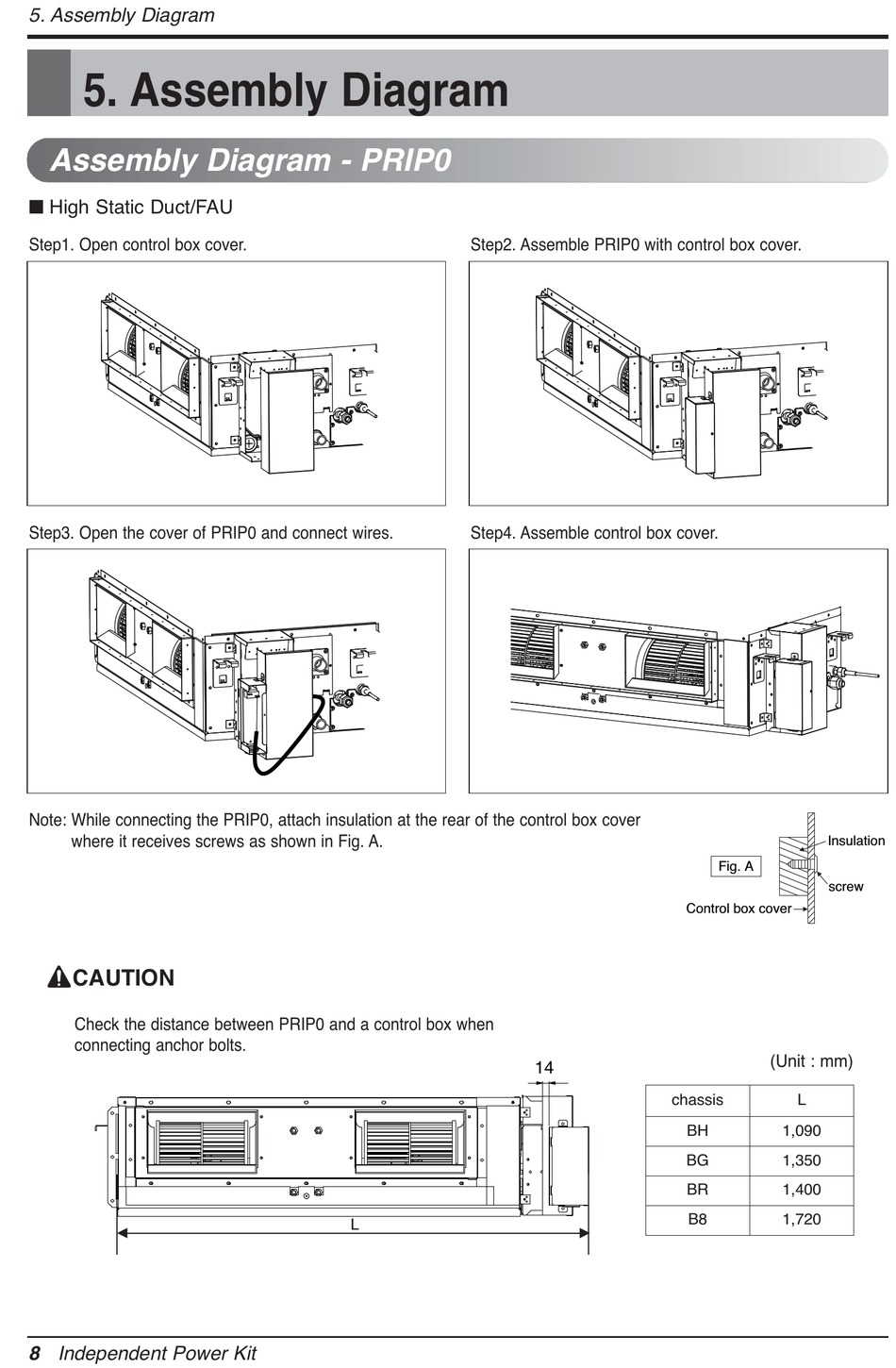

Assembly Diagram - PRIP0
n High Static Duct/FAU
Step1. Open control box cover.
Step3. Open the cover of PRIP0 and connect wires.
Note: While connecting the PRIP0, attach insulation at the rear of the control box cover
where it receives screws as shown in Fig. A.
CAUTION
Check the distance between PRIP0 and a control box when
connecting anchor bolts.
8 Independent Power Kit
Step2. Assemble PRIP0 with control box cover.
Step4. Assemble control box cover.
L
Control box cover
14
chassis
BH
BG
BR
B8
Insulation
Fig. A
screw
(Unit : mm)
L
1,090
1,350
1,400
1,720
