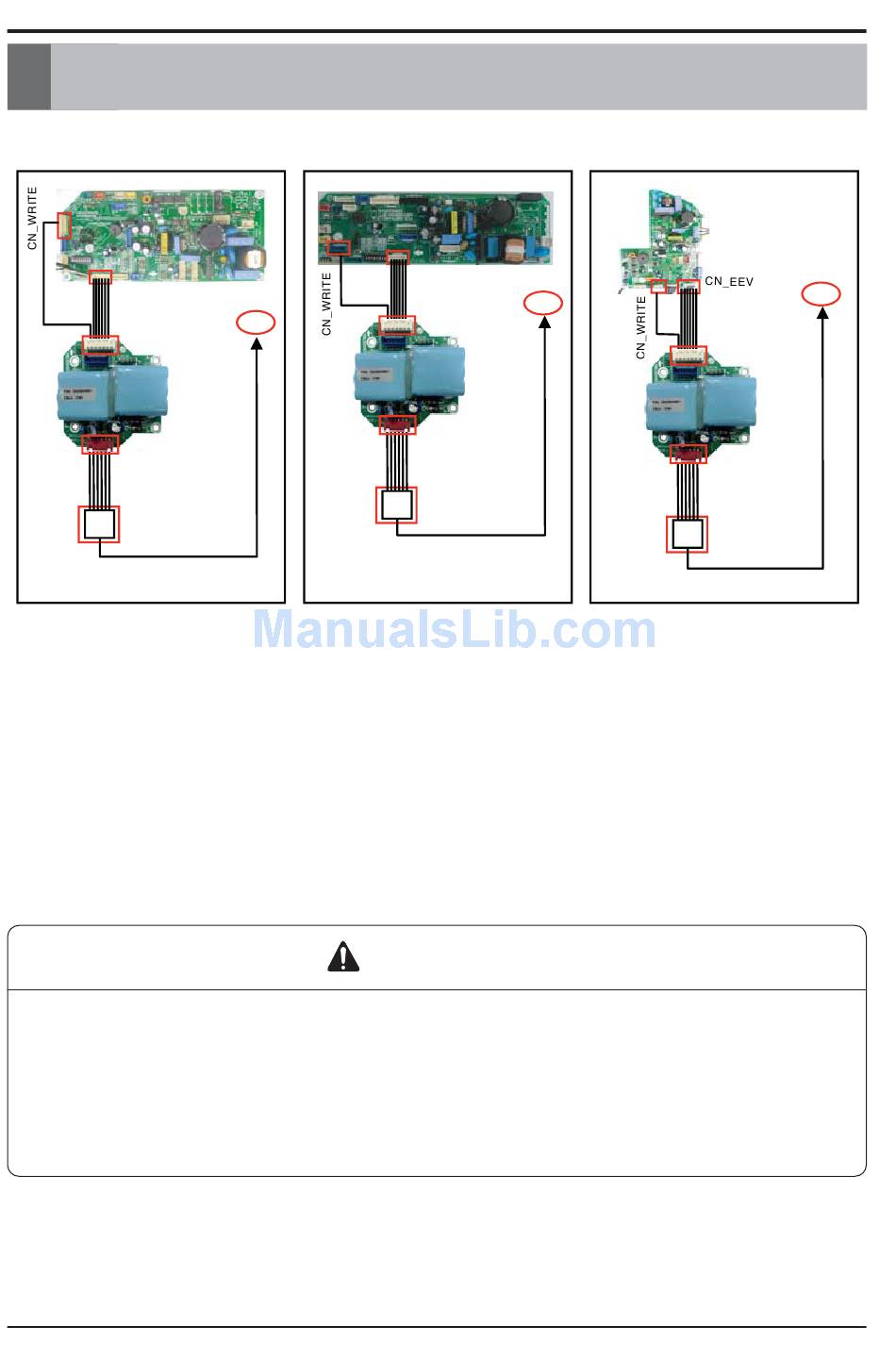

6. Electrical Wiring

DUCT/FS/CVT/FAU
CN_EEV
Harness 2
Harness 2
Harness 2
CN_EEV/MAIN
CN_EEV/LOAD
Harness 1
Harness 1
Harness 1
To Indoor unit's EEV
*FS : Floor Standing
*CVT : Convertible
*FAU : Fresh Air Intake Unit
1. Turn the power off using circuit breaker.
2. Disconnect the EEV cable of the indoor unitʼs PCB(CN-EEV)
3. Connect the independent power kit(CN-EEV/LOAD) to the indoor unitʼs EEV, using
harness 1.
4. Connect the independent power kit(CN-EEV/MAIN) to the indoor unitʼs PCB(CN-
EEV/CN-WRITE), using harness 2 or 3.
5. Supply the power.
• The wire should not be exposed to the outside otherwise it may leads to the malfunction
of the independent power kit due to wire damage.
• Wrong wiring also causes the malfunction of the independent power kit or damage to it.
• Power should be supplied more than 20 minutes continuously in order to operate the
independent power kit correctly. Otherwise, the independent power kit can not fully close
the EEV due to the lack of the charging power.
CST/Console/Hydro Kit
Harness 2
Harness 2
Harness 2
EEV
Harness 1
Harness 1
Harness 1
*CST : Cassette
WARNING
CN_EEV
CN_EEV
CN_EEV
EEV
CN_EEV/MAIN
CN_EEV/LOAD
To Indoor unit's EEV
6. Electrical Wiring
Wall mounted/ ART COOL
Harness 3
Harness 3
Harness 3
CN_EEV/MAIN
CN_EEV/LOAD
Harness 1
Harness 1
Harness 1
To Indoor unit's EEV
Installation Manual 15
EEV
