LG PRIP0 Installation Manual page 9

Independent power kit (for multi v product)

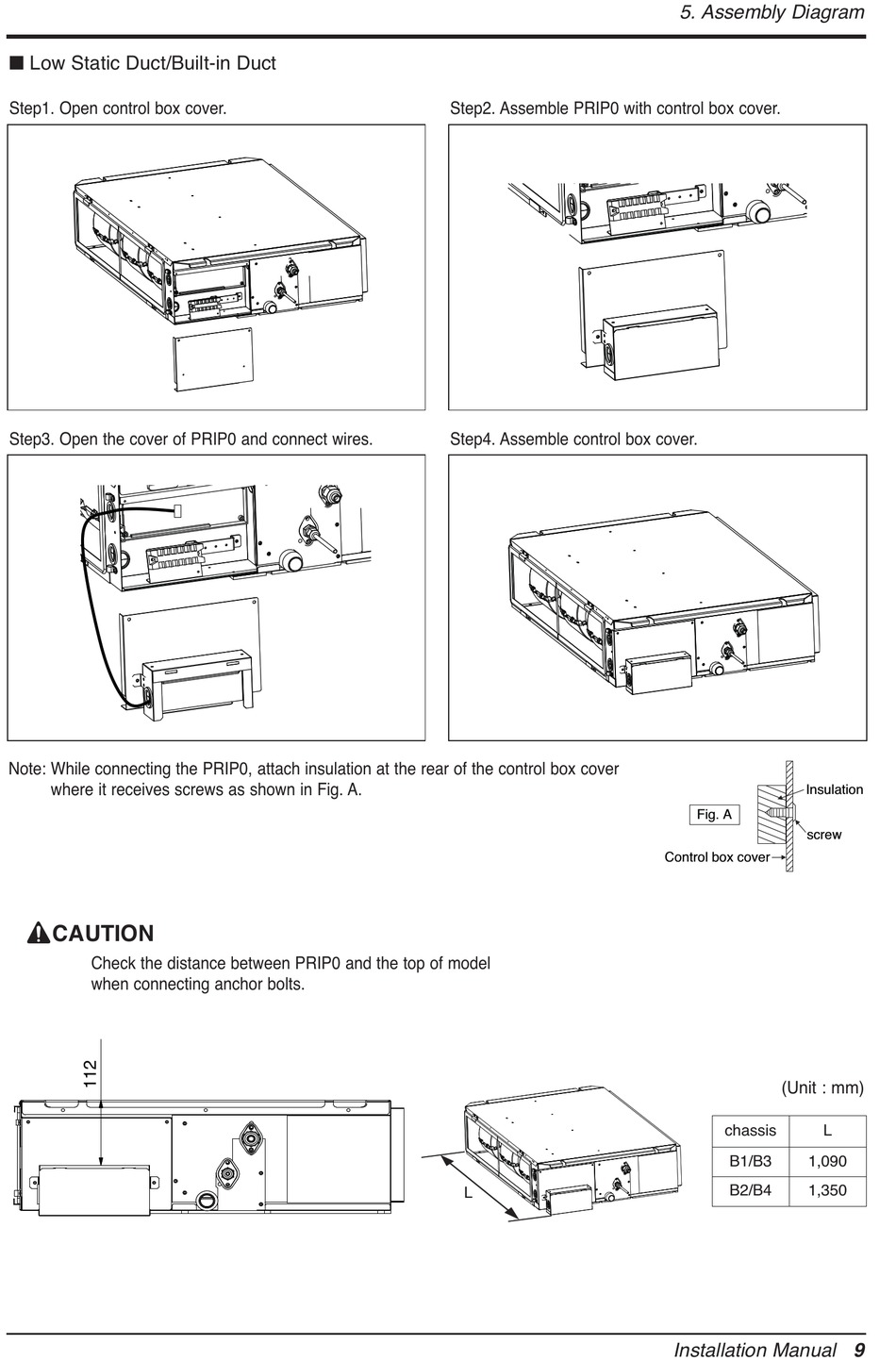

n Low Static Duct/Built-in Duct

Step1. Open control box cover.

Step3. Open the cover of PRIP0 and connect wires.

Note: While connecting the PRIP0, attach insulation at the rear of the control box cover

where it receives screws as shown in Fig. A.

CAUTION

Check the distance between PRIP0 and the top of model

when connecting anchor bolts.

Step2. Assemble PRIP0 with control box cover.

Step4. Assemble control box cover.

5. Assembly Diagram

Insulation

Fig. A

screw

Control box cover

(Unit : mm)

chassis

B1/B3

1,090

B2/B4

1,350

Installation Manual 9
