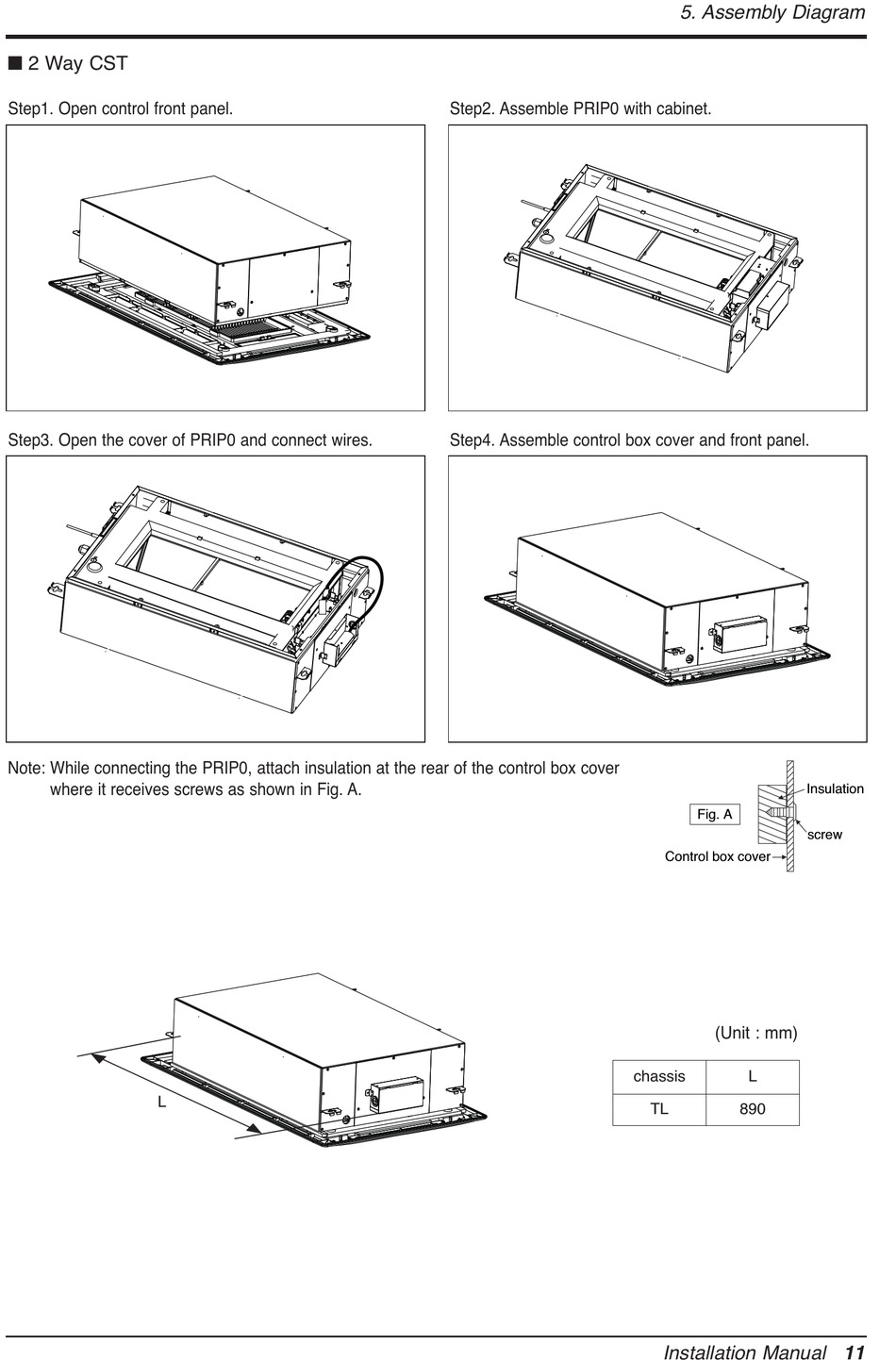

n 2 Way CST
Step1. Open control front panel.
Step3. Open the cover of PRIP0 and connect wires.
Note: While connecting the PRIP0, attach insulation at the rear of the control box cover
where it receives screws as shown in Fig. A.
L
Step2. Assemble PRIP0 with cabinet.
Step4. Assemble control box cover and front panel.
5. Assembly Diagram
Fig. A
Control box cover
(Unit : mm)
chassis
L
TL
890
Installation Manual 11
Insulation
screw
