5. Assembly Diagram
n 1 Way CST

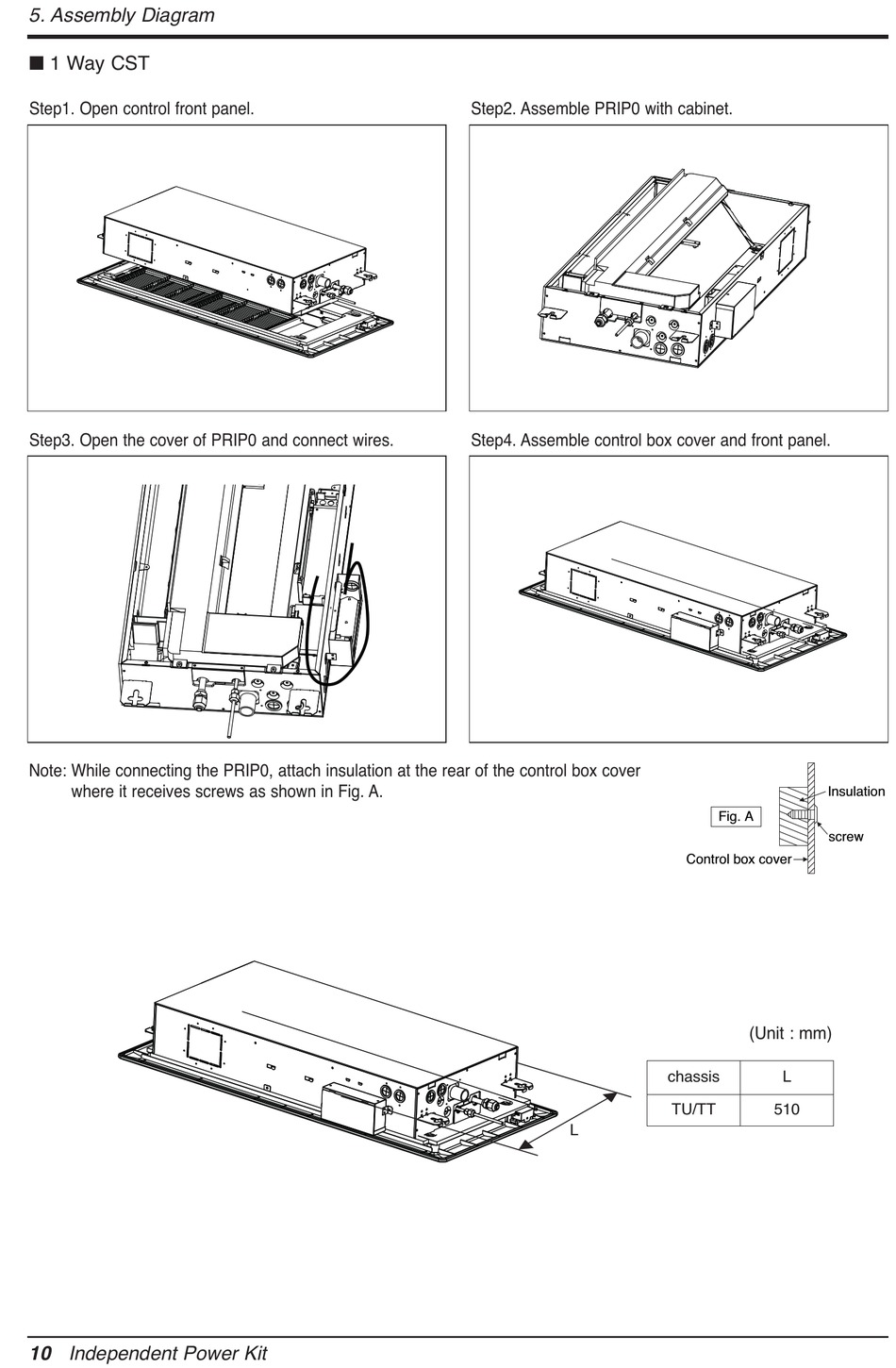

Step1. Open control front panel.
Step3. Open the cover of PRIP0 and connect wires.
Note: While connecting the PRIP0, attach insulation at the rear of the control box cover
where it receives screws as shown in Fig. A.
10 Independent Power Kit
Step2. Assemble PRIP0 with cabinet.
Step4. Assemble control box cover and front panel.
L
Insulation
Fig. A
screw
Control box cover
(Unit : mm)
chassis
L
TU/TT
510
