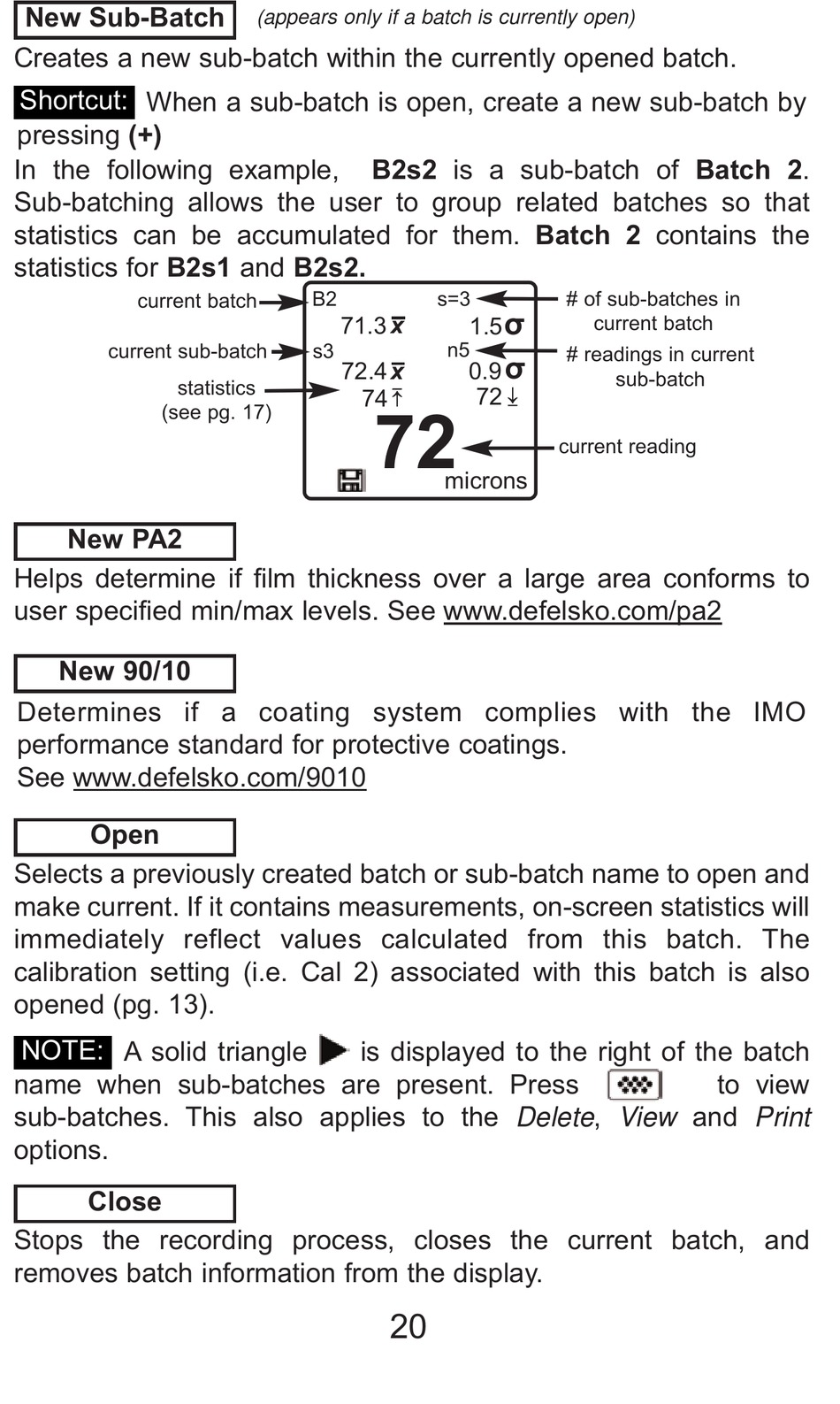

New Pa2; New 90/10 - DeFelsko PosiTector6000 Manual

New Sub-Batch
Creates a new sub-batch within the currently opened batch.
Shortcut:
When a sub-batch is open, create a new sub-batch by
pressing (+)
In the following example,
Sub-batching allows the user to group related batches so that
statistics can be accumulated for them. Batch 2 contains the
statistics for B2s1 and B2s2.
current batch
current sub-batch
(see pg. 17)

New PA2

Helps determine if film thickness over a large area conforms to
user specified min/max levels. See www.defelsko.com/pa2

New 90/10

Determines if a coating system complies with the IMO
performance standard for protective coatings.
See www.defelsko.com/9010
Open
Selects a previously created batch or sub-batch name to open and
make current. If it contains measurements, on-screen statistics will
immediately reflect values calculated from this batch. The
calibration setting (i.e. Cal 2) associated with this batch is also
opened (pg. 13).
NOTE:
A solid triangle
name when sub-batches are present. Press
sub-batches. This also applies to the Delete, View and Print
options.
Close
Stops the recording process, closes the current batch, and
removes batch information from the display.
(appears only if a batch is currently open)
B2
s3
statistics
B2s2 is a sub-batch of Batch 2.
s=3
x
71.3
1.5
72
n5
x
72.4 0.9
72
74
microns
is displayed to the right of the batch
20
# of sub-batches in
σ
current batch
σ
# readings in current
↨
sub-batch
current reading
to view
