Advantech MIC-3321 Startup Manual page 2

Execution Environment (PXE)
Battery-backup RAM: 512 KB
Input /Output Bus Interface:
PCI 2.2 compliant, 32 bit/33 MHz
CompactPCI Compliance:
PICMG 2.0 R3.0 Compatible
Specifications
Display
Controller: Intel Graphics Media Accelerator 900
VRAM: DVMT3.0 128MB
Resolution: Up to 2048x1536 with 32-bit color at 75Hz
Mechanical & Environmental Specifications
Board Size (W x H) : 160 x 100 mm (3U)
Operating Temperature:0 ~ 50° C
(Pentium M 2.0GHz & Celeron M 800MHz modules)
(Celeron M 1.0GHz module)
Storage Temperature: -40 ~ 80° C
Board Weight: 0.6 kg

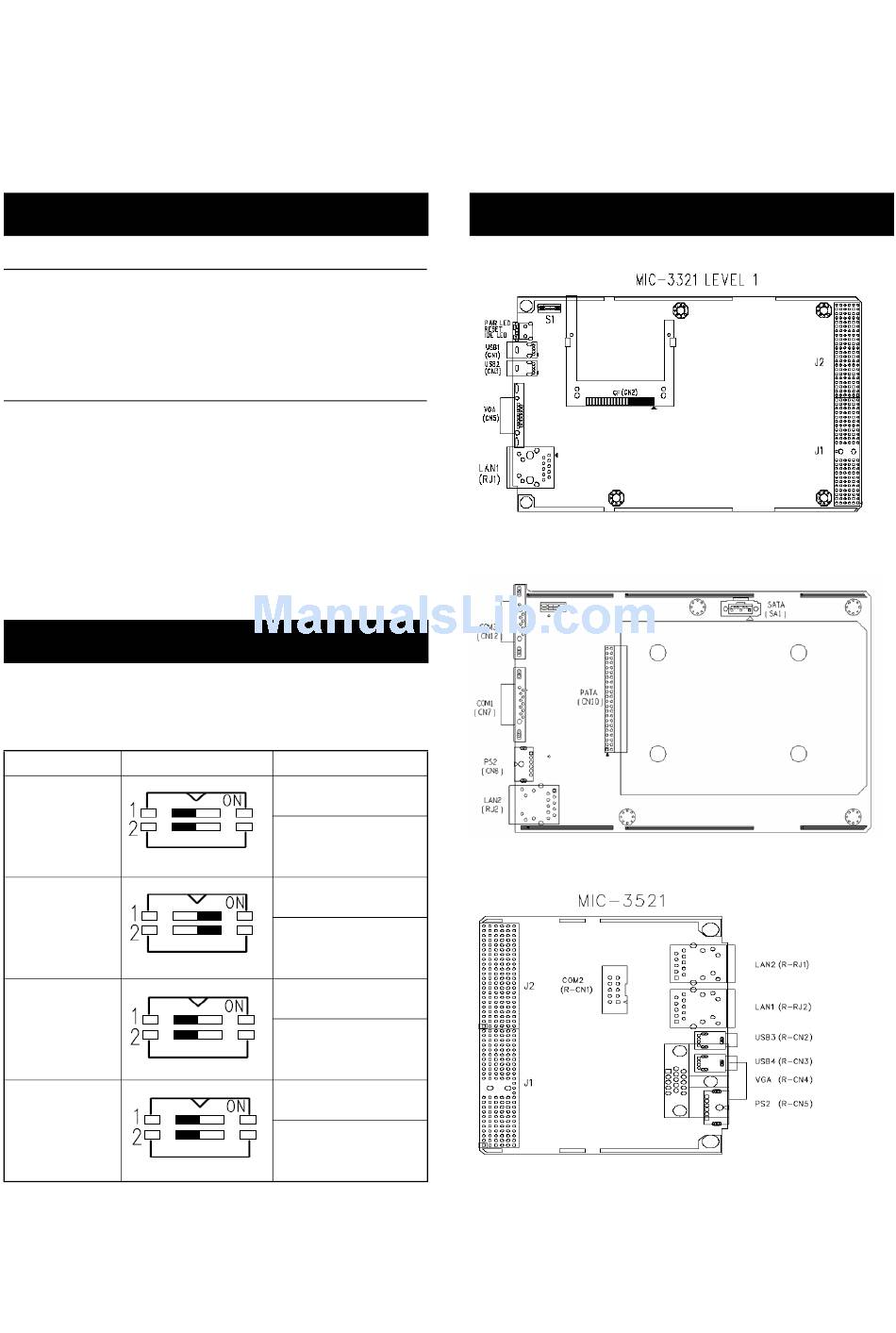

Switch Settings
Table 1.1 lists the switch functions of MIC-3321 (be
sure that the switch is white one). Figure 1.3 and Figure
1.4 show the locations of S1 and S2, respectively.
DIP-SW Mode Setting
1F-S1 Mode
2F-S2 Mode
2 Startup Manual
-25 ~ 70° C
Function
Bit-1 : ON
LAN1 on Front I/O
Bit-2 : OFF
CF : Slave
Bit-1 : OFF
LAN1 on Rear I/O
Bit-2 : ON
CF : Master
Bit-1 : ON
LAN2 on Front I/O
Bit-2 : OFF
N/C
Bit-1 : OFF
LAN2 on Rear I/O
Bit-2 : ON
N/C
Connector Locations
Figure 1: MIC-3321 S1 Location (1F)
Figure 2: MIC-3321 S2 Location (2F)
Figure 3: MIC-3521 Connectors
