Eurocode Digi50 Controller V1.03 04/07/2005 Page - 5 -

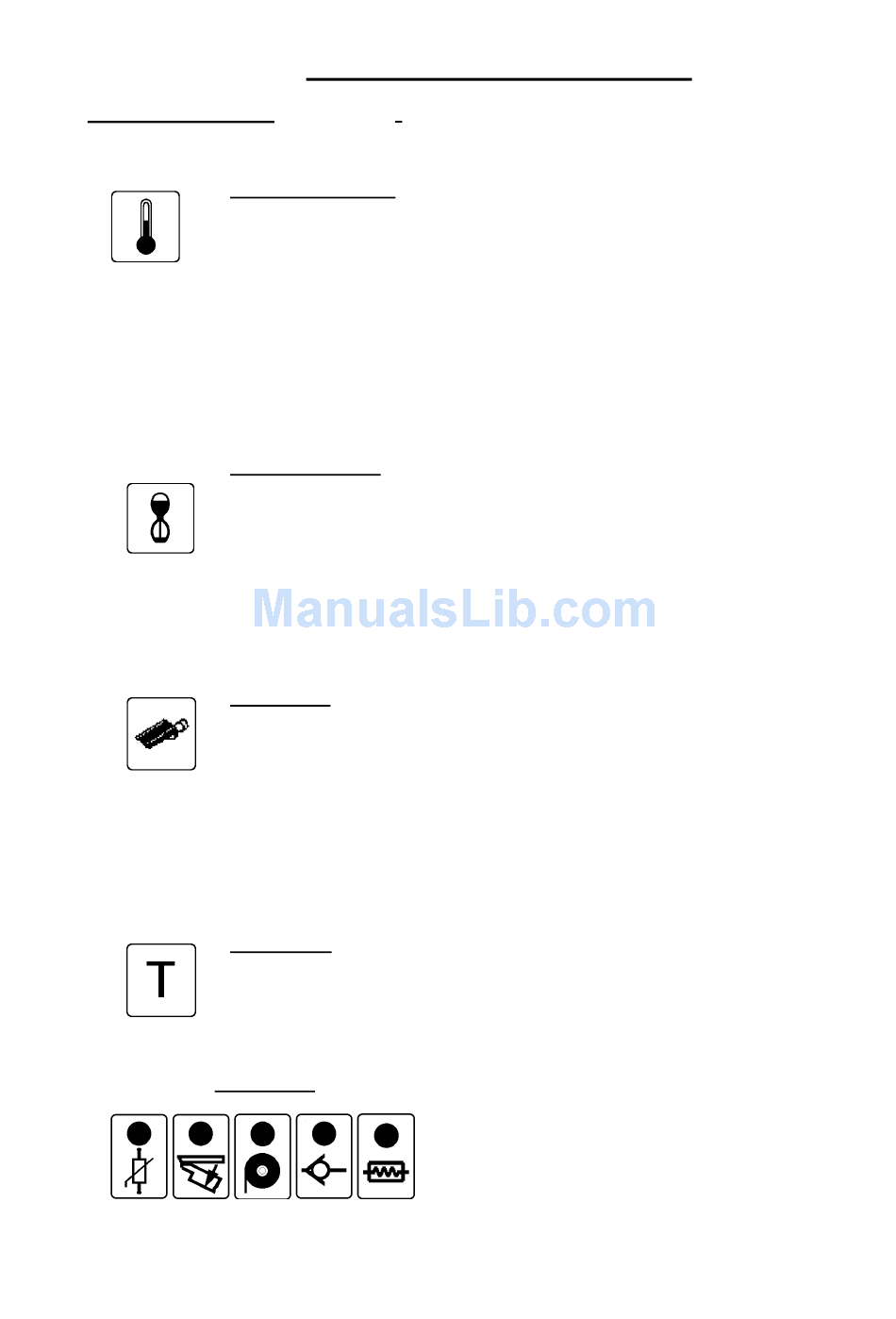

Digi50 Operating Instructions
Digi50 Control Unit (see page 6)
Temperature Button
To adjust the temperature setting, press and hold down the temperature button
and use the up/down arrow keys to the left of the display to increase or decrease
the set point. (Required Temperature)
Range:- Minimum 70ºC (158ºF), Maximum 220ºC (428ºF).
Note! When selecting operating Modes 2, 4 or 6, the printer will not operate on the
external trigger until the temperature has reached the pre-programmed set point.
(see page 15 for ranges of the mode settings etc.)
In normal operation, the temperature will fluctuate by up to ±4ºc from the set point.
Print Dwell Button
To adjust the print dwell setting, press and hold down the print dwell button and
use the up/down arrow keys to the left of the display to increase or decrease.
This adjustment controls the time the type/die face is in contact with the substrate.
Higher numbers indicate longer dwell times.
Range:- 10 to 2000 milli–seconds. (0.010 – 2 Seconds)
Print Switch
1. Switches the print signal between external trigger (automatic print cycle) and
the test button feature (manual operation).
Note! The Print LED (green) is illuminated when switched for external triggering
(automatic print cycle).
Any Fault condition, will cancel (switch off) the Print Switch automatically.
"This is a safety feature"
Test Button.
Manually operates the printer (will not operate whilst the Print LED is on).
Fault LED's.
Refer to pages 24 & 25 for system faults.
