Open Date EUROCODE 150 Operator Instructions Manual page 20

Eurocode Digi50 Controller V1.03

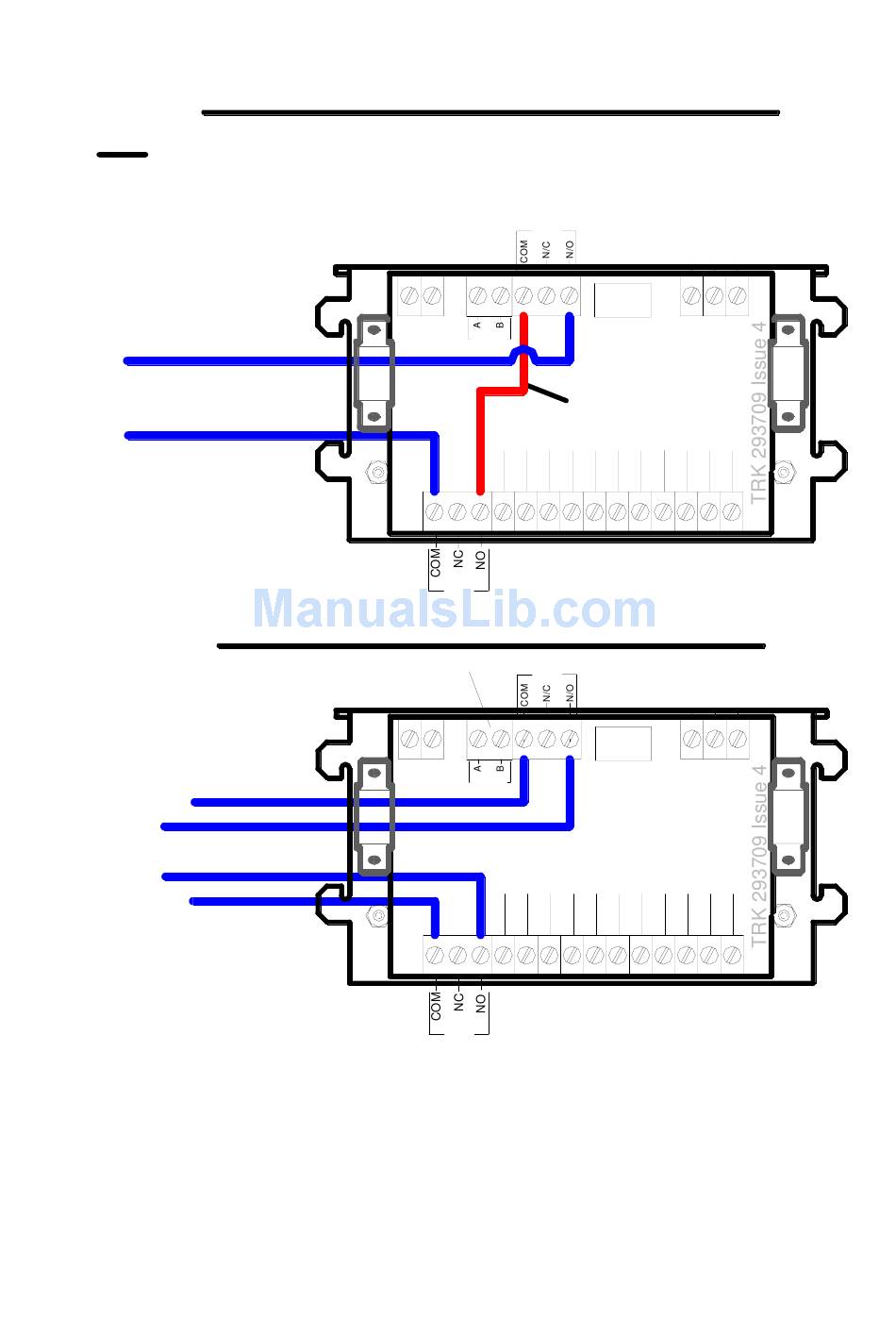

Digi50 Fault and Print Relay Connections
Note.
Linking the Fault & Print Relay will achieve optimum security. If the Print Switch is switched off,
or when any printer fault occurs the relays will change state. This will break the Signal Return
connection (High going Low.) see below.
Signal Return
Max 24v DC (1 amp)
Digi50 Individual Relays & Connections
Airswitch Connections (see seperate diagrams)
24v DC Max
Output
Output
24v DC Max
04/07/2005
FAULT
RELAY
FAULT
RELAY
Print Relay:- Rated 24v DC, 1 amp max current
Fault Relay:- Rated 24v DC, 1 amp max current
PRINT
RELAY
OMRON
G5V-1
24VDC
AIR
SWITCH
Link Wire
T T PM F1 F2 D1 D2
RELAY
OMRON
G5V-1
24VDC
AIR
SWITCH
T T PM F1 F2 D1 D2
Page - 20 -
L N E
S- S+ P- P+
L N E
S- S+ P- P+
