Open Date EUROCODE 150 Operator Instructions Manual page 18

Eurocode Digi50 Controller V1.03

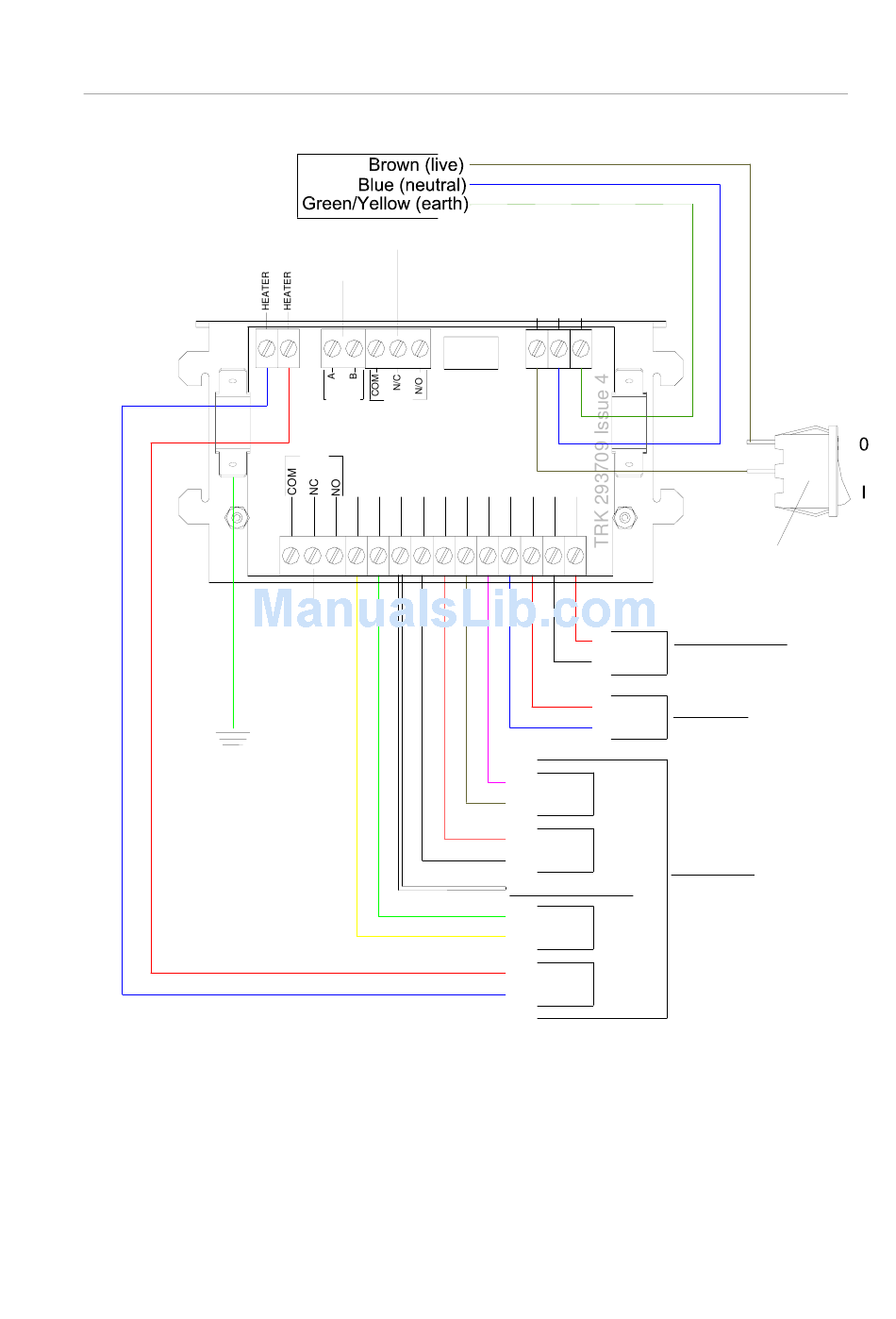

Digi50 Connections shown from rear of the Control Unit
Mains Cable
(Three Core White)
To Chassis (Earth Stud)
04/07/2005
Print Relay
Air Switch
AIR PRINT
SWITCH RELAY
FAULT
RELAY
T T PM F1
Fault Relay
L N E
OMRON
G5V-1
24VDC
F2 D1 D2 S- S+ P- P+
Red (+)
Black (-)
Red (+)
Blue (-)
Mauve
Door Switch
Brown (-)
Pink (+)
Foil Sensor
(if fitted)
Black O/P
White Printmaster Only
Green
Thermistor
Yellow
Red
Heater
240V AC
Blue
Page - 18 -
On/Off Switch
Trigger (Print Signal)
Grey twin Screened Cable.
(Screen connected to Earth)
Solenod Valve
Black Twin Core Cable.
Multicore cable
to 9 pin "D" plug.
(Screen connected to Earth)
