Open Date EUROCODE 150 Operator Instructions Manual page 14

Eurocode Digi50 Controller V1.03 04/07/2005

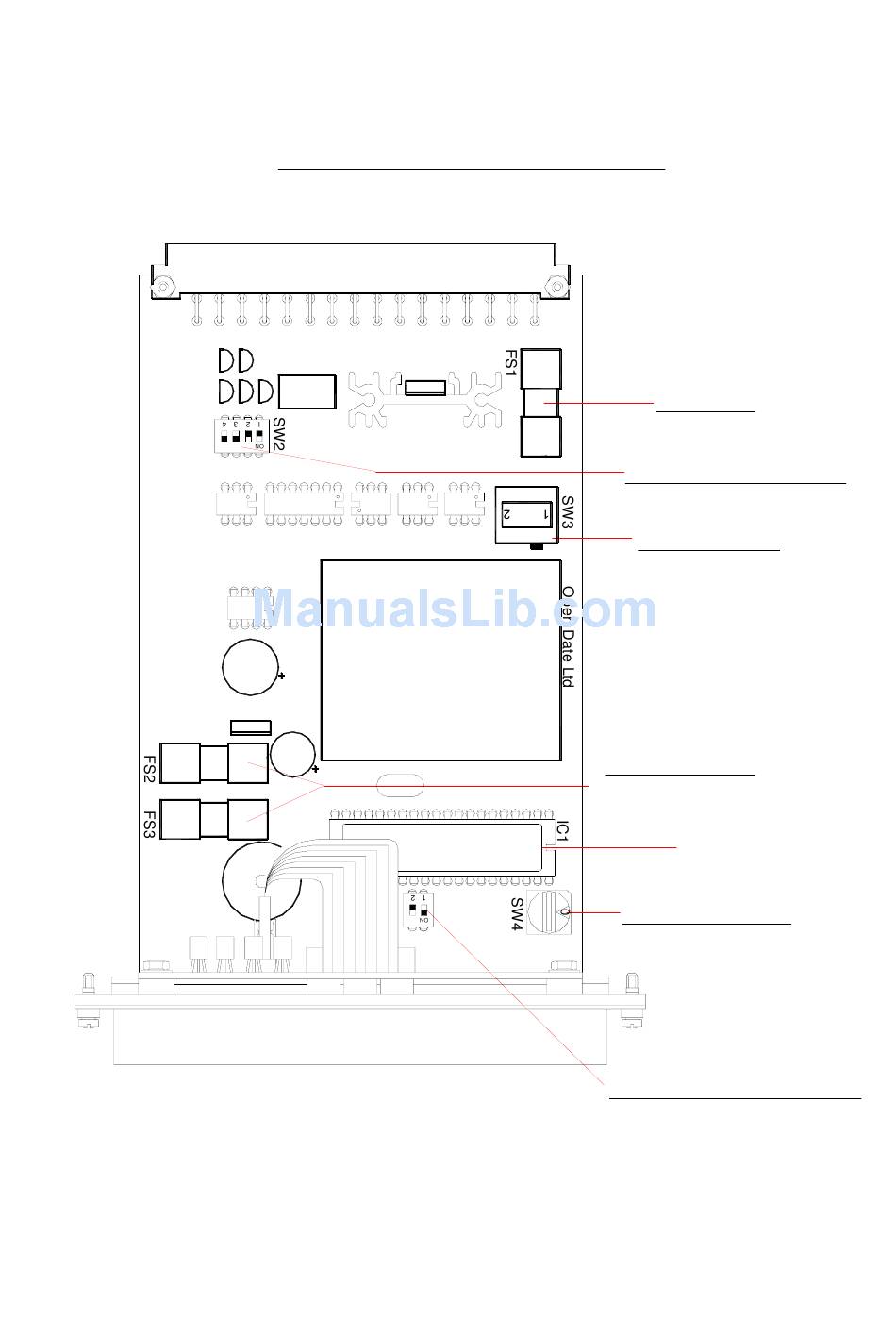

Setting Up Digi50 Controller
Digi50 V1 . 03
2.0 Amp, 250 Volt (Anti-Surge)
Dip Switch Settings (SW2)
230V 115V
SW3 - Position 1 = 115 Volts
SW3 - Position 2 = 230 Volts
(Shown as 115 Volt selected)
Thermistor Fuses (FS2 & FS3)
63 milliamp, 250 Volt (Quick Blow)
(showing software version)
Rotary Mode Switch (SW4)
MODE
Thermistor Dip Switch Settings
Page - 14 -
Mains Fuse (FS1)
(Part No. FUS 503512)
(see page 16)
Voltage Selector (SW3)
(Part No. FUS 503511)
Eprom Label
(see page 15)
(see page 17)
