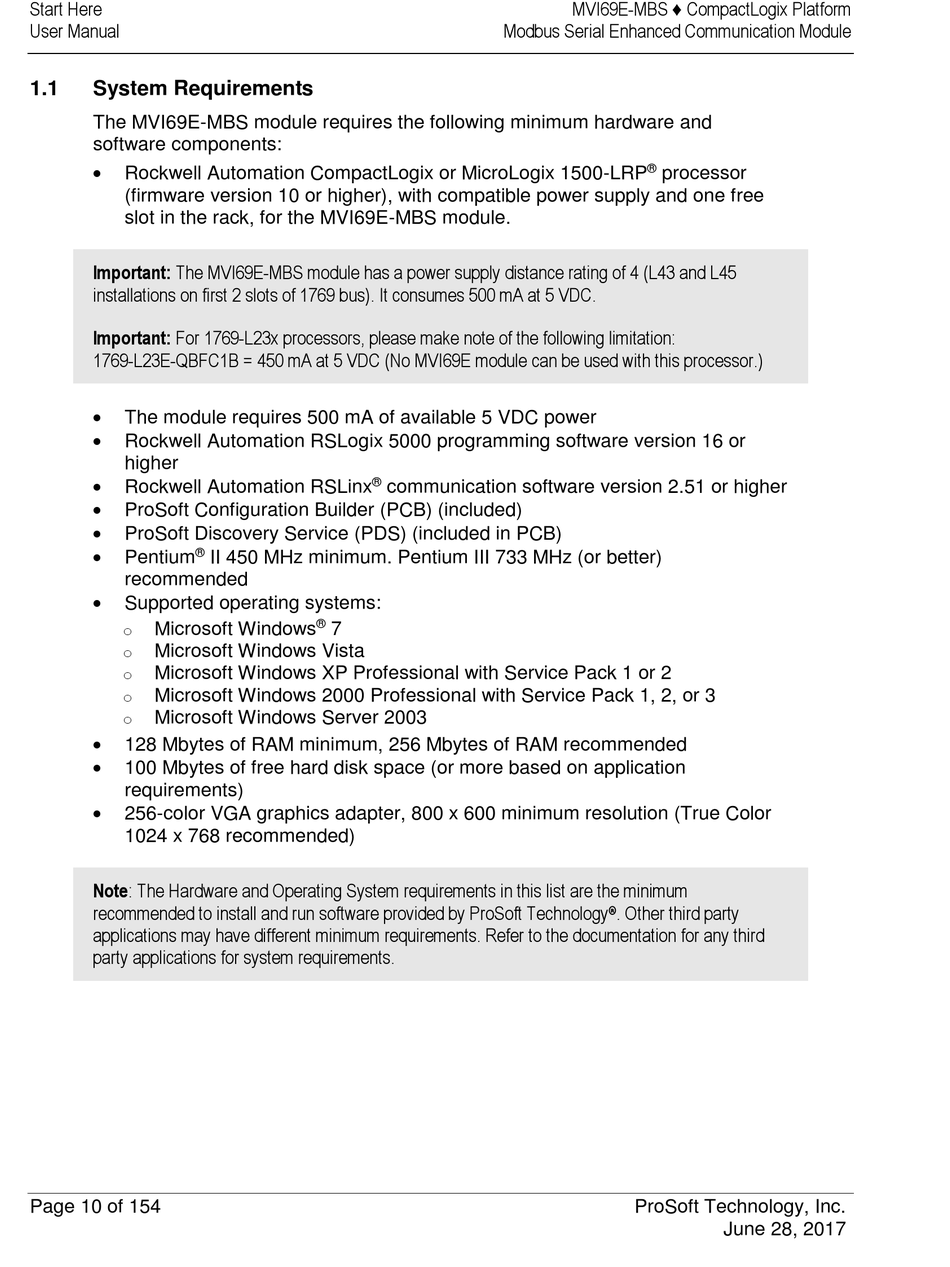

1.1

System Requirements

The MVI69E-MBS module requires the following minimum hardware and
software components:

Rockwell Automation CompactLogix or MicroLogix 1500-LRP
(firmware version 10 or higher), with compatible power supply and one free
slot in the rack, for the MVI69E-MBS module.
Important: The MVI69E-MBS module has a power supply distance rating of 4 (L43 and L45
installations on first 2 slots of 1769 bus). It consumes 500 mA at 5 VDC.
Important: For 1769-L23x processors, please make note of the following limitation:
1769-L23E-QBFC1B = 450 mA at 5 VDC (No MVI69E module can be used with this processor.)

The module requires 500 mA of available 5 VDC power

Rockwell Automation RSLogix 5000 programming software version 16 or
higher

Rockwell Automation RSLinx

ProSoft Configuration Builder (PCB) (included)

ProSoft Discovery Service (PDS) (included in PCB)

®
Pentium
recommended

Supported operating systems:
Microsoft Windows
o
Microsoft Windows Vista
o
Microsoft Windows XP Professional with Service Pack 1 or 2
o
Microsoft Windows 2000 Professional with Service Pack 1, 2, or 3
o
o Microsoft Windows Server 2003

128 Mbytes of RAM minimum, 256 Mbytes of RAM recommended

100 Mbytes of free hard disk space (or more based on application
requirements)

256-color VGA graphics adapter, 800 x 600 minimum resolution (True Color
1024 x 768 recommended)
Note: The Hardware and Operating System requirements in this list are the minimum
recommended to install and run software provided by ProSoft Technology
applications may have different minimum requirements. Refer to the documentation for any third
party applications for system requirements.
