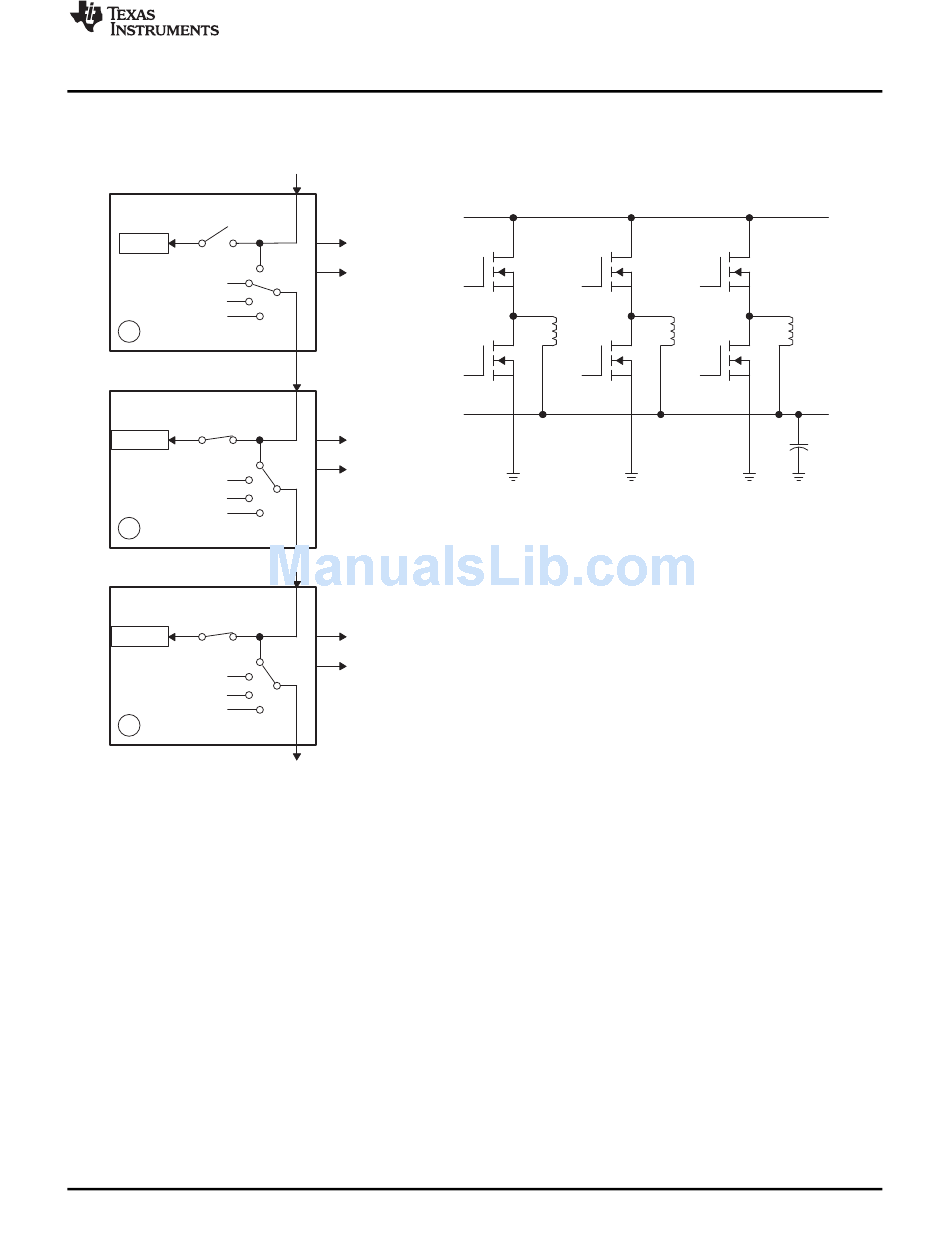

Figure 15-70. Control of a 3-Phase Interleaved DC/DC Converter
Master
Phase reg
En
Φ=0°
CTR=zero
CTR=CMPB
X
1
SyncOut
Slave
Phase reg
En
Φ=120° Φ=120°
CTR=zero
CTR=CMPB
X
2
SyncOut
Slave
Phase reg
En
Φ=240°
CTR=zero
CTR=CMPB
X
3
SyncOut
