2. When the set temperature is degrees Fahrenheit (FCF)
Code Function
TS Temperature Set Value
DS Difference Set Value
PT Compressor Delay
CA Temperature Calibration Value
CF Fahrenheit or Celsius Setting
Note:
When CF value change, all the set values restore to default value.

Error Description

Sensor Error Alarm: When the temperature sensor circuit is short circuit or open
circuit, the controller starts sensor error mode and closes all running status, the buzzer
alarm sounds, screen displays ER. Press any keys can cancel buzzer alarm, the system
returns to the normal working status after error is cleared.
Over-temperature Alarm: When the measuring temperature exceeds the
temperature measuring range, the controller starts over-temperature error alarm mode
and closes all running status, the buzzer alarm sounds, screen displays HL. Press any
keys can cancel buzzer alarm, the system returns to the normal working status after the
temperature returns to measuring range.

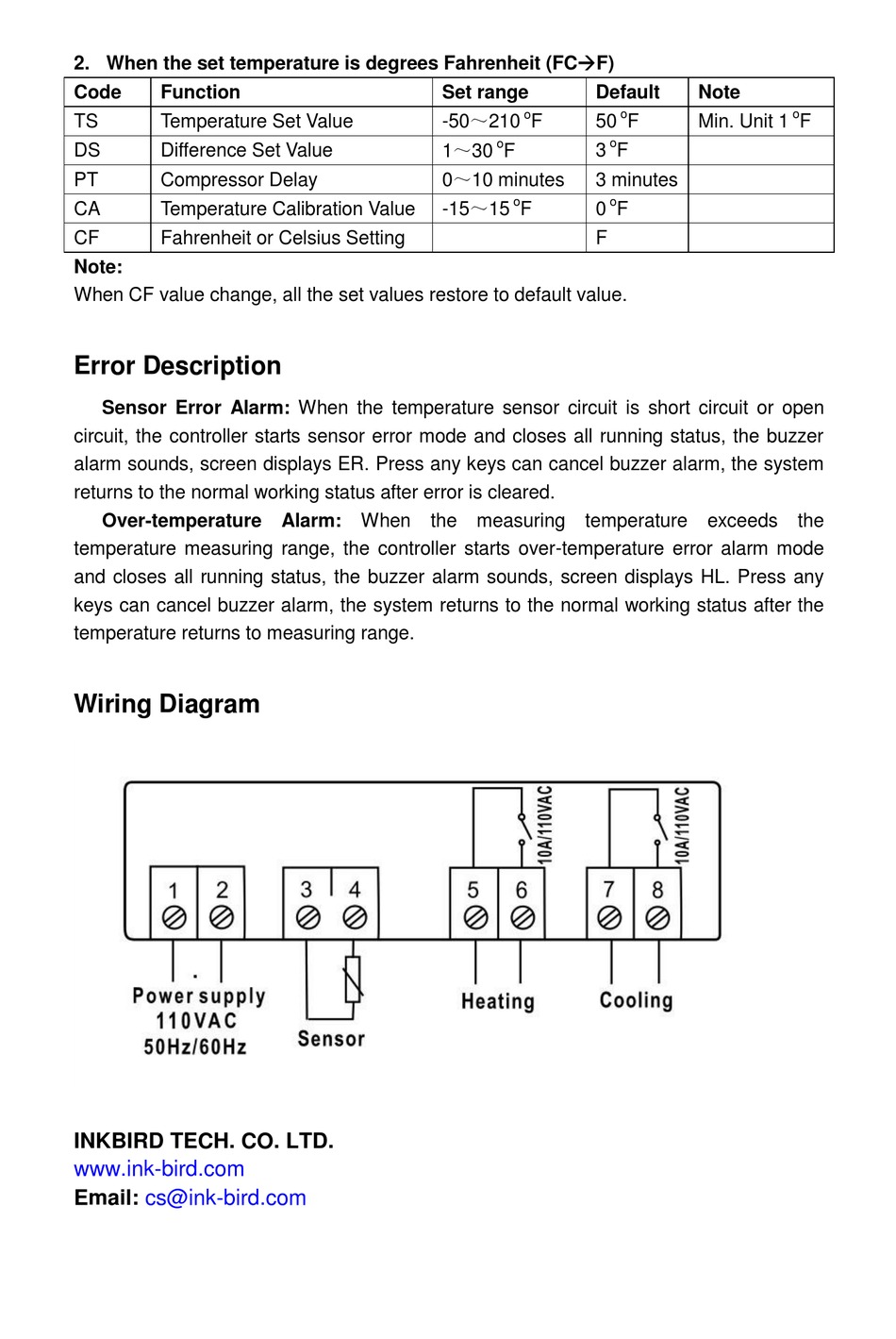

Wiring Diagram

INKBIRD TECH. CO. LTD.
www.ink-bird.com
Email: cs@ink-bird.com
Set range Default
o
-50～210 F 50
o o
3
1～30 F
0～10 minutes 3 minutes
o o
-15～15 F 0
F
Note
o
F Min. Unit 1
F
F
o
F
