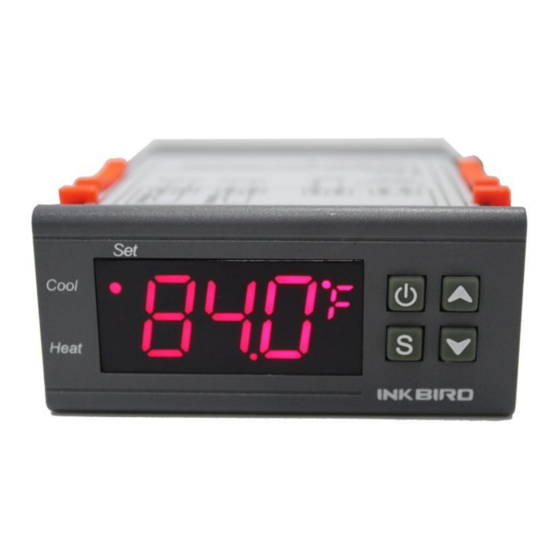

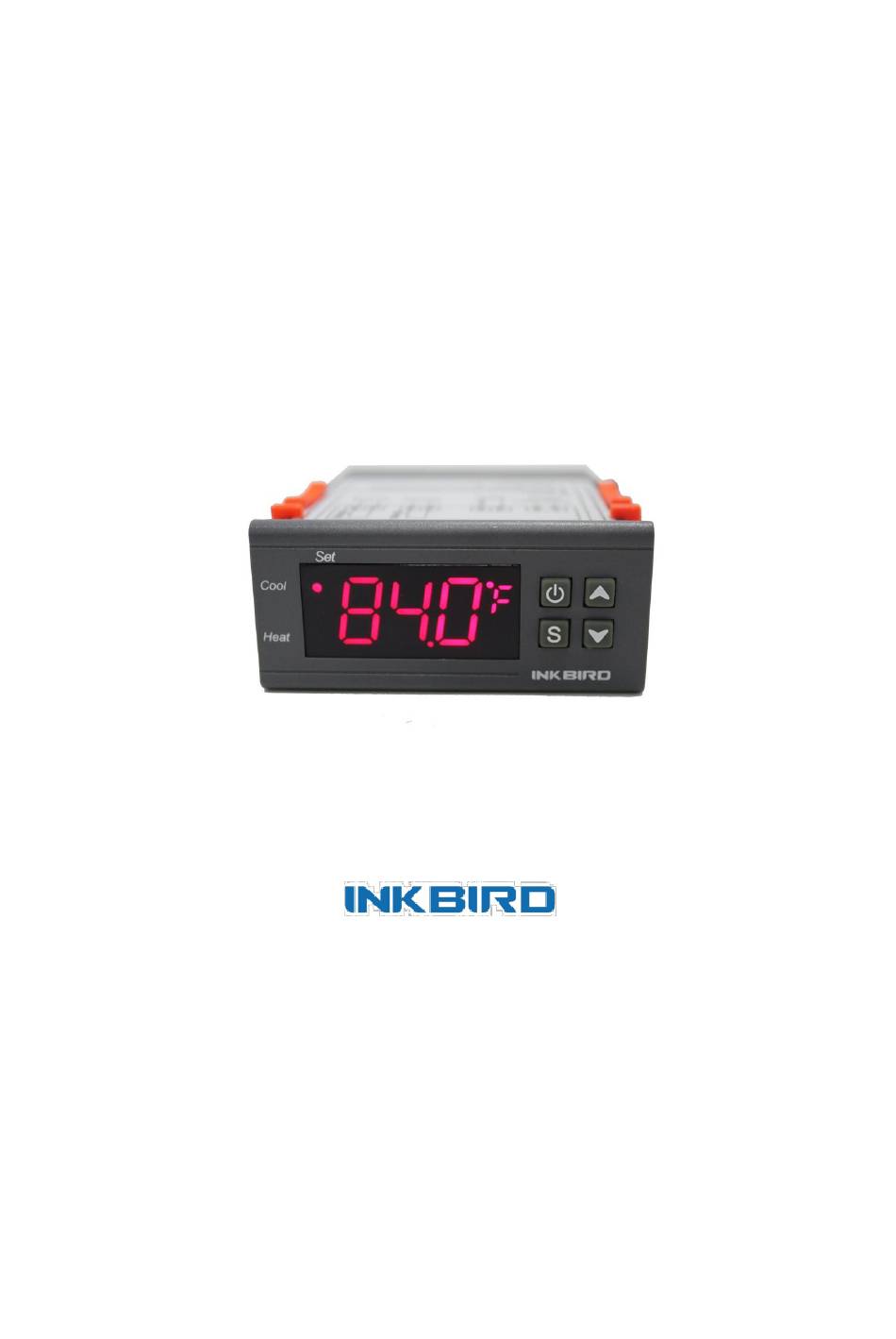

All-Purpose Temperature Controller
ITC-1000F
User Manual
Version 1.0s
Inkbird Tech. Co., Ltd.
Copyright
©
Copyright
2016 Inkbird Tech. Co., Ltd. All rights reserved. No part of this document may be reproduced
without prior written permission.
Disclaimer
Inkbird has made every effort to ensure that the information contained in this document is accurate and
complete; however, the contents of this document are subject to revision without notice. Please contact
Inkbird to ensure you have the latest version of this document.
Advertisement
Table of Contents
Related Manuals for Inkbird ITC-1000F
Summary of Contents for Inkbird ITC-1000F
- Page 1 Disclaimer Inkbird has made every effort to ensure that the information contained in this document is accurate and complete; however, the contents of this document are subject to revision without notice. Please contact Inkbird to ensure you have the latest version of this document.
-
Page 2: Table Of Contents
2. Specification ......................4 Main features ..................... 4 Mounting dimension .................... 4 3. Wiring Diagram ....................5 3.1 ITC-1000F-110V ................... 5 3.2 ITC-1000F-220V ................... 5 3.3 ITC-1000F-12V ..................... 5 4. Keys Instruction ....................6 5. Key Operation Instruction ..................6 5.1 Check Parameter ................... -
Page 3: Safety Precautions
Always consider the application conditions and use the output relays within their rated load and electrical life expectancy. The life expectancy of output relays varies considerably with the output load and switch conditions. Inkbird Tech. Co., Ltd. www.ink-bird.com... -
Page 4: Specification
Power Supply 110Vac/220Vac 50Hz/60Hz, 12Vdc Power Consumption <3W Sensor NTC Sensor Relay Contact Capacity Cooling (10A/250VAC)/ Heating (10A/250VAC) Ambient Temperature C - 60 Storage Temperature C - 75 Relative Humidity 20-85% (No Condensate) Warranty 1 Year Inkbird Tech. Co., Ltd. www.ink-bird.com... -
Page 5: Wiring Diagram
Sensor down-lead and power wire should be kept a proper distance 3.3 ITC-1000F-12V Note: Strictly distinguish interface of relay,sensor and power Strictly distinguish connection of sensor and power Sensor down-lead and power wire should be kept a proper distance Inkbird Tech. Co., Ltd. www.ink-bird.com... -
Page 6: Keys Instruction
User can set the other functions as above steps. In any status, press “ ” key to save the parameter modified value, and return to the normal temperature value. Inkbird Tech. Co., Ltd. www.ink-bird.com... -
Page 7: Operating Instruction
If the measuring temperature ≥ temperature set value, the heat indicator lamp turns off, and the heating relay is disconnected. Inkbird Tech. Co., Ltd. www.ink-bird.com... -
Page 8: Menu Instruction
Temperature Set Value Min. Unit 1 1～30 Difference Set Value 0～10 minutes Compressor Delay 3 minutes -15～15 Temperature Calibration Value Fahrenheit or Celsius Setting Note: When CF value change, all the set values restore to default value. Inkbird Tech. Co., Ltd. www.ink-bird.com... -
Page 9: Error Description
HL. Press any keys can cancel buzzer alarm, the system returns to the normal working status after the temperature returns to measuring range. Inkbird Tech. Co., Ltd. www.ink-bird.com... -
Page 10: Technical Assistance And Warranty
8.2 Warranty INKBIRD TECH. C.L. warrants this thermostat for one years from the date of purchase when operated under normal condition by the original purchaser (not transferable), against defects caused by INKBIRD’s workmanship or materials. This warranty is limited to the repair or replacement, at INKBIRD’s discretion, of all or part of the thermostat.
