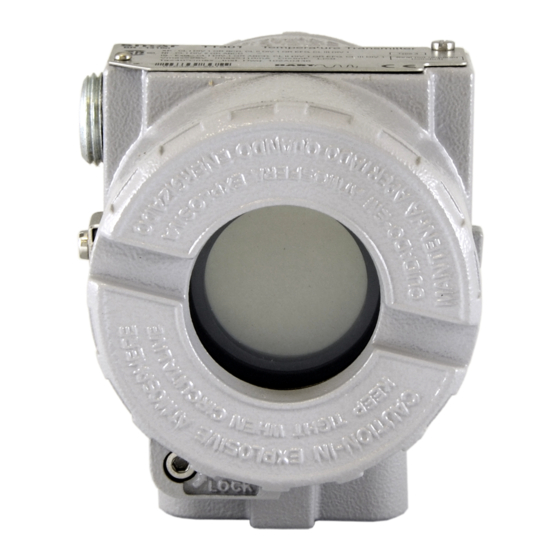

Intelligent temperature transmitter with control capability optional
Hide thumbs
Table of Contents

Advertisement

Quick Links

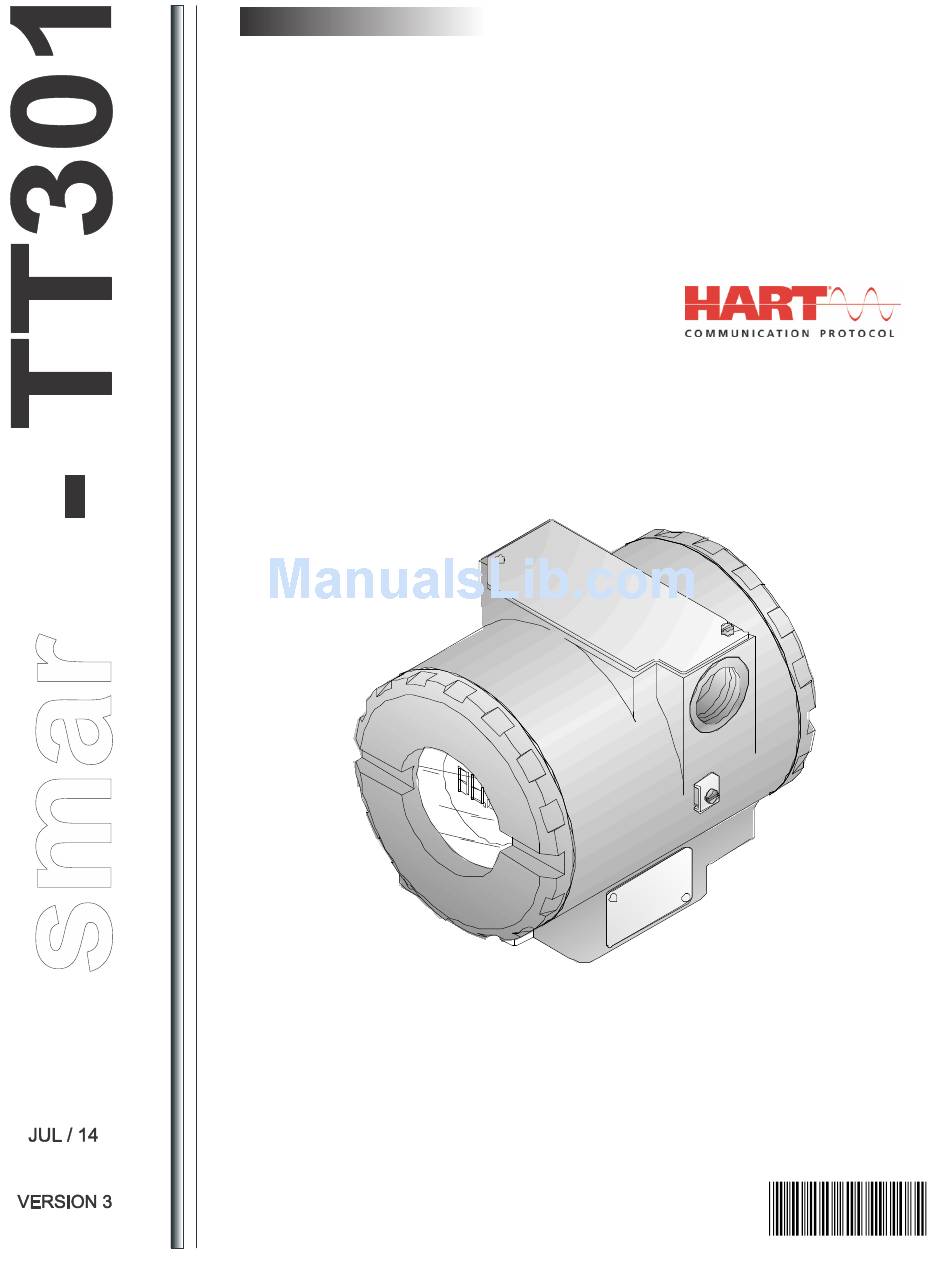

OPERATION & MAINTENANCE
INSTRUCTIONS MANUAL
Intelligent Temperature Transmitter
with Control Capability Optional
TT301
T T 3 0 1 M E

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TT301 and is the answer not in the manual?

Questions and answers

Related Manuals for SMAR TT301

Summary of Contents for SMAR TT301

  • Page 1 OPERATION & MAINTENANCE INSTRUCTIONS MANUAL Intelligent Temperature Transmitter with Control Capability Optional TT301 T T 3 0 1 M E...
  • Page 2 www.el-scada.ru...
  • Page 3 Introduction INTRODUCTION The TT301 is a transmitter mainly intended for measurement of temperature using RTDs or thermocouples, but can also accept other sensors with resistance or mV output such as: pyrometers, load cells, resistance position indicators, etc. The digital technology used in the TT301...
  • Page 4 Smar provides specific training to instruct and qualify such professionals. However, each country must comply with the local safety procedures,...

  • Page 5: Table Of Contents

    TRIM ......................................3.11 ALARM ......................................3.12 ALARM CONFIGURATION ................................. 3.12 ONLINE MULTIDROP OPERATION ............................3.12 CONFIGURATION TT301 FOR MULTIDROP ..........................3.13 MULTIDROP MODE CONFIGURATION ............................ 3.13 SECTION 4 - PROGRAMMING USING LOCAL ADJUSTMENT ................. 4.1 THE MAGNETIC TOOL ................................4.1 RERANGING USING THE LOCAL ZERO AND SPAN ADJUSTMENTS IN SIMPLE MODE ............
  • Page 6 TT301 – Operation & Maintenance Instruction Manual SECTION 6 - TECHNICAL CHARACTERISTIC ......................6.1 ORDERING CODE ..................................6.5 APPENDIX A - CERTIFICATIONS INFORMATION ....................A.1 EUROPEAN DIRECTIVE INFORMATION ........................... A.1 OTHER CERTIFICATIONS ................................A.1 IP68 REPORT: ......................................A.1 HAZARDOUS LOCATIONS CERTIFICATIONS .......................... A.1 NORTH AMERICAN CERTIFICATIONS ..............................
  • Page 7 Installation Flowchart Installation Flowchart Start Was the transmitter configured on the bench to match the application? Configure the transmitter (Section Check the area classification Section 3 - Configuration) and its practices. Configure the measuring range to 0% (4mA) and 100% (20mA) Install the transmitter preferably (Section 3 - Configuration) on weather- protected areas.
  • Page 8 TT301 – Operation & Maintenance Instruction Manual VIII...

  • Page 9: Section 1 - Installation

    Section 1 INSTALLATION General The overall accuracy of temperature and other measurements depends on several variables. Although the transmitter has an outstanding performance, proper installation is essential, in order to maximize its performance. Among all factors, which may affect transmitter accuracy, environmental conditions are the most difficult to control.

  • Page 10: Electronic Housing

    TT301 – Operation & Maintenance Instruction Manual WARNING Do not remove the graphite grease from the covers, or they may jam. Electronic Housing Humidity is fatal to electronic circuits. In areas subjected to high relative humidity, the O-rings for the electronics cover must be correctly placed.

  • Page 11: Loop Connections

    Connection of the TT301 working as transmitter should be performed as in Figure 1.6. CONFIGURATOR Figure 1.5 – Wiring Diagram for the TT301 Working as Transmitter Connection of the TT301 working as a controller (Optional) should be as indicated in Figure 1.5.
  • Page 12 Figure 1.6 – Wiring Diagram for the TT301 Working as Controller Connection of the TT301 in multidrop configuration should be done as in Figure 1.6. Note that a maximum of 15 transmitters can be connected on the same line and that they should be connected in parallel.
  • Page 13 Figure 1.8 – Load Curve The sensor should be connected as per Figure 1.8. WARNING When operating with two sensors, the sensors can not be both grounded. At least one has to be not grounded for proper operation of TT301.
  • Page 14 TT301 – Operation & Maintenance Instruction Manual 2 - WIRE RTD 3 - WIRE RTD 4 - WIRE RTD OR OHM INPUT OR OHM INPUT OR OHM INPUT THERMOCOUPLE OR DIFFERENTIAL THERMOCOUPLE DIFFERENTIAL RTD MILIVOLT INPUT OR MILIVOLT INPUT OR OHM INPUT...

  • Page 15: Installation In Hazardous Areas

    In Explosion-Proof installations the cable entries must be connected or closed using metal cable gland and metal blanking plug, both with at least IP66 and Ex-d certification. The standard plugs provided by Smar are certified according to CEPEL certificate. If the plug needs to be replaced, a certified plug must be used.
  • Page 16 TT301 – Operation & Maintenance Instruction Manual...

  • Page 17: Section 2 - Operation

    Section 2 OPERATION The TT301 accepts signals from mV generators such as thermocouples or resistive sensors such as RTDs. The criterion is that the signal is within the range of the input. For mV, the range is -50 to 500 mV and for resistance, 0 to 2000 Ohm.
  • Page 18 The TT301, in the transmitter mode, shows failure indication at 3.6 mA if configured for low signal failure; at 21 mA, if configured for high signal failure; 3.8 mA in the case of low saturation; 20.5 mA in the case of high saturation and measurements proportional to the applied temperature in the range between 3.8 mA and 20,5 mA.
  • Page 19 Operation ohm / mV C TEMP. SENSOR INPUT DIGITAL FILTER DAMPING INPUT SPAN TRIM TYPE / CONNECTION STANDARD SENSOR UNIT SPECIAL LINEARIZATION TABLE SENSOR & CJ COMPENSATION LRL / URL / MIN PV % RANGING BURNOUT PAUSE TIME PV % RESET GENERATOR TI min...

  • Page 20: Functional Description - Software

    TT301 – Operation and Maintenance Instruction Manual Functional Description - Software Refer to the block diagram (Figure 2.2). The function of each block is described below. Input Calculates the actual mV or Ohm from the value sensed by the input circuitry.

  • Page 21: Temperature Sensors

    This is called cold junction compensation, and is done automatically by the TT301, which has a temperature sensor at the sensor terminals for this purpose. Secondly, if the thermocouple wires are not used all the way to the terminals of the transmitter (e.g. copper wire is used...
  • Page 22 TT301 – Operation and Maintenance Instruction Manual In a 2-wire connection, the voltage V2 is proportional to the RTD resistance plus the resistance of the wires. V2 = [RTD + 2 TRANSMITTER Figure 2.3 – Two-Wire Connection In order to avoid the resistance effect of the connection wires, it is recommended to use a 3-wire connection (see Figure 2.4) or a 4-wire connection (see Figure 2.5).

  • Page 23: The Display

    The different fields and status indicators are explained in Figure 2.7. Monitoring During normal operation, the TT301 is in the monitoring mode. In this mode, indication alternates between the primary and secondary variable as configured in DISPLAY. See Figure 2.8.

  • Page 24: Alarm

    TT301 – Operation and Maintenance Instruction Manual Figure 2.7 – Display * PID IS OPTIONAL INDICATES THAT THE DISPLAYED INDICATES ACTIVE ALARM HAS NOT YET BEEN ACKNOWLEDGED SETPOINT GENERATOR * INDICATES ACTIVE SPECIAL SENSOR LINEARIZATION INDICATE PID CONTROLLER MODE *...
  • Page 25 Operation ALARM 1 ALARM 2 Figure 2.9 – Typical Alarm Condition Display...
  • Page 26 TT301 – Operation and Maintenance Instruction Manual 2.10...

  • Page 27: Section 3 - Configuration

    4 mA. If the identification mechanism is done via Tag, the transmitters may be addressed at “0” and control their current output, even on a multidrop configuration. The TT301 may be configured both for Transmitter and Controller and the HART addressing may be used as follows: ...
  • Page 28 TT301 - Operation & Maintence Instruction Manual Figure 3.1 - Configurator Figure 3.2 – CONF401 Screen...

  • Page 29: Configuration Resources

    Programming Using Hand-Held Terminal Configuration Resources Through the HART configurators, the TT301 firmware allows the following configuration resources to be accessed:  Transmitter Identification and Manufacturer Data;  Primary Variable Trim – Temperature;  Secondary Variable Trim – Terminal Temperature;...

  • Page 30: Identification And Manufacturing Data - Info

    They are: Manufacturer, Type of equipment, Serial Number and Transmitter Firmware Version, HART protocol Version and Hardware Revision. The following information are available for the TT301 transmitter identification and manufacturer data:  TAG – Field with 8 alphanumerical characters for transmitter identification;...

  • Page 31: Sensor Types - Sensor

    Contact Smar in case you forgot or lost your password. Sensor Types - Sensor It configures the TT301 input for the type of sensor in use and its connecting mode. The types covered in this manual are: RTD: Temperature Resistant Detector...

  • Page 32: Conection And Work Model

    If one of them to ruptures, the burnout indication will be showed. Backup: TT301 works with the reading of the first sensor (between 2 and 4 terminals). If this sensor brokes, the second sensor (between 3 and 4 terminals) will replace it and show the process variable reading.

  • Page 33: Pid

    Programming Using Hand-Held Terminal The sensor typical curve may be scheduled on the TT301 EEPROM memory as a 16-point table. These tables are usually supplied by the sensor manufacturer, but may also be obtained at a lab test. WARNING The special sensor function may not be used when the setpoint generating function is being used and vice-versa.

  • Page 34: Monitoring - Monit

    TT301 - Operation & Maintence Instruction Manual PV, SP, MV and Error Readings – Provides real-time variable value. SP Tracking – When in MANUAL, the setpoint follows the PV. When the controller is switched to AUTO, the last PV value before the switch will be regarded as SP.

  • Page 35: Calibrating The Tt301

    PV=0 % and upper value to PV=100 %. Calibration Without Reference The TT301 may be configured to supply 4 to 20 mA, the equivalent to the temperature limits on the user’s application, without the need to connecting a reference calibrating generator on its terminals.

  • Page 36: Calibration With Reference

    UPPER VALUE = 100 Ohm Example: When measuring resistance the TT301 is calibrated as follows: After the installation is done, the potentiometer (input sensor) was found to have a 5 Ohm residual resistance when its indicator was on a zero position.

  • Page 37: Alarm

    4 mA output. If the signal is 100 percent, the output must be 20 mA. Differences may occur between the SMAR standard current and the plant standard. In this case, the current TRIM adjustment should be used.

  • Page 38: Configuration Tt301 For Multidrop

    TT301 - Operation & Maintence Instruction Manual The TT301 is produced with the address equal to zero, in a point-to-point operational mode. The transmitter communicates with the configurator by overlaying the communication on the 4-20 mA signals. To operate in multidrop mode, the transmitter address must switch to a 1 to 15. This change deactivates the 4-20 mA analog output by assuming the fixed value equal to 4 mA (TRM mode), or maintains the 4-20 mA variable when the equipment is configured for PID mode.

  • Page 39: Section 4 - Programming Using Local Adjustment

    ADJUSTMENT The Magnetic Tool Smar's magnetic tool is the second man-machine interface; it compromises the advantage of the powerful Smar Configurator and the convenience of the "good-old" tool. If the transmitter is fitted with a display, and is configured for complete - local - adjustment (using internal jumper) the magnetic tool is almost as powerful as the Configurator, eliminating the need for a Configurator in most basic applications.

  • Page 40: Reranging Using The Local Zero And Span Adjustments In Simple Mode

    TT301 - Operation and Maintenance Instruction Manual Transmitter mode: Z - It is used to select the Lower Range Value. S - It is used to select the Upper Range Value. They work exactly as the adjustment with reference of the Configurator controller mode for transmitters with digital display.

  • Page 41: Complete Local Adjustment

    Programming Using Local Adjustment Figure 4.3 - Local Adjustment Programming Tree – Main Menu As the reranging with reference, the span is maintained. In case you want to change the span, proceed as follows:  Apply the Upper Value, signal. ...

  • Page 42: Operation [Oper]

    TT301 - Operation and Maintenance Instruction Manual Operation [OPER] Figure 4.4 – Local Adjustment Operation Tree Z: Moves to the next branch (BATCH). S: Enters the OPERATION branch, starting with function AUTO/MANUAL. Auto/Manual (A/M) Z: Moves to the SETPOINT INCREASE function.

  • Page 43: Batch [Batch]

    Programming Using Local Adjustment Acknowledge (ACK) Z: Moves the SAVE function. S: Acknowledges all alarms. Save (SAVE) Z: Moves to ESCAPE of the operation menu. S: Saves the setpoint and manual output values in the transmitter EEPROM, for use after power-on. Escape (ESC) Z: Moves to the AUTO/ MANUAL function.

  • Page 44: Tuning [Tune]

    TT301 - Operation and Maintenance Instruction Manual Reset (RESET) Z: Moves to the TIME INCREASE function. S: Resets the time register of the setpoint generator to 0. Time (TIME) Z: Moves to the time decrease function. S: Increases the time register for the setpoint generator until the magnetic tool is removed or 19999 min.
  • Page 45 Programming Using Local Adjustment Kp - Adjust (KP) Z: Moves to the proportional gain decrease function. S: Increases the proportional gain until the magnetic tool is removed or 100 is reached. Z: Moves to the TR_ADJUSTMENT function. S: Decreases the proportional gain until the magnetic tool is removed or 0.0 is reached.
  • Page 46 TT301 - Operation and Maintenance Instruction Manual Save (SAVE) Z: Moves to the ESCAPE to TUNING menu. S: Saves the KP, TR and TD constants in the transmitter EEPROM. Escape (ESC) Z: Moves to the KP-ADJUSTMENT function. S: Escapes to the MAIN menu.

  • Page 47: Configuration [Conf]

    Programming Using Local Adjustment Configuration [CONF] Figure 4.7 – Local Adjustment Configuration Tree...
  • Page 48 TT301 - Operation and Maintenance Instruction Manual Z: Selects ESCAPE of the monitoring mode. S: Enters the CONFIGURATION branch, starting with function UNIT. Unit (UNIT) Z: Moves to the DISPLAY-1 function. S: Starts selection of engineering unit for process variable and setpoint indication.
  • Page 49 Programming Using Local Adjustment NOTE In TRANSMITTER mode, only PV%, CU, PV and "none" are selectable. Display 2 (LCD_2) Z: Moves to the ZERO ADJUST function. S: Starts selection of variable to be indicated as secondary display. The procedure for selection is the same as for DISPLAY_1, above. Lower Range Value Adjustment without Reference (LRV) Z: Moves to the LRV decrease function.
  • Page 50 TT301 - Operation and Maintenance Instruction Manual Z: Moves to the SPAN decrease function. S: Decreases the Upper Value (Increases Output) until the magnetic tool is removed or the minimum for the Upper Value is reached. Z: Moves to the SENSOR function.
  • Page 51 Programming Using Local Adjustment OHMS & RTD CONNECTION DISPLAY DESCRIPTION 2 WIRE 2 - wire 3 – wire 3 WIRE 4 – wire 4 WIRE Differential DIFF - escape - THERMOCOUPLE - TYPE DISPLAY DESCRIPTION DISPLAY DESCRIPTION B_NBS NBS type B WR26 ASTM W5Re/W25Re NBS type E...
  • Page 52 TT301 - Operation and Maintenance Instruction Manual ESCAPE [ESC] Z: Selects OPERATION branch. S: Escapes to MONITOR mode. 4.14...

  • Page 53: Section 5 - Maintenance Procedures

     Other device using the line. LINE BUSY  Software version not compatible between Configurator and transmitter.  Configurator is trying to carry out a TT301 specific command in a CMD NOT IMPLEMENTED transmitter from another manufacturer.  Transmitter carrying out on important task. e.g., Local TRANSMITTER BUSY Adjustment.

  • Page 54: Troubleshooting With Transmitter

     Check for shorts or ground loops.  Power Supply  Check power supply output. The voltage at the TT301 terminals must be between 12 and 45 Vdc, and the ripple less than 0.4V.  Electronic Circuit Failure  Check the main board for defect by replacing it with a spare one.

  • Page 55: Disassembly Procedure

    Check if the sensor is correctly connected to the TT301 terminal block.  Check if the sensor signal is reaching the TT301 terminal block by measuring it with a multimeter at the transmitter-end. For mV and thermocouples test can be done with connected and disconnected to the transmitter.

  • Page 56: Reassembly Procedure

    Returning Materials Should it become necessary to return the transmitter and/or Configurator to SMAR, simply contact your local agent or SMAR office, informing the defective instrument's serial number, and return it to our factory. In order to expedite analysis and solution of the problem, the defective item should be returned with a description of the failure observed, with as much details as possible.
  • Page 57 16 Mbytes Palm Handheld, Including HPC301’s initialization and installation software. Palm* HPC301* HART® HPI311-M5P for the Palm, including the configuration package for the Smar and generic transmitters. HPI311-M5P* HART® interface. * For equipment updates and HPC301 software, just check: http://www.smarresearch.com.
  • Page 58 TT301 - Operation and Maintenance Instruction Manual Figure 5.2 – Four Possible Positions of the Display...
  • Page 59 Polyester Black Without Painting Blue Safety Base Epóxi – Electrostatic Paintig COD. Electronic Housing Type Default Smar (4-20 mA - 2 Filtros) Similar Default BASF(4-20 mA-2 Filter+Prot. ZN non-loosening) Default 0 A 20 (0 A 20 mA - 4 Filter) 400-1306...
  • Page 60 TT301 - Operation and Maintenance Instruction Manual...

  • Page 61: Section 6 - Technical Characteristic

    Hazardous Area incendive (FM) Certifications Authorized representative in European Community Smar Gmbh-Rheingaustrasse 9-55545 Bad Kreuzanach EMC Directive (2004/108/EC) – Electromagnetic Compatibility The EMC test was performed according to IEC standard: IEC61326-1:2006, IEC61326-2-3:2006, IEC61000-6-4:2006, IEC61000-6-2:2005. For use only in industrial environment.
  • Page 62 TT301 – Operation and Maintenance Instruction Manual Performance Specifications Ohms (0 to 400Ω), RTD (DIN: Ni120; IEC: Pt50, Pt100; JIS: Pt50, Pt100): ± 0.03% of the input resistance or 0.04 Ω whichever is greater; Ohms (0 to 2000Ω), RTD (IEC: Pt500), RTD (IEC: Pt1000): ± 0.03% of the input resistance or 0.2 Ω whichever is greater;...
  • Page 63 Technical Characteristics 2, 3 or 4 wires ° MINIMUM C DIGITAL SENSOR ° ° TYPE RANGE RANGE SPAN °C ACCURACY* Cu10 ± 1.0 Edison Curve #7 Ni120 ± 0.1 IEC 751-83 (0.00385) Pt50 -200 -328 1562 ± 0.25 IEC 751-83 (0.00385) Pt100 -200 -328...

  • Page 64: Ordering Code

    TT301 – Operation and Maintenance Instruction Manual Ordering Code MODEL TEMPERATURE TRANSMITTER COD. Local Indicator (1) Without Indicator With Digital Indicator COD. Mounting Bracket Without Bracket 316 SST Bracket Flat, 304 SST bracket and 316 SST accessories Carbon Steel Bracket Carbon Steel Bracket with 316 SST Fasteners COD.

  • Page 65: Appendix A - Certifications Information

    CERTIFICATIONS INFORMATION European Directive Information Authorized representative in European Community Smar Gmbh-Rheingaustrasse 9-55545 Bad Kreuzanach EMC Directive (2004/108/EC) – Electromagnetic Compatibility The EMC test was performed according to IEC standard: IEC61326-1:2006, IEC61326-2- 3:2006, IEC61000-6-4:2006, IEC61000-6-2:2005. For use only in industrial environment.

  • Page 66: European Certifications

    Groups A, B, C and D; Class II, Division 1, Groups E, F and G; Class III, Division 1 • Intrinsically safe with entity parameters: Vmax = 28 V Imax = 110 mA Ci = 5 nF Li = 0 H, when connected through CSA Certified Safety Barriers as per Smar Installation Drawing 102A- 0436.
  • Page 67 Certifications Information NEMKO and DMT CEPEL...
  • Page 68 Operation and Maintenance Instruction Manual – TT301 WITHOUT APPROVAL  Identification for hazardous locations for use in saline atmosphere: NEMKO and DMT...
  • Page 69 Certifications Information CEPEL...

  • Page 70: Control Drawing

    Operation and Maintenance Instruction Manual – TT301 Control Drawing Factory Mutual (FM)
  • Page 71 Certifications Information NEMKO...
  • Page 72 Operation and Maintenance Instruction Manual – TT301 Canadian Standards Association (CSA)
  • Page 73 FAILURE DESCRIPTION OR BAD OPERATION (Please, describe the behavior of the fail, if it is repetitive, how it exactly happens, and so on.) NOTES For warranty or non-warranty repair, please contact your representative. Further information about address and contacts can be found on www.smar.com/contactus.asp.
  • Page 74 SRF – Service Request Form...
