Operating
Instructions
Continued

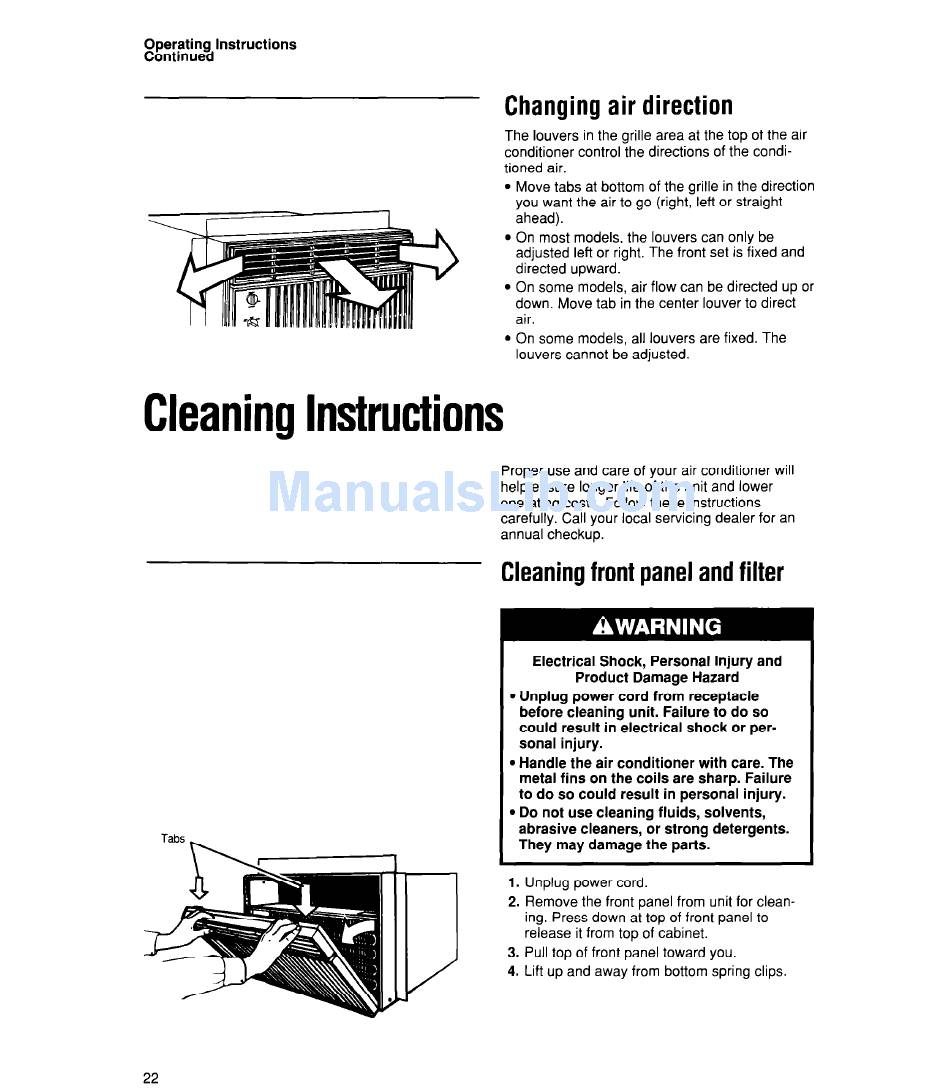

Changing air direction
The louvers in the grille area at the top of the air
conditioner control the directions of the condi-
tioned air.
l
Move tabs at bottom of the grille in the direction
you want the air to go (right, left or straight
ahead).
l
On most models, the louvers can only be
adjusted left or right. The front set is fixed and
directed upward.
l
On some models, air flow can be directed up or
down. Move tab in the center louver to direct
air.
l
On some models, all louvers are fixed. The
louvers cannot be adjusted.
Cleaning Instructions
Proper use and care of your air conditioner will
help ensure longer life of the unit and lower
operating costs. Follow these instructions
carefully. Call your local servicing dealer for an
annual checkup.
Cleaning front panel and filter
Electrical
Shock, Personal
Injury and
Product
Damage Hazard
l
Unplug power cord from receptacle
before cleaning
unit. Failure to do so
could result in electrical
shock or per-
sonal injury.
l
Handle the air conditioner
with care. The
metal fins on the coils are sharp. Failure
to do so could result in personal
injury.
l
Do not use cleaning
fluids, solvents,
abrasive
cleaners,
or strong detergents.
They may damage the parts.
1. Unplug power cord.
2. Remove the front panel from unit for clean-
ing. Press down at top of front panel to
release it from top of cabinet.
3. Pull top of front panel toward you.
4. Lift up and away from bottom spring clips.
