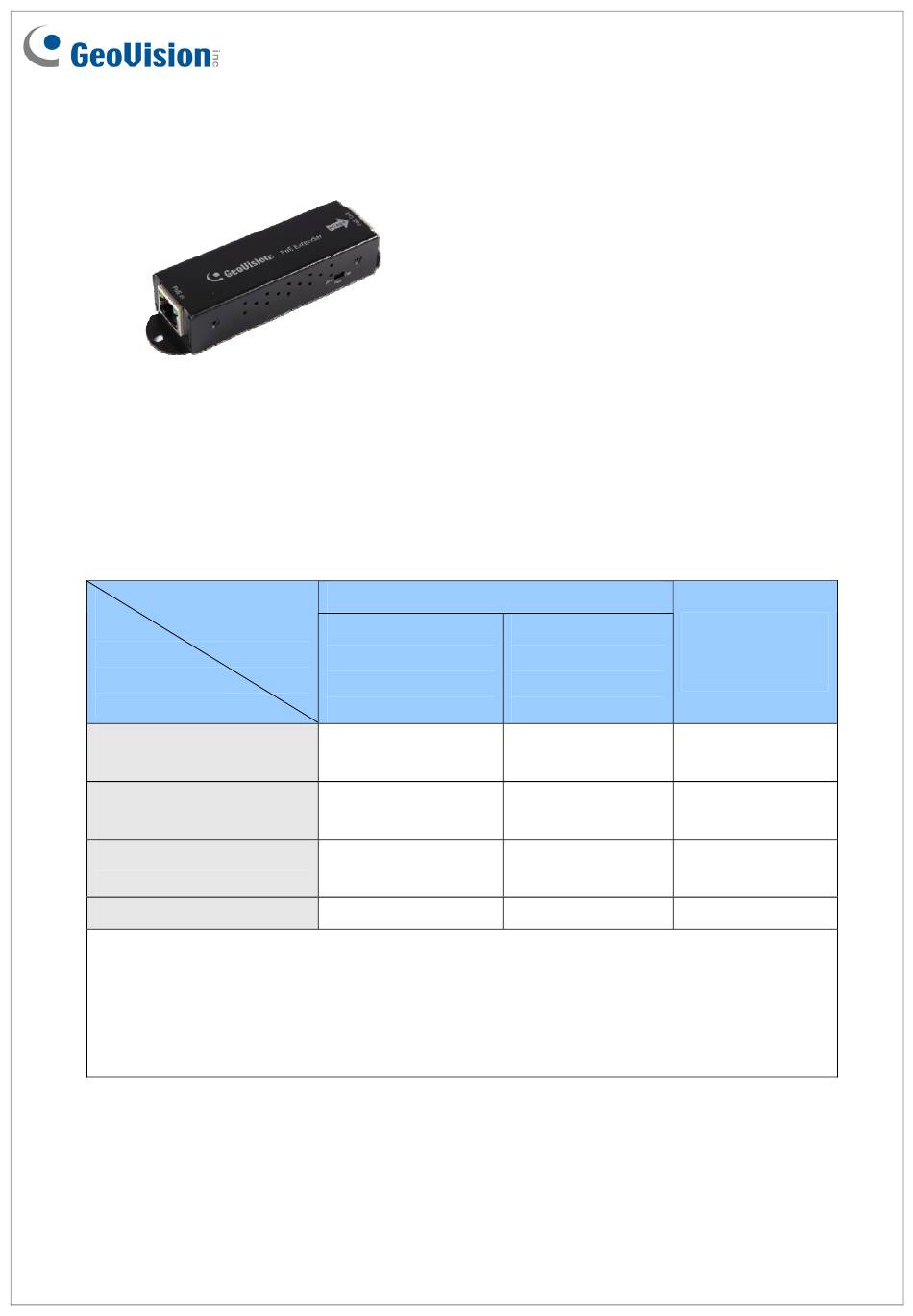

GV-POEX0100

Requirements and Limitations

The maximum distance allowed between a PoE switch and a GV-IP Camera depends on the
PoE switch type, PoE power output of the connected device (PD) and the type of power
supply. These can be summarized as below.
GV-IP Camera Powered by PoE
Brand & Model
PD of GV-IP Camera
PD < 6.49 W
(IEEE 802.3af)
PD 6.5 W ~ 12.95 W
(IEEE 802.3af)
PD 13 W ~ 25.5 W
(IEEE 802.3at)
PD > 25.5 W
Note:
1. Each GV-POEX0100 extends another 100 m (328.08 ft) between the PoE switch and
the GV-IP Camera. Therefore, a distance of 200 m (656.17 ft) requires one GV-
POEX0100 and 400 m (1312.34 ft) requires three etc.
2. GV-POEX0100 can only be connected using CAT-5e cables, TIA/EIA-568-B, with the
maximum DC resistance of 9.38 ohms/100 m.
September 10, 2021
One-Port PoE Extender
GeoVision
GV-POE0801 / 0811
GV-POE0812
GV-POE1601 / 1611
GV-POE2401 / 2411
600 m (1968.5 ft)
400 m (1312.34 ft)
200 m (656.17 ft)
-
1
GV-POE0400
GV-POE0410-E
GV-POE0800
GV-POE0810
400 m (1312.34 ft)
400 m (1312.34 ft)
200 m (656.17 ft)
-
-
Third-Party PoE
Switches
(IEEE 802.3at)
200 m (656.17 ft)
-
-

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the GV-POEX0100 Series and is the answer not in the manual?

Questions and answers

Summary of Contents for GeoVision GV-POEX0100 Series

  • Page 1 The maximum distance allowed between a PoE switch and a GV-IP Camera depends on the PoE switch type, PoE power output of the connected device (PD) and the type of power supply. These can be summarized as below. GV-IP Camera Powered by PoE GeoVision Brand & Model Third-Party PoE GV-POE0801 / 0811...
  • Page 2  GV-FE3403 / 5303  GV-VD2540-E / 5340-E  GV-SD220 / 220-S GV-POEX0100 is only compatible with the following GeoVision PoE switches of the indicated firmware versions:  GV-POE0801 / 1601 / 2401 (V1.03 or later)  GV-POE0811 / 1611 / 2411 (V1.01 or later) Packing List 1.
  • Page 3 Overview Name Description Connect to the Power Sourcing Equipment (PSE) or the PoE PSE Port switch side. PD Port Connect to the Powered Device (PD) or the GV-IP Camera side. Switch it to ON to enable the PoE function; switch it to OFF to DIP Switch transmit data without supplying the power.
  • Page 4 Setting Up GV-POEX0100 Connect the PSE port of the extender to a power sourcing equipment and the PD port to the powered device using CAT-5e cables. Make sure the DIP switch of every PoE extender is turned to ON to allow for both power and data transmission. This can be illustrated as below: 100 m 100 m 100 m...
