Summary of Contents for Trikdis G10T
-
Page 1: User Manual

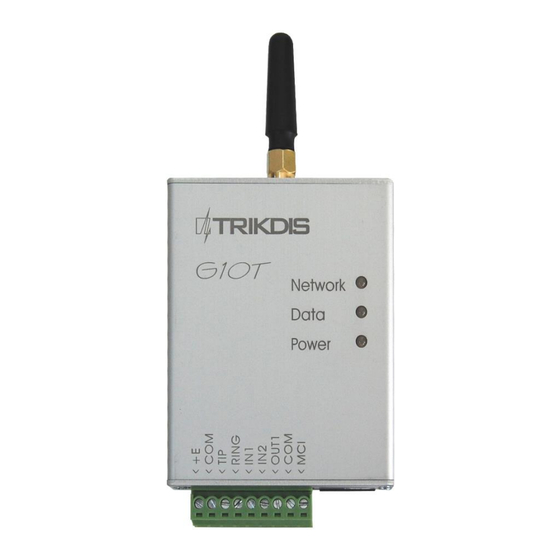

GSM communicator G10T (v.2.3X) USER MANUAL UAB “TRIKDIS” Draugystės str. 17, LT-51229 Kaunas LITHUANIA E-mail: info@trikdis.lt Webpage: www.trikdis.lt... - Page 2 GSM communicator G10T v.2 Description GSM communicator can connect to any intruder alarm panel via its landline communicator and transmit messages to an alarm receiving centre (ARC) and/or to a mobile/WEB application. Messages are transmitted using GPRS, SMS via GSM network.
-
Page 3: Table Of Contents
The Device, when installed, does not diminish the probability of burglary, fire, intrusion or other breach of premises. UAB “TRIKDIS” is not responsible for burglary, fire or any other breach of Buyer’s and/or User’s premises and is not liable for any direct or indirect damages incurred thereof. ... -
Page 4: Communicator G10T Operating
If the module loses connection with both the primary and the backup IP addresses, the module can send information to ARC with SMS messages. If G10T loses communication with both primary and backup IP receiver then it will send Contact ID messages with encrypted SMS to SMS receiver (modem) at ARC. -
Page 5: Light Indication
GSM communicator G10T v.2 Light indication Operation Description Green ON Module has been connected to GSM network Network presents status of Yellow ON Message is being sent connection to GSM Green flashing Connecting to GSM network network Yellow flashing Number of yellow flashes represent GSM signal strength... -
Page 6: Setting Of Operating Parameters
GSM communicator G10T v.2 Wiring diagram Setting of operating parameters Communicator G10T operating parameters are set with computer program G10config. The program can be found in website www.trikdis.lt. Connect the communicator G10T with a computer using a USB cable. Download the USB driver file USB_COM.inf for MS Windows OS from the website www.trikdis.lt. - Page 7 G10T transfers messages of security control panel containing its ID number set in. Here is the section for setting ID number (0001-FFFF) for G10T in case to identify to which object belong messages generated by particular G10T. Set 4 symbol value;...
- Page 8 GSM communicator G10T v.2 SMS PING time Time interval according to which the module will send signals PING for polling SMS communication; Test time Time interval according to which the module will send messages Test. 6. The directory GPRS. Enter the parameters are needed for reporting to an alarm receiving centre (ARC):...
- Page 9 “+” (plus) sign; Name Choose by which tel. number G10T must send SMS after occurring event of particular type. Alarm/Restore Messages will be sent when the security system is alarmed/restored (events with E/R 1XX codes);...
-
Page 10: Protegus Service
Save the changes. c) Go to Settings tab. d) Tick "Arm/Disarm with PGM". Updating communicator firmware version When the manufacturer adds new features to the module G10T, firmware of the previously bought module can be updated: ©1997-2016 Trikdis www.trikdis.com... -
Page 11: Setting Of Configuration Remotely
Setting of configuration remotely In order to set module G10T operating parameters remotely a SMS message with the particular syntax must be sent by GSM number of SIM card put in the module G10T. When the module G10T receives this SMS message it opens GPRS communication session with software IPcom. -
Page 12: Firmware Version Upgrading Remotely
G10config windows. 5. After entering desirable values click the button Write [F6] on, the values to be set in the module G10T. Just close the program G10config and GPRS communication session closes too.
