- Page 1 GSM module G10T (v.2.3X) Installation manual TRIKDIS, JSC Draugystės st. 17, LT-51229 Kaunas Lithuania E-mail: info@trikdis.lt www.trikdis.lt...
-
Page 2: Table Of Contents
Table of Contents GSM module G10T ..................................3 Operating ....................................3 Outside view ....................................3 Module installation steps ................................4 Recommendations for programming of security control panel ....................4 Wiring diagram ................................... 5 Setting of operating parameters ..............................5 Updating module firmware version ............................9 Setting of configuration remotely............................... -

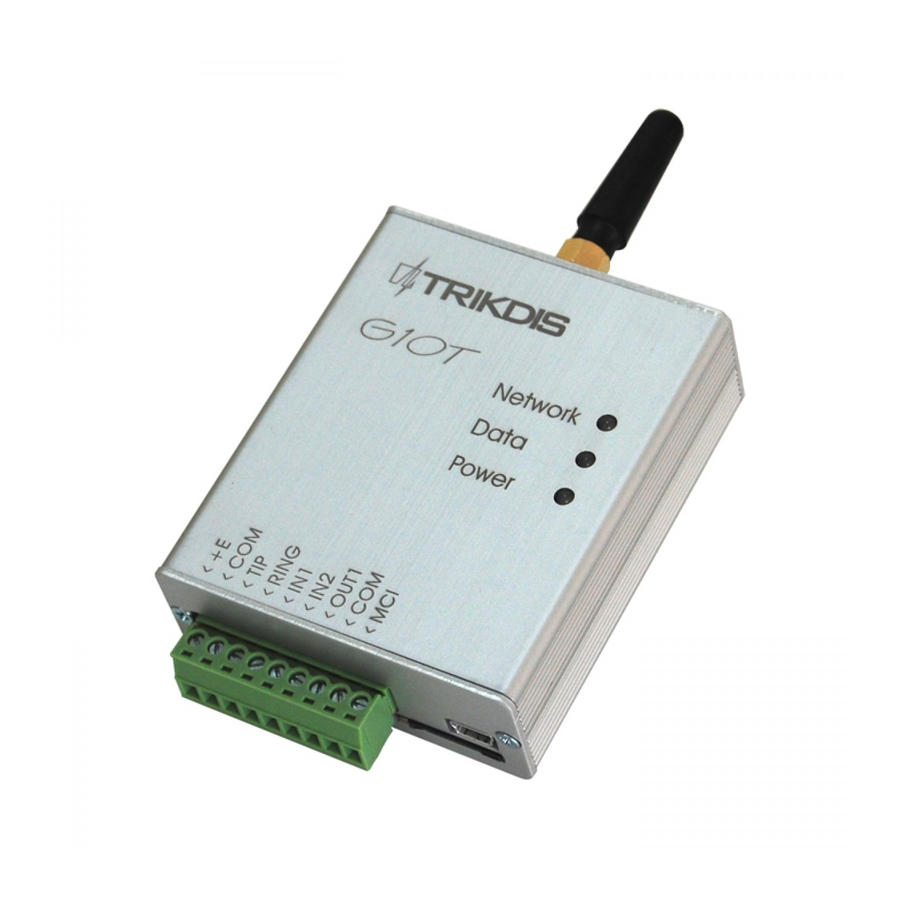

Page 3: Gsm Module G10T
Operating The module G10T is connected to security control panel contacts for connecting a telephone landline. In case of an event, the security control panel dials number 1234. Module G10T picks up the phone and receives control panel message. After receiving the message, the module transmits it to ARC through GSM connection channel set as primary. -
Page 4: Module Installation Steps
1. Enter the telephone numbers to which the security control panel will dial in case of an event. Telephone number of G10T is 1234. Set that this number would be dialled with DTMF tones. When control panel rings by this number, G10T picks up the phone will be ready to receive security control panel’s Contact ID report. -
Page 5: Wiring Diagram
Wiring diagram Setting of operating parameters Module G10T operating parameters are set with computer program G10config. The program can be found in website www.trikdis.lt. Connect the module G10T with a computer using a USB cable. Note: USB drivers must be installed in the computer. If the module is connected to a computer for the first time, MS Windows OS should open a Found New Hardware Wizard window for installing USB drivers. - Page 6 G10T transfers messages of security control panel containing its ID number set in. Here is the section for setting ID number (0001-FFFF) for G10T in case to identify to which object belong messages generated by particular G10T. Set 4 symbol value;...
- Page 7 The directory GPRS. Enter the parameters are needed for reporting to an alarm receiving centre (ARC): Primary reporting Select the primary communication channel in the list, through which the module will transmit messages to ARC. If GPRS is selected, enter the IP address or domain name and the port number of ARC in the corresponding boxes Server IP1 address or Domain and Port;...
- Page 8 “+” (plus) sign; Name Choose by which tel. number G10T must send SMS after occurring event of particular type. Alarm/Restore Messages will be sent when the security system is alarmed/restored (events with E/R 1XX codes);...
-
Page 9: Updating Module Firmware Version
Setting of configuration remotely In order to set module G10T operating parameters remotely a SMS message with the particular syntax must be sent by GSM number of SIM card put in the module G10T. When the module G10T receives this SMS message it opens GPRS communication session with software IPcom. -
Page 10: Firmware Version Upgrading Remotely
G10config windows. 5. After entering desirable values click the button Write [F6] on, the values to be set in the module G10T. Just close the program G10config and GPRS communication session closes too. -
Page 11: Technical Specification
The Device, when installed, does not diminish the probability of burglary, fire, intrusion or other breach of premises. UAB “TRIKDIS” is not responsible for burglary, fire or any other breach of Buyer’s and/or User’s premises and is not −...
