Trikdis G16 User Manual

Gsm communicator
Hide thumbs Also See for G16:
Table of Contents

Advertisement

Quick Links

Download this manual See also: Installation Manual

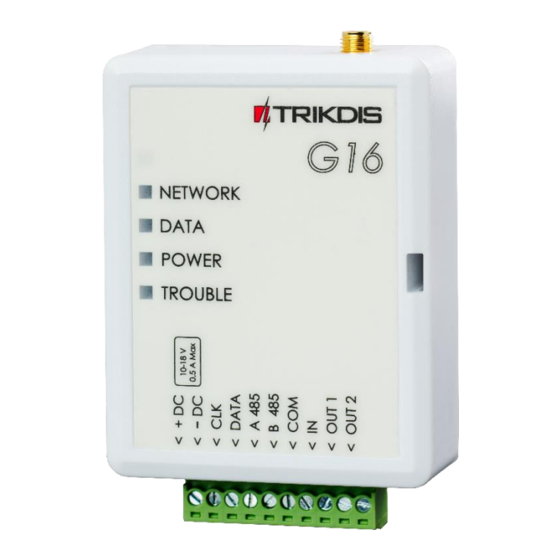

GSM communicator G16

USER MANUAL

UAB "TRIKDIS"
Draugystės str. 17,
LT-51229 Kaunas
LITHUANIA
E-mail: info@trikdis.lt
Webpage:
www.trikdis.lt

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the G16 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Trikdis G16

Summary of Contents for Trikdis G16

  • Page 1: User Manual

    GSM communicator G16 USER MANUAL UAB “TRIKDIS” Draugystės str. 17, LT-51229 Kaunas LITHUANIA E-mail: info@trikdis.lt Webpage: www.trikdis.lt...

  • Page 2: Table Of Contents

    ............................. 5 IGHT NDICATION ............................5 ACKAGE ONTENTS ............................5 EFORE YOU BEGIN CONNECT G16 TO TRIKDISCONFIG ......................... 5 ........................... 7 TATUS BAR DESCRIPTION SET OPERATION PARAMETERS ........................7 ..........................7 YSTEM SETTINGS WINDOW → ARC ....................8 REPORTING WINDOW REPORTING TAB →...

  • Page 3: Description

    GSM communicator G16 Description Communicator G16 is intended to upgrade compatible intruder alarm panels for event signalling via cellular network. Communicator transmits full event information to Alarm Receiving Centre. Customers are informed about security system events in Protegus apps or with SMS messages. They can Arm/Disarm the alarm system remotely (via panel’s keyswitch zone or directly via Serial for Paradox panels).

  • Page 4: Technical Parameters

    GSM communicator G16 Technical Parameters Parameter Description GSM modem frequencies 850 / 900 / 1800 / 1900 MHz 3G modem frequencies 800 / 850 / 900 / 1900 / 2100 MHz Power supply DC 10-18V Current consumption 60-100 mA (on standby)

  • Page 5: Light Indication

    Flat-head screwdriver. Order them separately from your local distributor. Connect G16 to TrikdisConfig Communicator can be configured using TrikdisConfig software for MS Window OS via USB cable or remotely. IMPORTANT: To use remote configuration function, Protegus service must be enabled.
  • Page 6 GSM communicator G16 a) Insert screwdriver to the hole (red arrow). (it is unnecessary to put in screwdriver`s head to the bottom of the casing). b) Hold the casing`s bottom part with one hand and gently push screwdriver to the left side.

  • Page 7: Status Bar Description

    Status bar Name Description IMEI/Unique ID IMEI number of the communicator Status Action status Device Communicator type (shows G16 or G16_3G) Serial number Bootloader version Firmware version Hardware version State Connection status Admin Access level (shows up after access code is confirmed)

  • Page 8: Arc Reporting Window→ Arc Reporting Tab

     Specify time synchronization (Communicator will use time according to selected server) and output/input parameters. Access The communicator G16 have two access levels for configuring the communicator:  Administrator code - allows full access to the configuration.  Installer code - allows limited access for installer to the configuration.

  • Page 9: Arc Reporting Window→ Settings Tab

    GSM communicator G16 ARC reporting window→ Settings tab Settings  Write Object ID in DC-09 code, if event is transferred using SIA DC-09 protocol (4-16 symbol hexadecimal number).  Enter required DC-09 line No.  Enter required DC-09 receiver No.

  • Page 10: User Reporting Window → Sms & Call Reporting Tab

    GSM communicator G16 User reporting window → SMS & Call Reporting tab Received event messages and internal communicator events can be reported to the users mobile phones via SMS messaging and calls.  Each message come with an object name: enter the Object name of your choice to the text field.

  • Page 11: Sms Commands List

    GSM communicator G16 3.6.1 SMS Commands list SMS Commands are used to remotely control the communicator. As access code use “Administrator code” or “Installer code”, “_” represents a space. SMS command structure: AccessCode_Command_Data. Command Data Description INFO Information about the communicator request. The response will include: communicator type, IMEI number, serial number and firmware version.

  • Page 12: Event Summary Window

    GSM communicator G16 Event summary window The communicator can generate periodical test messages. To enable globally periodical test messages and set the period time, navigate to System settings → General → Test period. Time is set in day(s) and hours (Maximum 7 days).

  • Page 13: Physical Installation Process

    GSM communicator G16 Physical installation process Insert SIM card into the holder a) SIM card must be already registered to the GSM network, if GPRS communication will be used, ensure to enable mobile data service. b) To configure the communicator remotely, insert a SIM card with the PIN code request function disabled.
  • Page 14 GSM communicator G16 4.5 Following provided schematics connect the control panel, sensors and output connections. 4.5.1 Wiring diagrams PARADOX TEXECOM CADDX 4.5.2 Input connection The communicator contains one input terminal (IN1) for connection of sensors. For setting the input connection type see 3.1 General system settings.

  • Page 15: Add Communicator In Protegus

    GSM communicator G16 4.8 Test communicator performance After configuration and installation is complete, perform a system test. Activate an event in the control panel, and make sure that the event arrives to the alarm receiving centre or is received in the mobile application.

  • Page 16: Manual Firmware Update

     If you do not have the file, the newest firmware file can be downloaded by registered user from www.trikdis.com , under the download section of the G16 communicator. Press Update [F12]. Wait for the prompt of update to complete.
