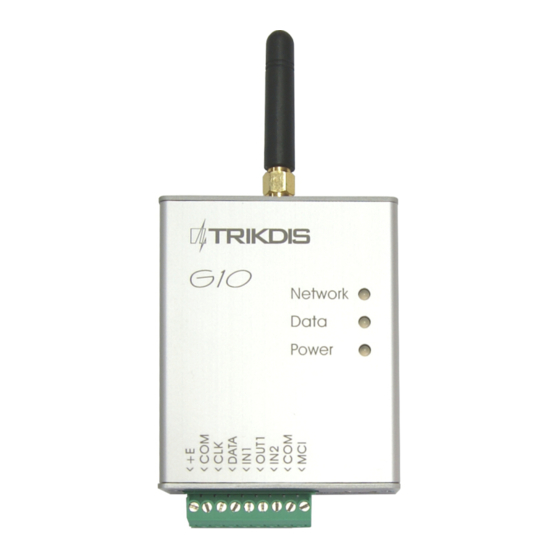

GSM communicator G10
(v.1.XX)

USER MANUAL

UAB "TRIKDIS"
Draugystės str. 17,
LT-51229 Kaunas
LITHUANIA
E-mail: info@trikdis.lt
Webpage:
www.trikdis.lt

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the G10 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Trikdis G10

Summary of Contents for Trikdis G10

  • Page 1: User Manual

    GSM communicator G10 (v.1.XX) USER MANUAL UAB “TRIKDIS” Draugystės str. 17, LT-51229 Kaunas LITHUANIA E-mail: info@trikdis.lt Webpage: www.trikdis.lt...
  • Page 2 GSM communicator G10 Description The communicator G10 is designed to transmit messages from security control panel in secured object to an alarm receiving centre (ARC) and/or to a mobile/WEB application. Messages are transmitted using GPRS, SMS and DTMF tones via GSM network.

  • Page 3: Safety Requirements

    The Device, when installed, does not diminish the probability of burglary, fire, intrusion or other breach of premises. UAB “TRIKDIS” is not responsible for burglary, fire or any other breach of Buyer’s and/or User’s premises and is not liable for any direct or indirect damages incurred thereof.

  • Page 4: Table Of Contents

    GSM communicator G10 Content Safety requirements .............................. 3 Warranty and Liability limitations ........................3 Technical specification ..........................5 Package content ............................5 Outside view ..............................5 3.1. Terminal block description ......................5 3.2. Light indication .......................... 5 Installaton ..............................6 4.1.

  • Page 5: Technical Specification

    GSM communicator G10 1. Technical specification Parameter Description Power supply voltage DC 10…16 V 60–100 mA (stand-by), Used current Up to 250 mA (transmitting) GSM modem frequency 850 / 900 / 1800 MHz Memory Up to 60 messages Inputs 2, NC type...

  • Page 6: Installaton

    GSM communicator G10 Data displays data buffer Red ON Unable to be sent messages status Green flashing Messages are being received from the control panel Red flashing rapidly SIM card error Red flashing Module configuration is incorrect Power displays power supply...
  • Page 7 The following settings have to be programmed for Caddx control panels: In order for communicator G10 to work with Caddx security control panels NX-4v2, NX-6v2, NX-8v2, NX-8e, control panels` locations 23 and 37 must be set as shown in the table below. When there are more than one partition in NX-8v2, NX-8e, also program locations 90, 93, 99, 102, 105, 108.

  • Page 8: Setting Of Operating Parameters

    5. Setting of operating parameters Module G10 operating parameters are set with computer program G10config. You can find software and required drivers in website www.trikdis.lt. To install G10config click twice on downloaded file and follow installation wizard. To install drivers, please follow steps below: 1.
  • Page 9 Panel type Select the type of security control panel, which is connected to the module G10. If one of an interface C11/C14/CZ6 is connected to the module, select the option INTERFACE C11/C14/CZ6; When the option 24h zone is selected in the drop-down list, module will transmit a message with a code set in the table Module events after braking/restoring input IN1 external circuit.
  • Page 10 Primary reporting are filled in automatically, Backup reporting is disabled. ǃ Write down IMEI code from status bar, because you will need it in Protegus service registration. How to connect G10 to Protegus see Protegus service.
  • Page 11 GSM communicator G10 and backup communication channels are selected as GPRS. The telephone number must be entered with international country code without the “+” (plus) sign. Protocol The drop-down list is for selecting a protocol for encrypting messages; Encryption key The section is applied for entering a 6-digit key for encrypting messages.

  • Page 12: Protegus Service

    Yes when request window opens. 9. Press the button Write [F6] and values entered in the program G10config windows will be uploaded to the G10. 10. Press the button Disconnect [F8] and unplug the USB cable from the USB socket.

  • Page 13: Firmware Update

    8. Setting of operating parameters remotely In order to set module G10 operating parameters remotely, you need to send a SMS message with the particular syntax to SIM card number. When the module G10 receives this SMS message, it opens GPRS communication session with software IPcom.

  • Page 14: Remote Pgm Output Switching

    3. After G10config opens, click Connect and Read in the program toolbar. GPRS connection status in the status bar will show Connected if GPRS connection session with module G10 is open. 4. Operation parameters of module G10 are set in the same way as using a USB cable (see section Setting Up Operation Parameters).

  • Page 15: Upgrading Firmware Version Remotely

    Press Start to open the progress bar and start the updating which will take from 60 to 90 seconds. Press Read after the progress bar fills up. New version of module G10 operation program will show up in the G10config status bar.

  • Page 16: Annex 1. Sms Messages Sent To Users

    GSM communicator G10 ANNEX 1. SMS messages sent to users Control panel’s Code in Text CID code In SMS In CID standard E 100 MEDICAL PANIC ALARM Medical Alarm E/R 100 R 100 E 110 FIRE PANIC ALARM Fire Alarm...
