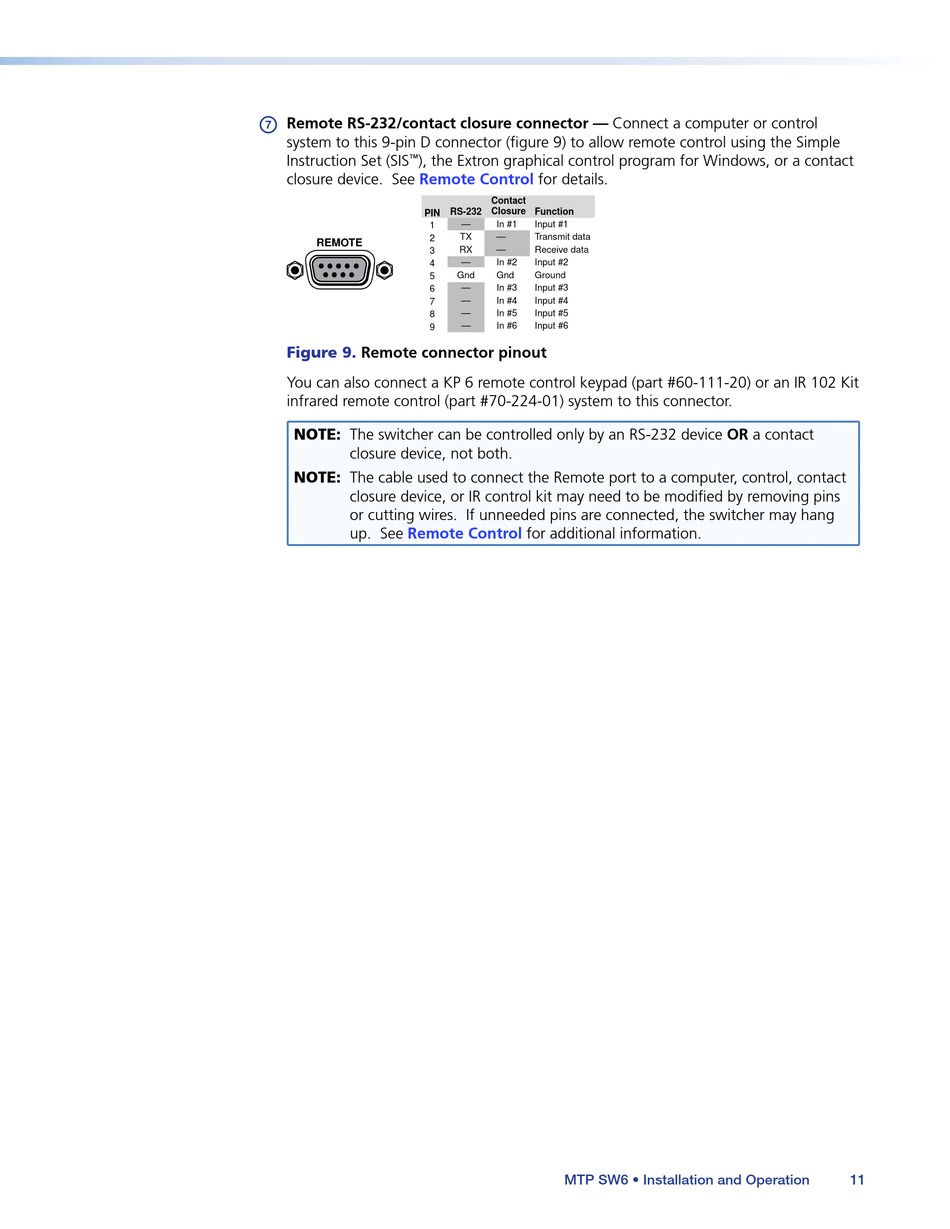

Remote RS-232/contact closure connector — Connect a computer or control
system to this 9-pin D connector (igure 9) to allow remote control using the Simple
Instruction Set (SIS ), the Extron graphical control program for Windows, or a contact
™
closure device. See
Remote Control
PIN
1
2
REMOTE
3
4
5
6
7
8
9
Figure 9.
Remote connector pinout
You can also connect a KP 6 remote control keypad (part #60-111-20) or an IR 102 Kit
infrared remote control (part #70-224-01) system to this connector.
NOTE: The switcher can be controlled only by an RS-232 device OR a contact
closure device, not both.
NOTE: The cable used to connect the Remote port to a computer, control, contact
closure device, or IR control kit may need to be modiied by removing pins
or cutting wires. If unneeded pins are connected, the switcher may hang
up. See
Remote Control
for details.
Contact
Closure Function
RS-232
— In #1 Input #1
TX — Transmit data
RX — Receive data
— In #2 Input #2
Gnd Gnd Ground
— In #3 Input #3
— In #4 Input #4
— In #5 Input #5
— In #6 Input #6
for additional information.
MTP SW6 • Installation and Operation 11
