Description

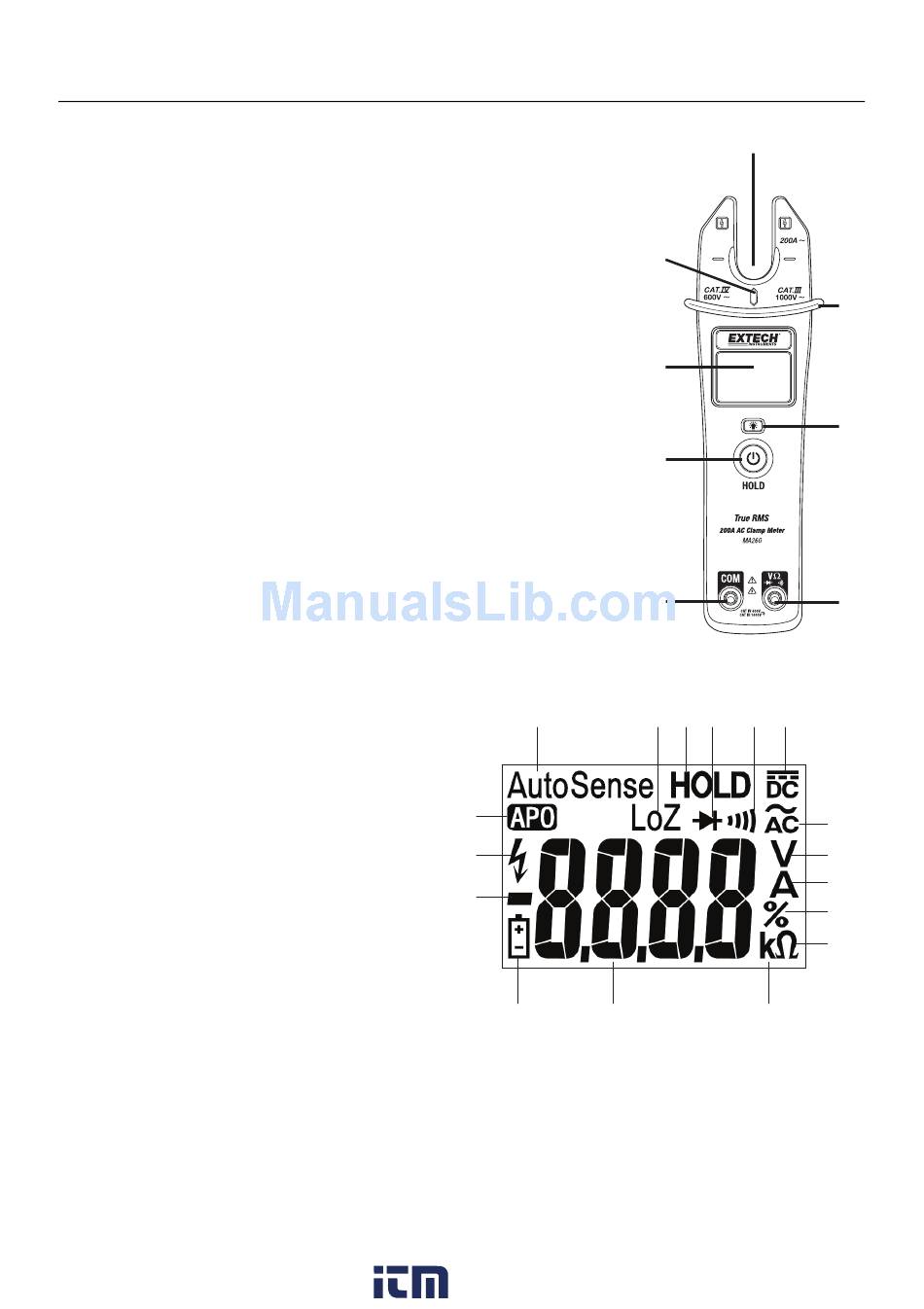

Meter Description
1. Transformer current measurement jaw
2. Non‐contact Volt‐Detection and AC/DC contact voltage indicator
3. Backlit Multi‐function Display
4. Power/Hold button
5. COM (‐) Terminal
6. Voltage, Resistance (+) Input Terminal
7. Backlight button
8. Finger‐Hand Guard
Note that the battery compartment is located on back of meter
Display Description
1. Automatic measurement detect
2. Low impedance mode is always active
3. Data Hold
4. Diode test
5. Continuity alert
6. DC measurement
7. AC measurement
8. Voltage
9. Amperes
10. Battery Status in Percent
11. Resistance/Continuity ohms
12. Kilo prefix
13. Main display digits
14. Battery status
15. Minus sign
16. DANGER. Live voltage detected
17. Auto Power OFF
