Summary of Contents for Extech Instruments MA610

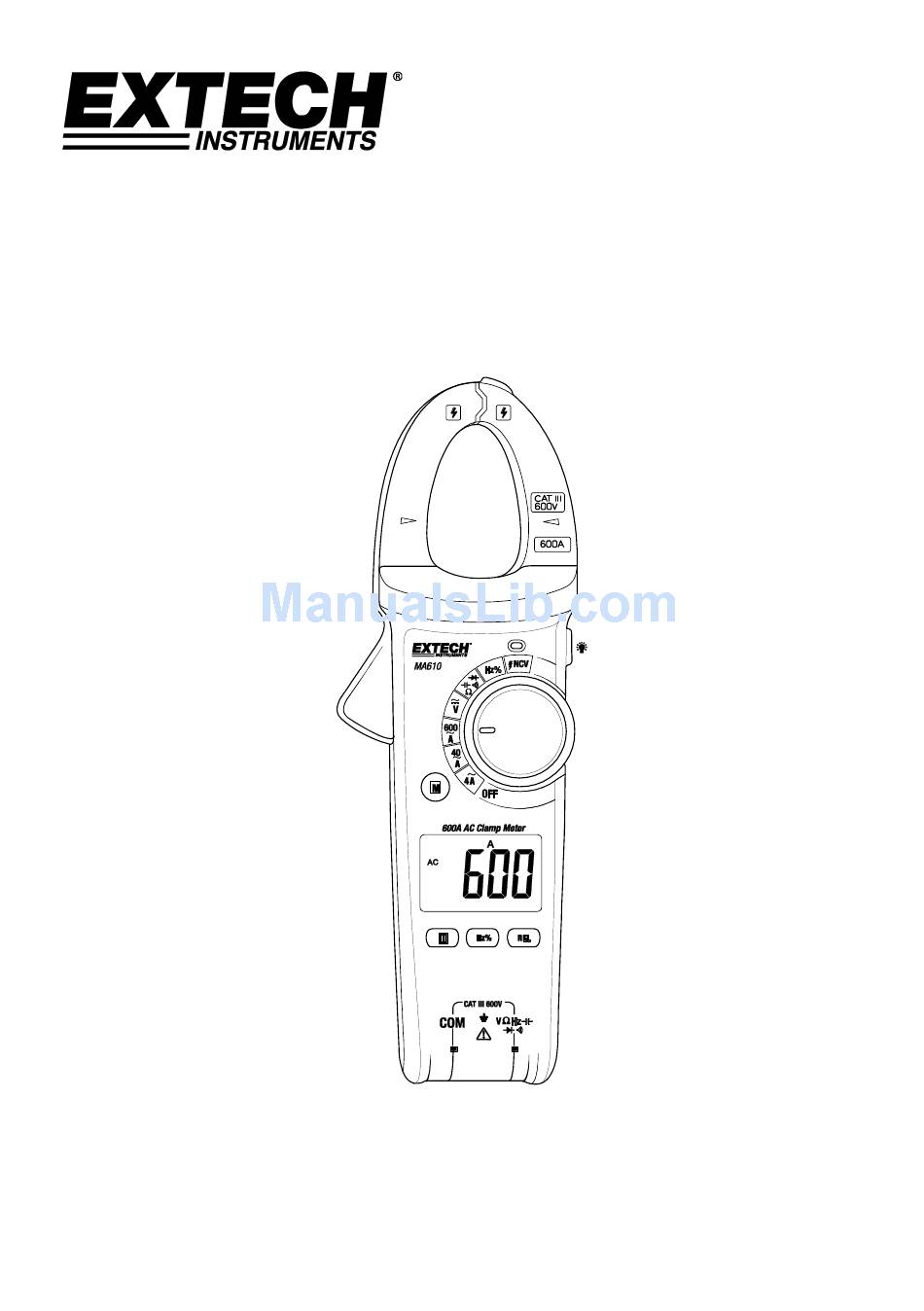

- Page 1 USER MANUAL 600A AC Clamp Meter + NCV Model MA610 GlobalTestSupply www. .com d Quality Products Online at: sales@GlobalTestSupply.c...
- Page 2 EXTECH INSTRUMENTS Introduction Thank you for selecting the Extech MA610 Clamp Meter. This meter measures AC Current, AC/DC Voltage, Resistance, Capacitance, Frequency, Diode Test, Duty Cycle, Continuity and Non- Contact Voltage detection. This device is shipped fully tested and calibrated and, with proper use, will provide years of reliable service.
-
Page 3: Safety Symbols
Risk of electrical shock Equipment protected by double or reinforced insulation Diode symbol Capacitance Battery symbol Conforms to EU directives Complies with USA and Canada requirements AC measurement DC measurement Earth ground MA610-en-GB_V1.0 12/16 GlobalTestSupply www. .com d Quality Products Online at: sales@GlobalTestSupply.c... -
Page 4: Meter Description
COM negative input terminal Positive input terminal Function selector NCV alert lamp Backlight button NCV sensor Note: Battery compartment is located on back of meter Fig. 1 – Meter Description MA610-en-GB_V1.0 12/16 GlobalTestSupply www. .com d Quality Products Online at: sales@GlobalTestSupply.c... -
Page 5: Display Description
For Capacitance mode, short press to zero the display; the LCD will show the delta symbol. Short press to exit this mode. Short press to step through frequency (Hz) and duty cycle (%) measurements for the Voltage and Hz switch positions. MA610-en-GB_V1.0 12/16 GlobalTestSupply www. .com d Quality Products Online at: sales@GlobalTestSupply.c... -
Page 6: Operation
Press any button to recover from an APO condition. Low battery indication When the icon appears in the display, the battery should be replaced. Refer to the battery replacement procedure in the maintenance section. MA610-en-GB_V1.0 12/16 GlobalTestSupply www. .com d Quality Products Online at:... -
Page 7: Ac Current Measurements
NOTES: To ensure maximum accuracy, place the conductor at the center of the clamp head, otherwise additional error (± 1.0%) may apply. Fig. 2 – Correct and Incorrect ACA Clamping MA610-en-GB_V1.0 12/16 GlobalTestSupply www. .com d Quality Products Online at:... -
Page 8: Ac And Dc Voltage Measurements
Short press the Hz % button to step through frequency and duty cycle readings. Short press the H button to freeze/unfreeze the displayed reading. NOTES: The LCD displays OL when the input exceeds 1000V. Fig. 3 – AC/DC Voltage Measurements MA610-en-GB_V1.0 12/16 GlobalTestSupply www. .com d Quality Products Online at: sales@GlobalTestSupply.c... -
Page 9: Resistance Measurements
Relative mode is active. Short press the REL button to exit the relative mode. NOTE: When measuring resistance >1MΩ the meter may require several seconds to obtain a stable reading. Fig. 4 – Resistance Measurements MA610-en-GB_V1.0 12/16 GlobalTestSupply www. .com d Quality Products Online at: sales@GlobalTestSupply.c... -
Page 10: Continuity Measurements
If the resistance is < 10Ω, the meter will beep. If the resistance is > 70Ω, the meter will not beep. If the resistance is between 10 and 70Ω, the meter will stop beeping at an unspecified point. Fig. 5 – Continuity Measurements MA610-en-GB_V1.0 12/16 GlobalTestSupply www. .com d Quality Products Online at: sales@GlobalTestSupply.c... -
Page 11: Frequency Measurements
Touch the test probe tips across the circuit or component. Read the Frequency measurement on the meter display. Use the Hz% button to view Duty Cycle %. Fig. 6 – Frequency Measurements MA610-en-GB_V1.0 12/16 GlobalTestSupply www. .com d Quality Products Online at:... -
Page 12: Capacitance Measurements
Relative (REL) mode can be used to zero the display before taking a measurement. Short press the REL button to null the display, the relative symbol (triangle) will appear. Short press the REL button again to exit the REL mode. Fig. 7 – Capacitance Measurements MA610-en-GB_V1.0 12/16 GlobalTestSupply www. .com d Quality Products Online at: sales@GlobalTestSupply.c... -
Page 13: Diode Test
Reverse voltage will indicate “OL”. Shorted devices will indicate a reading close to ‘0’ ohms in both directions. An open device will indicate ‘OL’ in both directions. Fig. 8 – Diode Testing MA610-en-GB_V1.0 12/16 GlobalTestSupply www. .com d Quality Products Online at:... - Page 14 Place the meter near a source of electrical energy. The tip of the clamp offers the highest sensitivity. Note the beeping and the NCV lamp activation when an AC Voltage is sensed. Fig. 9 – Non-Contact Voltage Detection MA610-en-GB_V1.0 12/16 GlobalTestSupply www. .com d Quality Products Online at: sales@GlobalTestSupply.c...
-
Page 15: Maintenance
Cleaning and Storage Periodically wipe the case with a damp cloth and mild detergent; do not use abrasives or solvents. MA610-en-GB_V1.0 12/16 GlobalTestSupply www. .com d Quality Products Online at:... -
Page 16: Electrical Specifications
Continuity: Beeper ON < 10Ω. Beeper OFF >70Ω. Beeper unspecified >10Ω and <70Ω Silicon PN junction 600V AC/DC Diode 4.000V 0.001V 0.5 to 0.8V (typically) Open Circuit Voltage: Approx. 1.5V MA610-en-GB_V1.0 12/16 GlobalTestSupply www. .com d Quality Products Online at: sales@GlobalTestSupply.c... - Page 17 Duty Cycle applies to ≤10kHz Square Wave Specified accuracy range: 10% ~ 90% range Non-Contact Voltage ≥100Vrms; ≤10mm (0.4”) beeper sounds, and NCV lamp lights Detector (NCV) The tip of the meter offers optimum sensitivity MA610-en-GB_V1.0 12/16 GlobalTestSupply www. .com d Quality Products Online at: sales@GlobalTestSupply.c...
-
Page 18: General Specifications
77 x 228 x 41mm (3.0 x 9.0 x 1.6”) Drop Protection 1m (approx. 3’) Safety Standards Indoor use only; Complies with EN61010-1, CAT III 600V; Pollution Degree 2 MA610-en-GB_V1.0 12/16 GlobalTestSupply www. .com d Quality Products Online at: sales@GlobalTestSupply.c...
