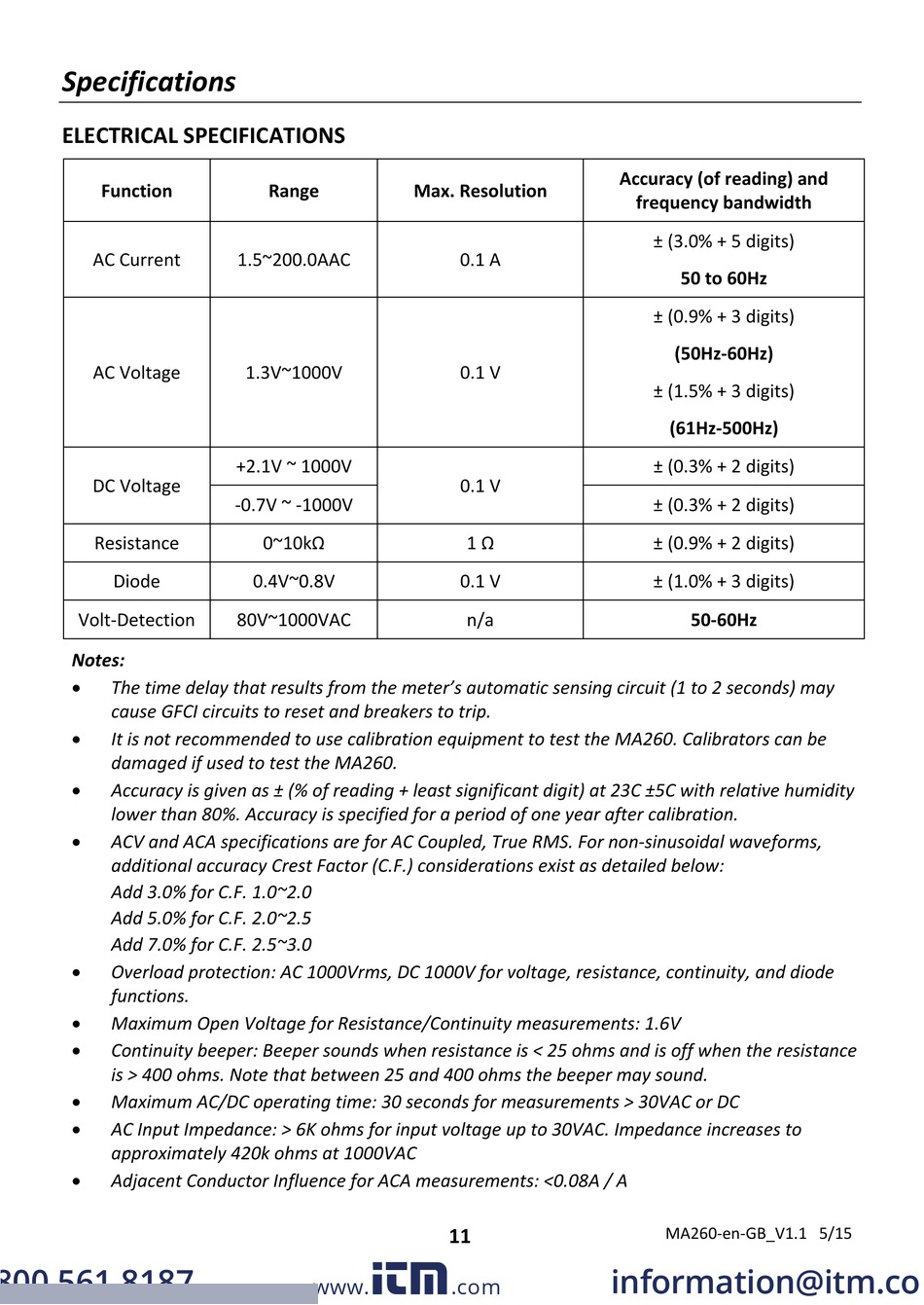

Specifications
ELECTRICAL SPECIFICATIONS
Function
AC Current
AC Voltage
DC Voltage
Resistance
Diode
Volt‐Detection
Notes:
The time delay that results from the meter's automatic sensing circuit (1 to 2 seconds) may
cause GFCI circuits to reset and breakers to trip.
It is not recommended to use calibration equipment to test the MA260. Calibrators can be
damaged if used to test the MA260.
Accuracy is given as ± (% of reading + least significant digit) at 23C ±5C with relative humidity
lower than 80%. Accuracy is specified for a period of one year after calibration.
ACV and ACA specifications are for AC Coupled, True RMS. For non‐sinusoidal waveforms,
additional accuracy Crest Factor (C.F.) considerations exist as detailed below:
Add 3.0% for C.F. 1.0~2.0
Add 5.0% for C.F. 2.0~2.5
Add 7.0% for C.F. 2.5~3.0
Overload protection: AC 1000Vrms, DC 1000V for voltage, resistance, continuity, and diode
functions.
Maximum Open Voltage for Resistance/Continuity measurements: 1.6V
Continuity beeper: Beeper sounds when resistance is < 25 ohms and is off when the resistance
is > 400 ohms. Note that between 25 and 400 ohms the beeper may sound.
Maximum AC/DC operating time: 30 seconds for measurements > 30VAC or DC
AC Input Impedance: > 6K ohms for input voltage up to 30VAC. Impedance increases to
approximately 420k ohms at 1000VAC
Adjacent Conductor Influence for ACA measurements: <0.08A / A
