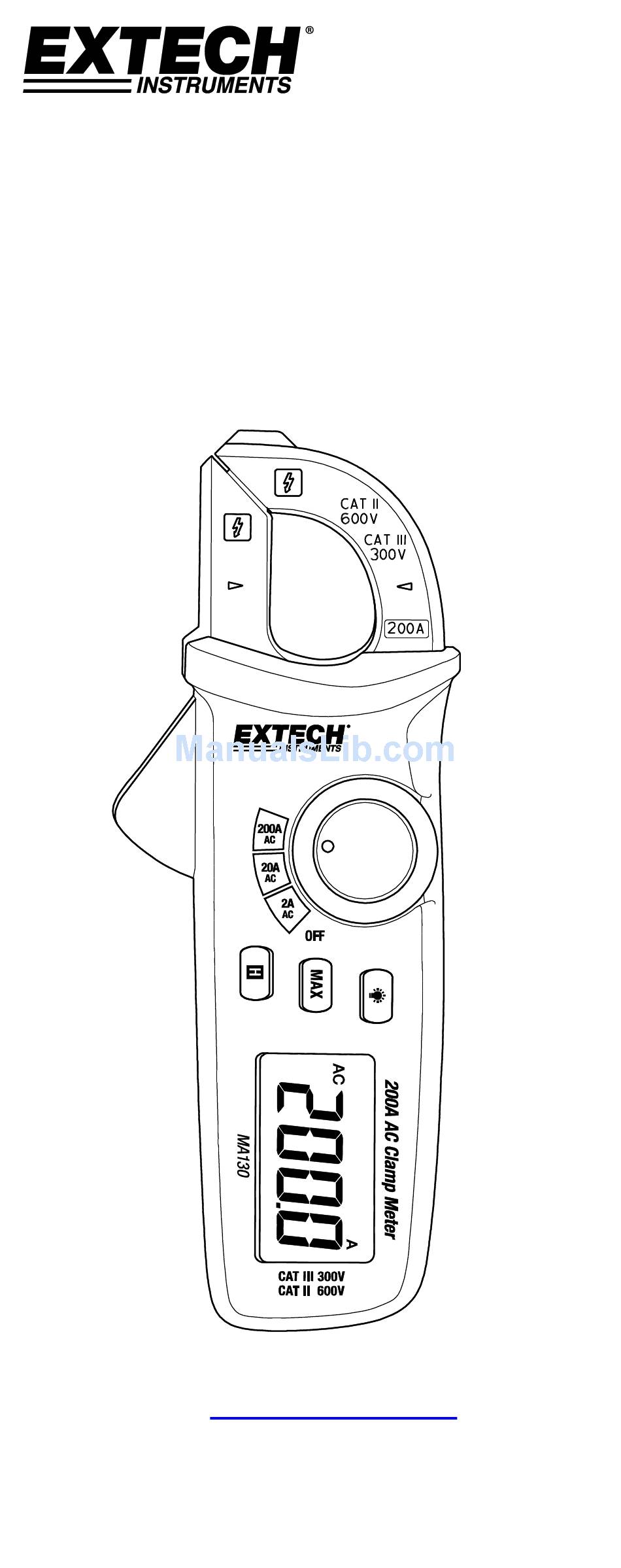

- Page 1 USER MANUAL 200A AC Mini Clamp Meter Model MA130 Please visit www.extech.com for user manual translations...
-
Page 2: Safety Information
Introduction Thank you for selecting the Extech Instruments 200A AC Mini Clamp Meter. The MA130 measures AC Current in three ranges 2A, 20A, and 200A. This device is shipped fully tested and calibrated and, with proper use, will provide years of reliable service. Please visit our website (www.extech.com) to check for the... -
Page 3: Further Information
Risk of electrical shock Equipment protected by double or reinforced insulation Battery symbol Conforms to EU directives Do not discard this product in household trash AC measurement Earth ground MA130-en-GB_V1.0 10/16... -
Page 4: Meter Description
3. Clamp jaw trigger open/close 4. Range selection switch 5. Hold button 6. MAX button 7. Backlight button 8. LCD display 9. Indicator for geometric center of clamp head Note: Battery compartment is located on back of meter MA130-en-GB_V1.0 10/16... -
Page 5: Push-Button Descriptions
The meter automatically powers off (APO) after approximately 15 minutes of inactivity. In APO mode, turn the rotary switch OFF and then ON to restart the meter. The meter can also be powered on by pressing any button to wake the instrument. MA130-en-GB_V1.0 10/16... -
Page 6: Ac Current Measurements
The MAXH display icon will appear and the reading shown will be the highest reading; updating only when a higher reading is encountered. Press MAX again to exit this mode and to view real time readings. The MAXH display icon will switch off. MA130-en-GB_V1.0 10/16... -
Page 7: Display Backlight
Cleaning and Storage Periodically wipe the case with a damp cloth and mild detergent; do not use abrasives or solvents. If the meter is not to be used for 60 days or more, remove the batteries and store separately. MA130-en-GB_V1.0 10/16... -
Page 8: General Specifications
16mm (0.6”) Standards EN 61010-1, EN61010-2-032, EN61010-2-033; Category II 600V, Category III 300V; pollution degree 2; double insulation Electromagnetic < 1V/m RF field: Overall accuracy = compatibility specified accuracy +5% of the range. Unspecified indication for 1V/m RF field. MA130-en-GB_V1.0 10/16... -
Page 9: Range Specifications
Accuracy stated for 10~100% of range; < 20-digit residual reading for 2A open circuit. Copyright © 2016 FLIR Systems, Inc. All rights reserved including the right of reproduction in whole or in part in any form ISO-9001 Certified www.extech.com MA130-en-GB_V1.0 10/16...
