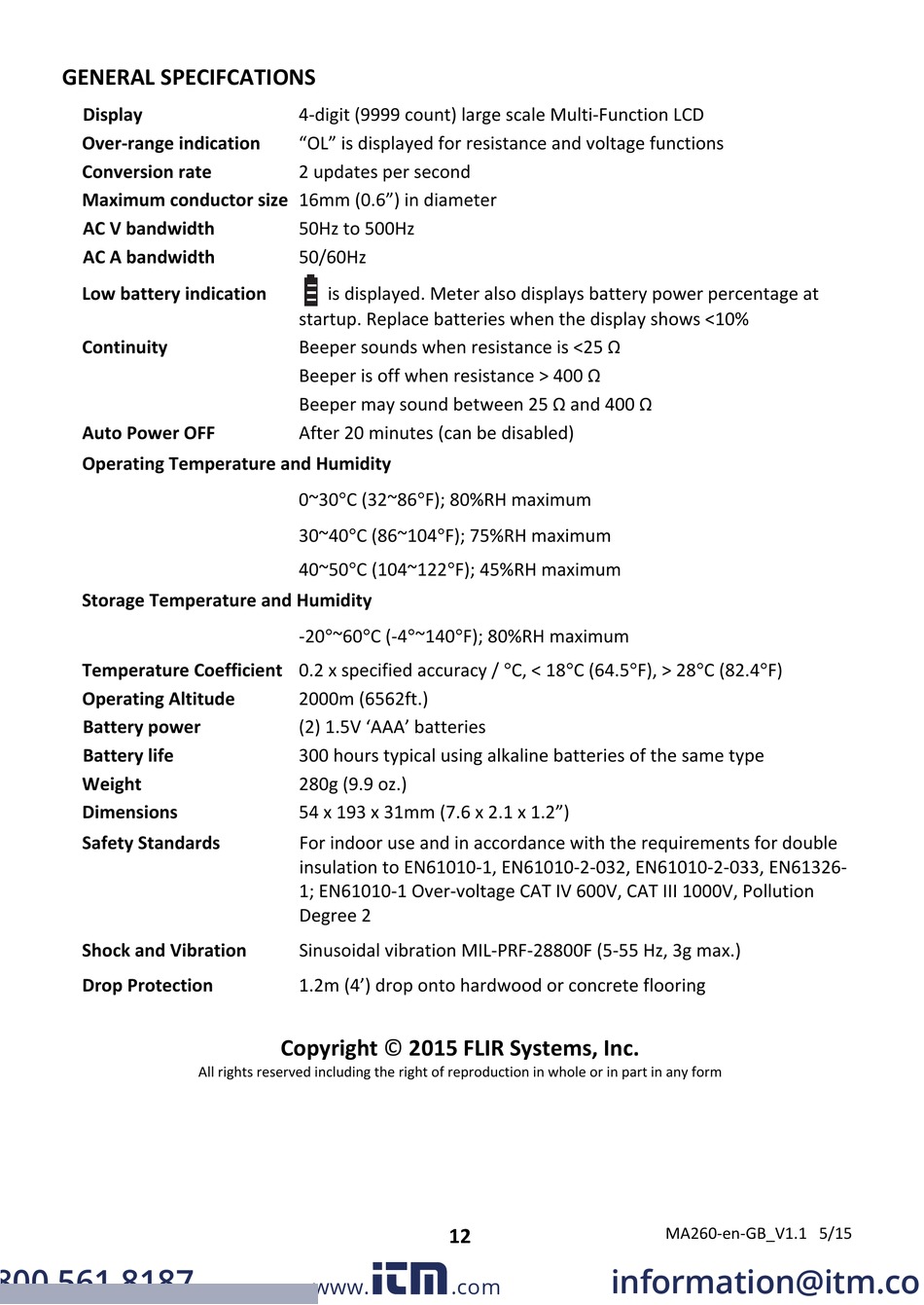

Extech Instruments MA260 User Manual page 12

GENERAL SPECIFCATIONS
Display
Over‐range indication
Conversion rate
Maximum conductor size 16mm (0.6") in diameter
AC V bandwidth
AC A bandwidth
Low battery indication
Continuity
Auto Power OFF
Operating Temperature and Humidity
Storage Temperature and Humidity
Temperature Coefficient 0.2 x specified accuracy / C, < 18C (64.5F), > 28C (82.4F)
Operating Altitude
Battery power
Battery life
Weight
Dimensions
Safety Standards
Shock and Vibration
Drop Protection
800.561.8187
4‐digit (9999 count) large scale Multi‐Function LCD
"OL" is displayed for resistance and voltage functions
2 updates per second
50Hz to 500Hz
50/60Hz
is displayed. Meter also displays battery power percentage at
startup. Replace batteries when the display shows <10%
Beeper sounds when resistance is <25 Ω
Beeper is off when resistance > 400 Ω
Beeper may sound between 25 Ω and 400 Ω
After 20 minutes (can be disabled)
0~30C (32~86F); 80%RH maximum
30~40C (86~104F); 75%RH maximum
40~50C (104~122F); 45%RH maximum
‐20~60C (‐4~140F); 80%RH maximum
2000m (6562ft.)
(2) 1.5V 'AAA' batteries
300 hours typical using alkaline batteries of the same type
280g (9.9 oz.)
54 x 193 x 31mm (7.6 x 2.1 x 1.2")
For indoor use and in accordance with the requirements for double
insulation to EN61010‐1, EN61010‐2‐032, EN61010‐2‐033, EN61326‐
1; EN61010‐1 Over‐voltage CAT IV 600V, CAT III 1000V, Pollution
Degree 2
Sinusoidal vibration MIL‐PRF‐28800F (5‐55 Hz, 3g max.)
1.2m (4') drop onto hardwood or concrete flooring
