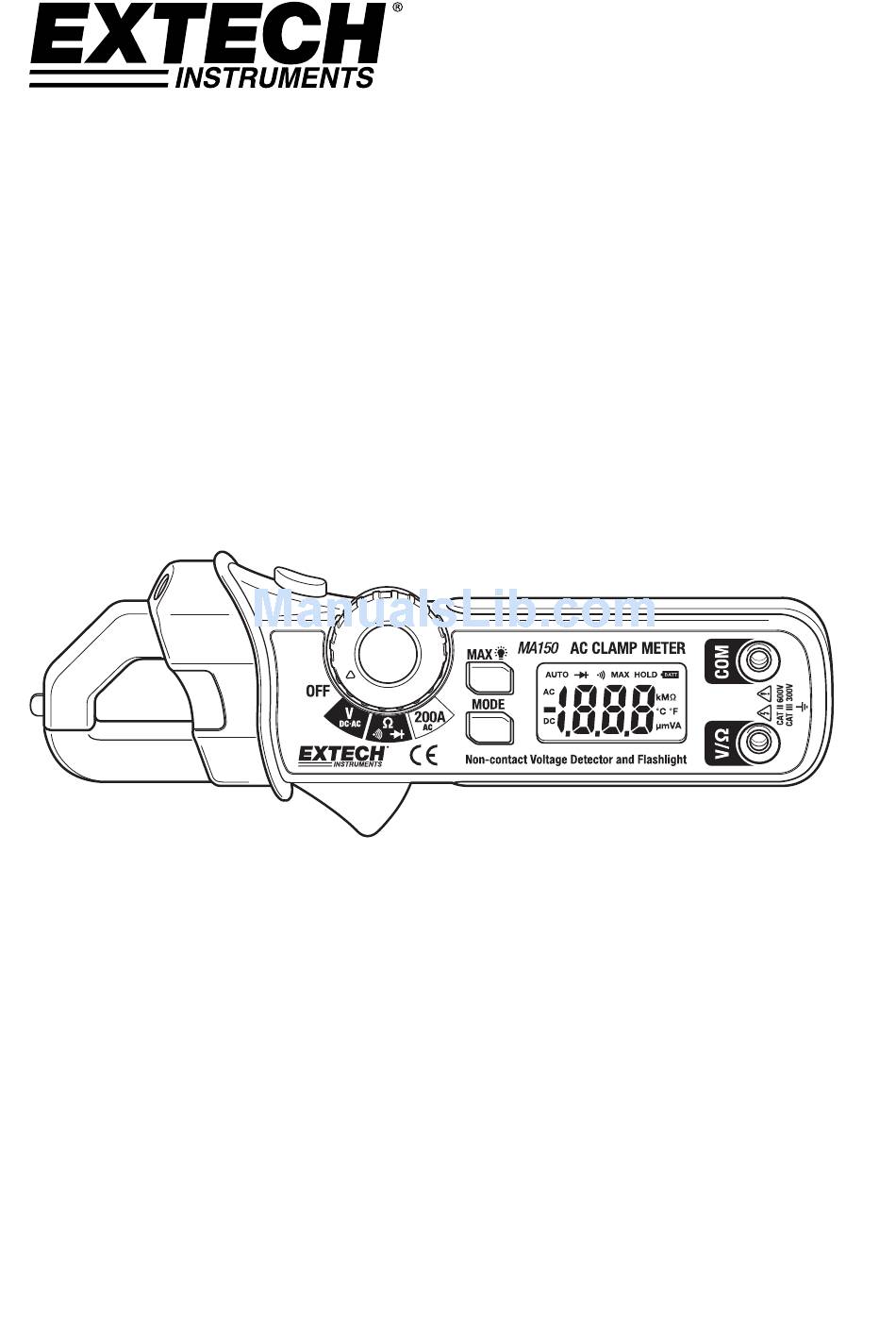

- Page 1 USER MANUAL Model MA150 200A AC Mini Clamp-on Meter...
-
Page 2: Meter Description
Introduction Thank you for choosing the Extech MA150 AC Mini Clamp Meter. This meter is shipped fully tested and calibrated and, with proper use, will provide years of reliable service. Meter Description 1. Current sense jaw 6. LCD display 2. Non-contact AC voltage indicator light 7. -
Page 3: Operation
4) Touch the test probes to the diode under test. Forward voltage will typically indicate 0.400 to 0.700V. Reverse voltage will indicate “OL”. Shorted devices will indicate near 0V and an open device will indicate “OL” in both polarities. MA150-en-US v2.3 06/16... - Page 4 To manually turn off the backlight, press and hold the “MAX ” key for more than 1 second. Flashlight Press and hold the top button to turn the flashlight on. Release the button to turn the flashlight off. MA150-en-US v2.3 06/16...
-
Page 5: Specifications
6.5 x 2.6 x 1.3” (164 x 65 x 32mm) (HWD) Standards For indoor use and in accordance with the requirements for double insulation to IEC1010-1 (1995): EN61010-1 (1995) Overvoltage Category III 300V and Category II 600V, Pollution Degree 2. MA150-en-US v2.3 06/16... - Page 6 ±(2.0% rdg + 3 digits) 2.000MΩ 1kΩ ±(3.0% rdg + 5 digits) 20.00MΩ 10kΩ Non-Contact AC Voltage 100VAC to 600VAC 50/60Hz Test current: 0.3mA typical; Diode Test Open circuit voltage: 1.5VDC typical Threshold <120Ω Continuity Test current <1mA MA150-en-US v2.3 06/16...
-
Page 7: Maintenance
4) Replace compartment cover and secure the screw. Warranty FLIR Systems, Inc. warrants this Extech Instruments brand device to be free of defects in parts and workmanship for one year from date of shipment (a six month limited warranty applies to sensors and cables). If it should become necessary to return the instrument for service during or beyond the warranty period, contact the Customer Service Department for authorization. Visit the website www.extech.com for contact information. A Return Authorization (RA) number must be issued before any product is returned. The sender is responsible for shipping charges, freight, insurance and proper packaging to prevent damage in transit. This warranty does not apply to defects resulting from action of the user such as misuse, improper wiring, operation outside of specification, improper maintenance or repair, or unauthorized modification. FLIR Systems, Inc. specifically disclaims any implied warranties or merchantability or fitness for a specific purpose and will not be liable for any direct, indirect, incidental or consequential damages. FLIR’s total liability is limited to repair or replacement of the product. The warranty set forth above is inclusive and no other warranty, whether written or oral, is expressed or implied. Calibration, Repair, and Customer Care Services FLIR Systems, Inc. offers repair and calibration services for the Extech Instruments products we sell. NIST certification for most products is also provided. Call the Customer Service Department for information on calibration services available for this product. Annual calibrations should be performed to verify meter performance and accuracy. Technical support and general customer service is also provided, refer to the contact information provided below. Support Lines: U.S. (877) 439‐8324; International: +1 (603) 324‐7800 Technical Support: Option 3; E‐mail: support@extech.com Repair & Returns: Option 4; E‐mail: repair@extech.com Product specifications are subject to change without notice Please visit our website for the most up‐to‐date information www.extech.com FLIR Commercial Systems, Inc., 9 Townsend West, Nashua, NH 03063 USA ISO 9001 Certified Copyright © 2013‐2016 FLIR Systems, Inc. All rights reserved including the right of reproduction in whole or in part in any form www.extech.com MA150-en-US v2.3 06/16...
