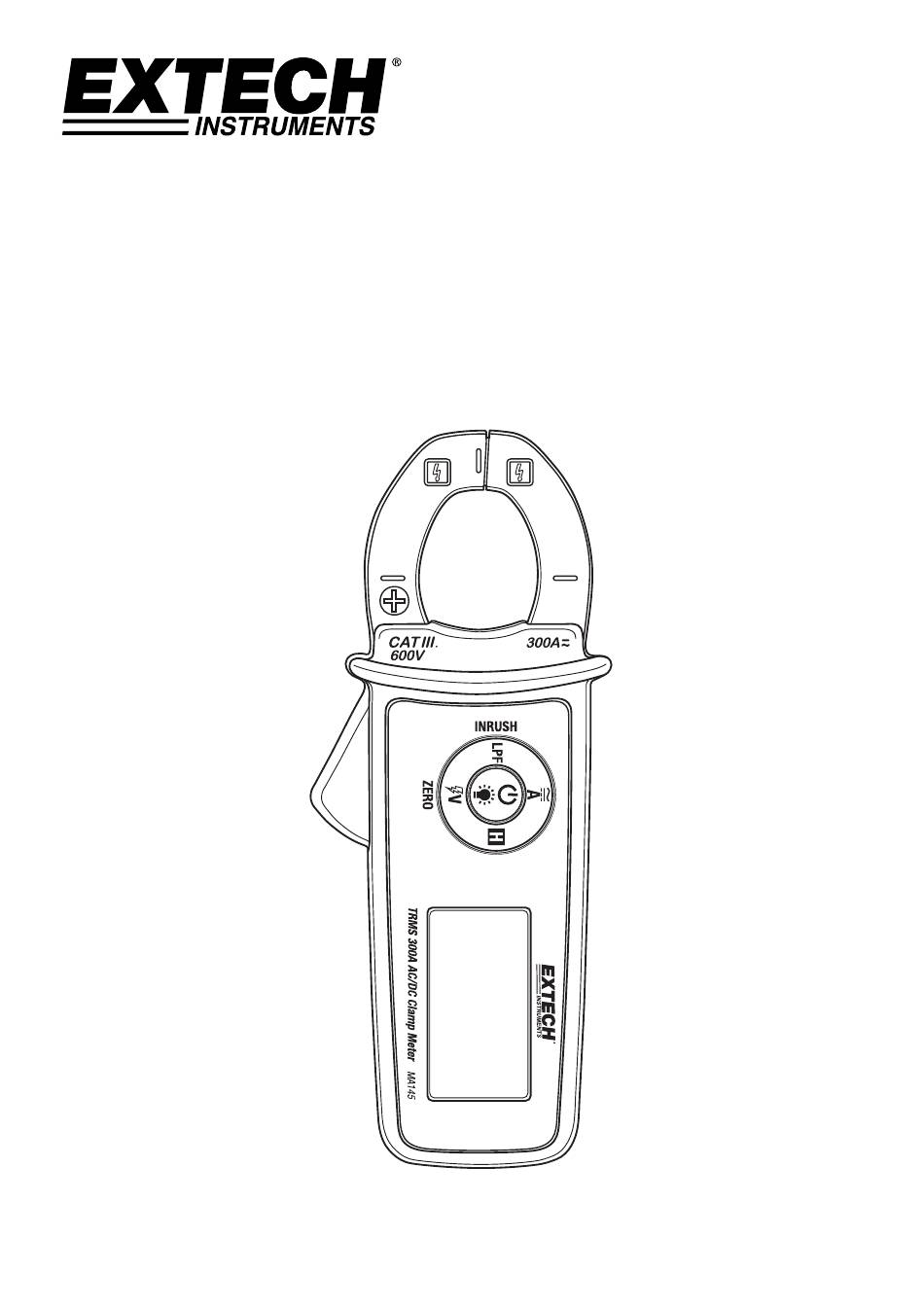

- Page 1 USER GUIDE True RMS 300A AC/DC Mini Clamp Meter with Non‐Contact Voltage Detector Model MA145 GlobalTestSupply www. .com nd Quality Products Online at: sales@GlobalTestSupply.co...
- Page 2 Introduction Thank you for selecting the Extech MA145 300A AC/DC True RMS Mini Clamp Meter with Non‐ Contact Voltage Detector. The MA145 is small in size but rugged in performance. The MA145 measures AC/DC current to 300A and offers a Smart Data Hold feature, display Backlight, In‐rush Current mode, DCA Zero, Low Pass Filtering (LPF), and a non‐contact Voltage Detection feature that senses electrical sources safely. This device is shipped fully tested and calibrated and, with proper use, will provide years of reliable service. Please visit our website (www.extech.com) to check for the latest version of this User Guide, Product Updates, Product Registration, and Customer Support. Safety Information – Please Read First To ensure the safe operation and service of the meter, follow these instructions closely. Failure to observe warnings can result in severe injury. WARNINGS WARNINGS identify hazardous conditions and actions that could cause BODILY HARM or DEATH. Individual protective equipment should be used if HAZARDOUS LIVE parts in the installation where measurements are to be carried out could be accessible. If the equipment is used in a manner not specified by the manufacturer, the protection provided by the equipment may be impaired. To reduce the risk of fire or electric shock, do not expose this product to rain or moisture. Verify the meter operation by measuring a known voltage. If in doubt, have the meter serviced. Do not apply more than the rated voltage as marked on the meter. To avoid false readings that can lead to electric shock and injury, replace battery as soon as the low battery indicator appears. Do not use the meter in or around explosive gas or vapor. Please keep fingers and hands behind the finger guards. Do not expose meter to extremes in temperature or high humidity. ...
- Page 3 Equipment protected by double or reinforced insulation Battery symbol Conforms to EU directives Do not discard this product in household trash. AC measurement DC measurement Earth ground PER IEC1010 OVERVOLTAGE INSTALLATION CATEGORY OVERVOLTAGE CATEGORY I Equipment of OVERVOLTAGE CATEGORY I is equipment for connection to circuits in which measures are taken to limit the transient over‐voltages to an appropriate low level. Note – Examples include protected electronic circuits. OVERVOLTAGE CATEGORY II Equipment of OVERVOLTAGE CATEGORY II is energy‐consuming equipment to be supplied from the fixed installation. Note – Examples include household, office, and laboratory appliances. OVERVOLTAGE CATEGORY III Equipment of OVERVOLTAGE CATEGORY III is equipment in fixed installations. Note – Examples include switches in the fixed installation and some equipment for industrial use with permanent connection to the fixed installation. OVERVOLTAGE CATEGORY IV Equipment of OVERVOLTAGE CATEGORY IV is for use at the origin of the installation. Note – Examples include electricity meters and primary over‐current protection equipment MA145‐en‐GB_V1.1 5/15 GlobalTestSupply www. .com nd Quality Products Online at: sales@GlobalTestSupply.co...
-
Page 4: Meter Description
Transformer current jaw Finger‐Hand Guard Jaw opening trigger LCD Multi‐function display Push‐button controls Note that the battery compartment is located on back of meter Display Description Automatic ACA/DCA detect Zero icon In‐Rush Current mode Low Pass Filter Data Hold AC Measurement DC Measurement Amperes (current) Main Display area Battery status icon Minus (negative) sign Non‐Contact Volt Detect icons Control Button Description Press for > 2 seconds to access In‐rush Current mode Press to access Low Pass Filter mode Press to access current measurement mode. Press again to toggle AC/DC Press to access Voltage detect mode Press for > 2 seconds to zero DCA display Press to switch Data Hold on or off Press to power ON the meter. Press and hold > 2 seconds to switch OFF Press to toggle display backlight on and off MA145‐en‐GB_V1.1 5/15 GlobalTestSupply www. .com nd Quality Products Online at: sales@GlobalTestSupply.co... -
Page 5: Operation
Operation CAUTIONS Read and understand all of the Safety statements listed in the safety section of this manual prior to use. Powering the Meter Press the Power‐Backlight button to power the meter. Check the batteries if the unit fails to power ON. Press and hold the Power button for more than 2 seconds to power OFF the meter. The meter has an Auto Power OFF feature (APO) where the meter switches OFF after 20 minutes of inactivity. To disable APO, refer to the next section. Note: The meter displays the battery capacity when powering up. Disable Auto Power OFF The meter will auto power OFF after 20 minutes of inactivity. To defeat this feature, follow the steps below. With the meter OFF, press and hold the ‘V’ button and, while continuing to hold the ‘V’ button, press the power button. The display will show AOFF. Release all of the buttons. The Auto Power OFF function will now be disabled until the next cycle of power. Display Backlight With the meter powered ON, press the backlight button to switch the backlight ON or OFF. Note that excessive use of the backlight will shorten the battery life. MA145‐en‐GB_V1.1 5/15 GlobalTestSupply www. .com nd Quality Products Online at: sales@GlobalTestSupply.co... -
Page 6: Ac/Dc Current Measurements
AC/DC Current Measurements WARNING: Do not handle the meter above the finger/hand guard barrier. CAUTION: Observe CAT III 600V with respect to Earth Ground for the Jaw. Press the ‘A’ button to access the Current measurement mode. The A symbol will appear on the display in the lower right hand side indicating Amperes (Amps). The meter can be used in AUTO mode (default) where the meter detects AC or DC current automatically or the meter can be used manually (use the ‘A’ button to toggle DC and AC). When in AUTO mode, the display shows the AUTO icon in the upper left corner. The meter display will show AC or DC on the right side of the display. When in DC Current mode, press and hold ZERO for > 2 seconds to null the display before taking a DCA measurement. Press the jaw trigger to open the clamp jaw. Position the clamp around only one conductor. See accompanying diagrams for correct and incorrect use. Read the current in the display. The display will indicate the proper decimal point and value. In DC, If the polarity is reversed, the display will show (‐) minus before the value. MA145‐en‐GB_V1.1 5/15 GlobalTestSupply www. .com nd Quality Products Online at: sales@GlobalTestSupply.co... -
Page 7: Inrush Current Mode
5A is detected. 4. To exit the Inrush Current mode press the INRUSH button again momentarily. The INRUSH icon will switch OFF. Measured Inrush Current Current Detection Threshold TIME 100ms Sample Window (60Hz) Start Stop Low Pass Filter The Low Pass Filter mode offers high frequency rejection when measuring Variable Speed Drives. The Low Pass Filter mode offers a cut‐off frequency of 160Hz (approx.) with an attenuation characteristic of ‐24db per octave (approx.). 1. Momentarily press the LPF button to access the LPF mode 2. The LPF display icon is shown on the display in the LPF mode 3. Press the LPF button again to exit the LPF mode, the LPF icon will switch OFF MA145‐en‐GB_V1.1 5/15 GlobalTestSupply www. .com nd Quality Products Online at: sales@GlobalTestSupply.co... - Page 8 Press the ‘V’ button to access the Non‐Contact Voltage Detect mode. Note the voltage detection display icons as shown in the Description section of this guide. Place the meter near a source of electrical energy. The tip of the clamp offers the highest sensitivity. Note the audible beeping and the dash displays. Smart Data Hold To freeze the LCD meter reading, press the HOLD button. While data hold is active, the HOLD display icon appears on the LCD. Press the HOLD button to return to normal operation. The HOLD icon will switch OFF. The meter’s beeper will sound and the LCD will flash if the detected signal is 50 counts greater than the held reading. MA145‐en‐GB_V1.1 5/15 GlobalTestSupply www. .com nd Quality Products Online at: sales@GlobalTestSupply.co...
-
Page 9: Maintenance
Maintenance WARNING: To avoid electrical shock, disconnect the meter from any circuit and turn OFF the meter before opening the case. Do not operate with an open case. Cleaning and Storage Periodically wipe the case with a damp cloth and mild detergent; do not use abrasives or solvents. If the meter is not to be used for 60 days or more, remove the batteries and store them separately. Battery Replacement Remove the Phillips head screw at the lower back of the meter. Open the battery compartment Replace the two LR44 batteries observing correct polarity. Re‐assemble the meter before use Safety: Please dispose of batteries responsibly; never dispose of batteries in a fire, batteries may explode or leak; never mix battery types, install new batteries of the same type. Never dispose of used batteries or rechargeable batteries in household waste. As consumers, users are legally required to take used batteries to appropriate collection sites, the retail store where the batteries were purchased, or wherever batteries are sold. Disposal: Do not dispose of this instrument in household waste. The user is obligated to take end‐of‐life devices to a designated collection point for the disposal of electrical and electronic equipment. MA145‐en‐GB_V1.1 5/15 GlobalTestSupply www. .com nd Quality Products Online at: sales@GlobalTestSupply.co... -
Page 10: Specifications
Range Resolution Accuracy (of reading) Inrush Current 300.0 A 0.1 ± (3.5% + 5 digits) Integration time: 100ms Trigger current (threshold): 5A Voltage n/a 80V~600VAC n/a Detector The tip of the clamp offers the optimum sensitivity Notes: Clamp position error: ±1.5% of reading Accuracy is given as ± (% of reading + least significant digit) at 23C ±5C with relative humidity lower than 80%. Accuracy is specified for a period of one year after calibration. ACA specifications are for AC Coupled, True RMS. For square wave the accuracy for >100Hz is unspecified. For non‐sinusoidal waveforms, additional accuracy Crest Factor (C.F.) considerations exist as detailed below: Add 3.0% for C.F. 1.0~2.0 Add 5.0% for C.F. 2.0~2.5 Add 7.0% for C.F. 2.5~3.0 MA145‐en‐GB_V1.1 5/15 GlobalTestSupply www. .com nd Quality Products Online at: sales@GlobalTestSupply.co... - Page 11 Operating Temperature and Humidity 0~30C (32~86F); 80%RH maximum 30~40C (86~104F); 75%RH maximum 40~50C (104~122F); 45%RH maximum Storage Temperature and Humidity ‐20~60C (‐4~140F); 80%RH maximum Temperature Coefficient 0.2 x specified accuracy / C, < 18C (64.5F), > 28C (82.4F) Operating Altitude 2000m (6562ft.) Battery power (2) LR‐44 1.5V batteries (battery life 20 hours typical) Weight 140g (4.9 oz.) Dimensions 60 x 147 x 31.5mm (2.4 x 5.8 x 1.2”) Safety Standards For indoor use and in accordance with the requirements for double insulation to EN61010‐1, EN61010‐2‐030, EN61010‐2‐032, EN61326‐ 1; EN61010‐1 Over‐voltage CAT III 600V, Pollution Degree 2 Shock and Vibration Sinusoidal vibration MIL‐PRF‐28800F for a Class II instrument Drop Protection 1.2m (4’) drop onto hardwood or concrete flooring Copyright © 2015 FLIR Systems, Inc. All rights reserved including the right of reproduction in whole or in part in any form ISO‐9001 Certified www.extech.com MA145‐en‐GB_V1.1 5/15 GlobalTestSupply www. .com nd Quality Products Online at: sales@GlobalTestSupply.co...
