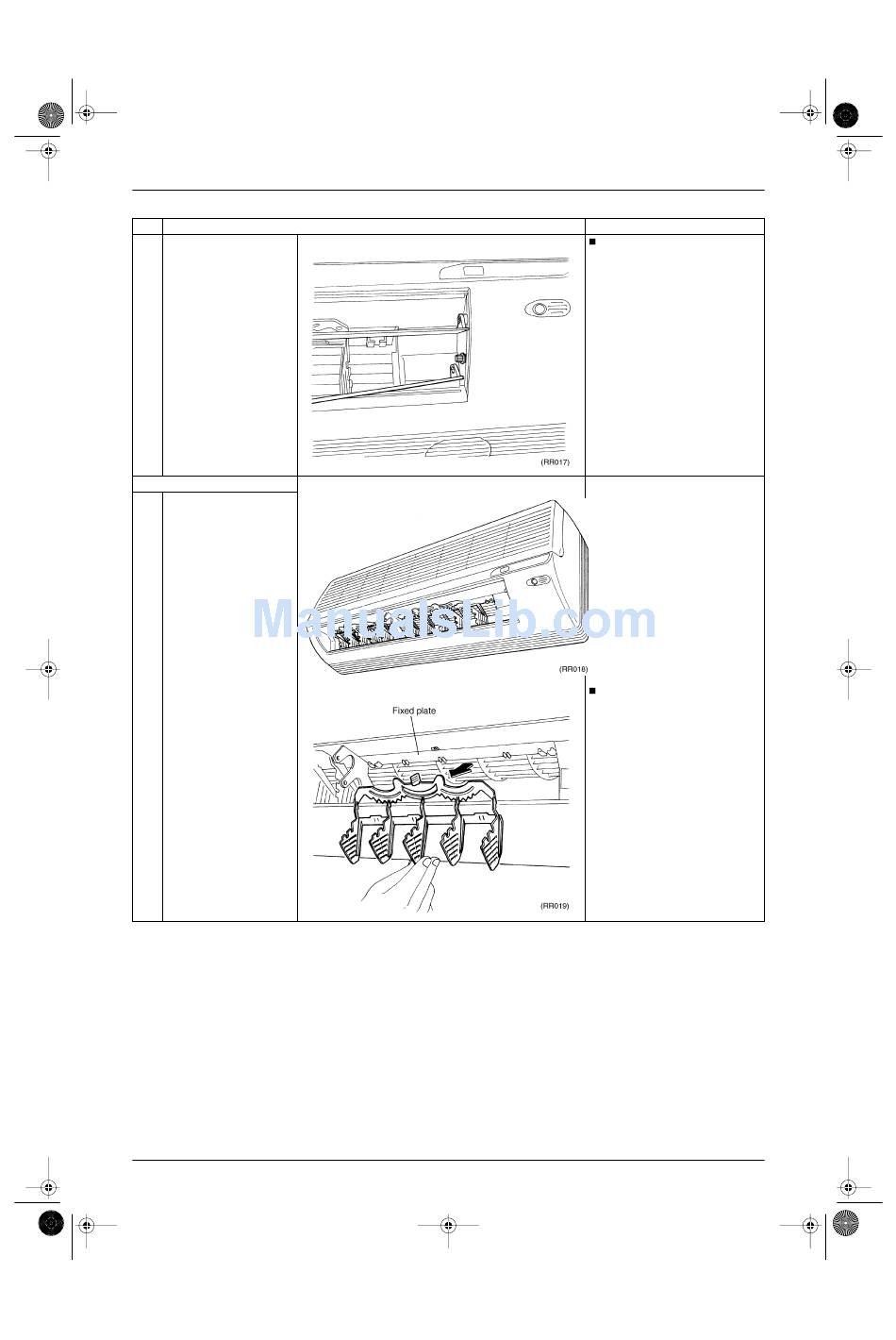

2. Removal of vertical blade
1 Disengage the vertical
blade's joint from the fixed
plate.
2 Remove the blade
forward.
Removal Procedure
Procedure
For FTK25J, FTK35J, FTX25J, FTX35J
Points
For restoring.
1. Since the key pattern hook is
provided on the left side, insert
the edge of the blade to the tip
while rotating it.
2. Restore the two fixed parts of
the horizontal blade onto the
hook.
Five vertical blades are
integrated with the joint rod. (so,
only one blade can't be
exchanged.)
