For FTK25J, FTK35J, FTX25J, FTX35J

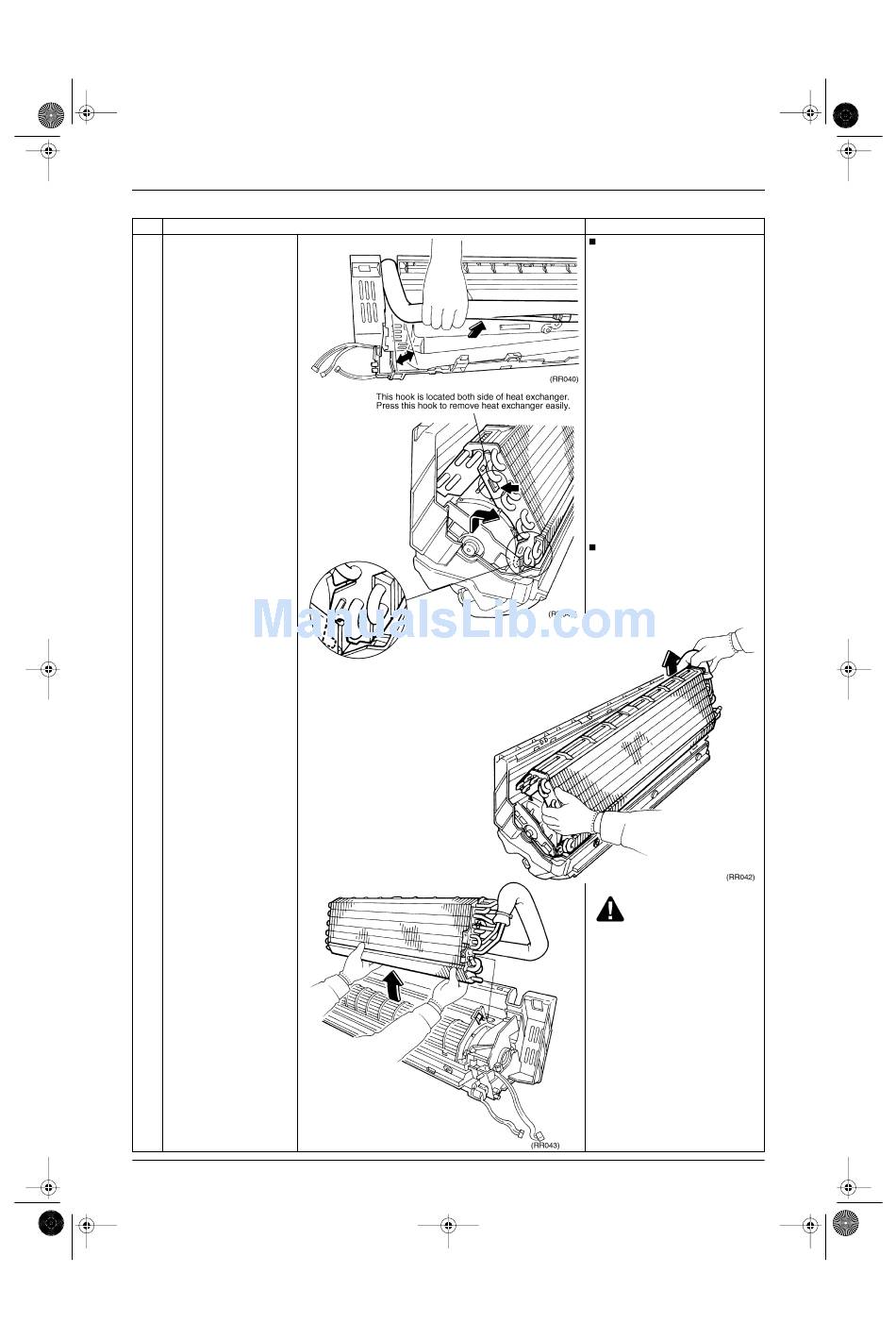

Step
5 Pull auxiliary pipe forward
to an angle of 10 to 20
degrees.
6 Disengage hooks located
right and left side, and pull
heat exchanger foward.
The hooks are
symmetrically placed in
the right and the left.
7 Lift and remove heat
exchanger.
98
Procedure
SIE-86
Points
Be careful to prevent pipe
deformation.
Lifting the heat-exchanger
slightly upward to the right, the
left hook comes to be
disengaged easily.
Caution!
When removing or re-installing
heat exchanger, be sure to wear
protective gloves or wrap heat
exchanger with cloths. (Fins can
cut fingers.)
Removal Procedure
