SIE-86
1.6

Wide-angle Flaps, Diffuser, Louvres and Autoswing

1.6.1 H type
Wide-angle flap
The large flaps send a large volume of air downwards to the floor. The flap provides an optimum control in
cooling, heating and dry mode.
Diffuser
The diffuser enables the air coming out of the indoor unit to reach all surfaces in cooling mode.
Heating mode
During heating mode, the large flap enables direct warm air straight downwards. The diffuser presses the
warm air above the floor to reach the entire room.
Cooling mode
During cooling mode, the diffuser retracts into the indoor unit. This enables a distribution of cooled air
throughout the entire room.
Louvres
The louvres, made of elastic synthetic resin, provide a wide range of airflow that guarantees a comfortable
air distribution.
Autoswing

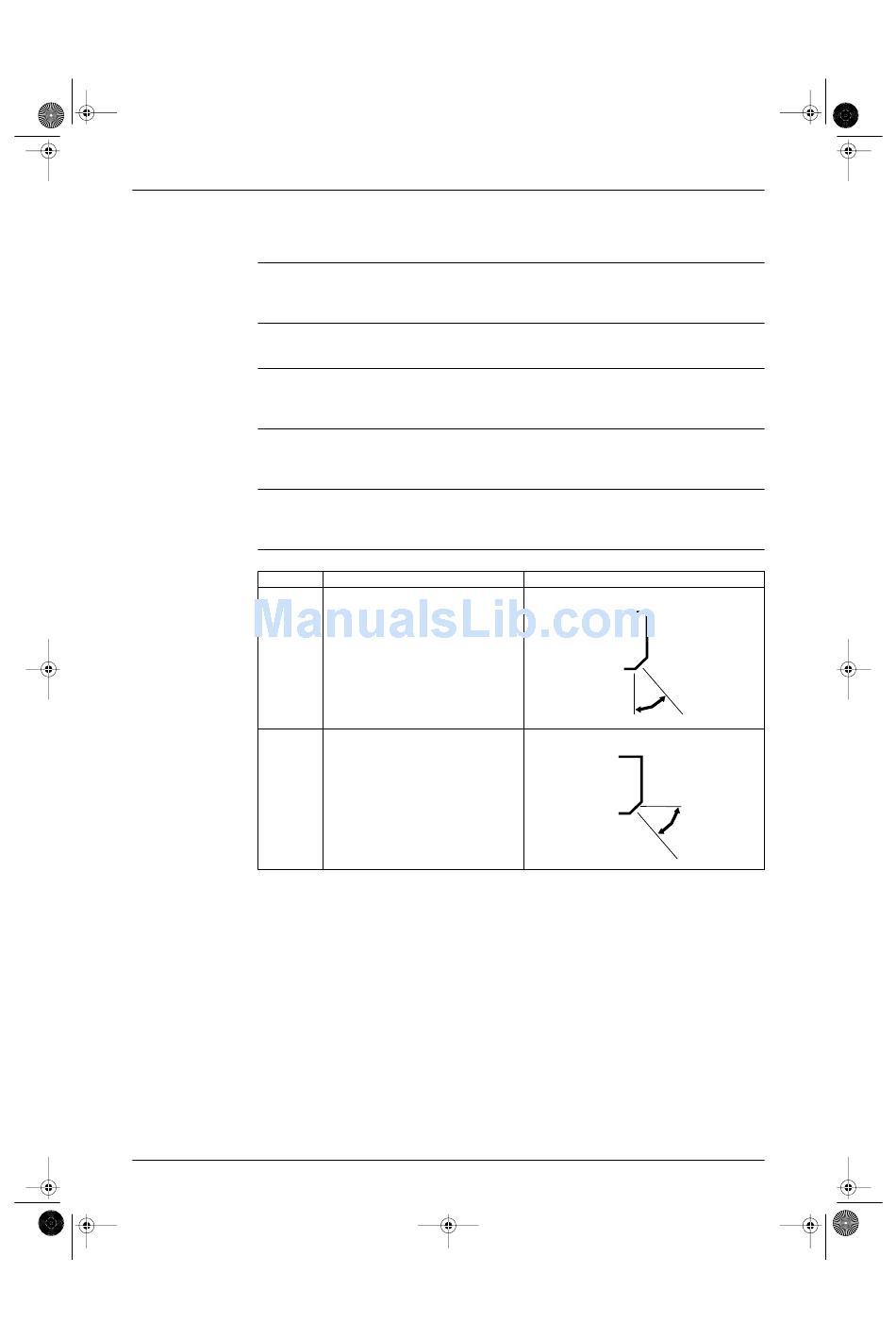

The following table explains the autoswing process for heating and cooling:
heating
cooling
Main Function
Item Description
The flap swings up and down as shown in
the drawing alongside.
The flap swings up and down as shown in
the drawing alongside.
General Functionality
Drawing
(RL004)
(RL005)
17
