For RK25J, RK35J, RX25J, RX35J
2.3

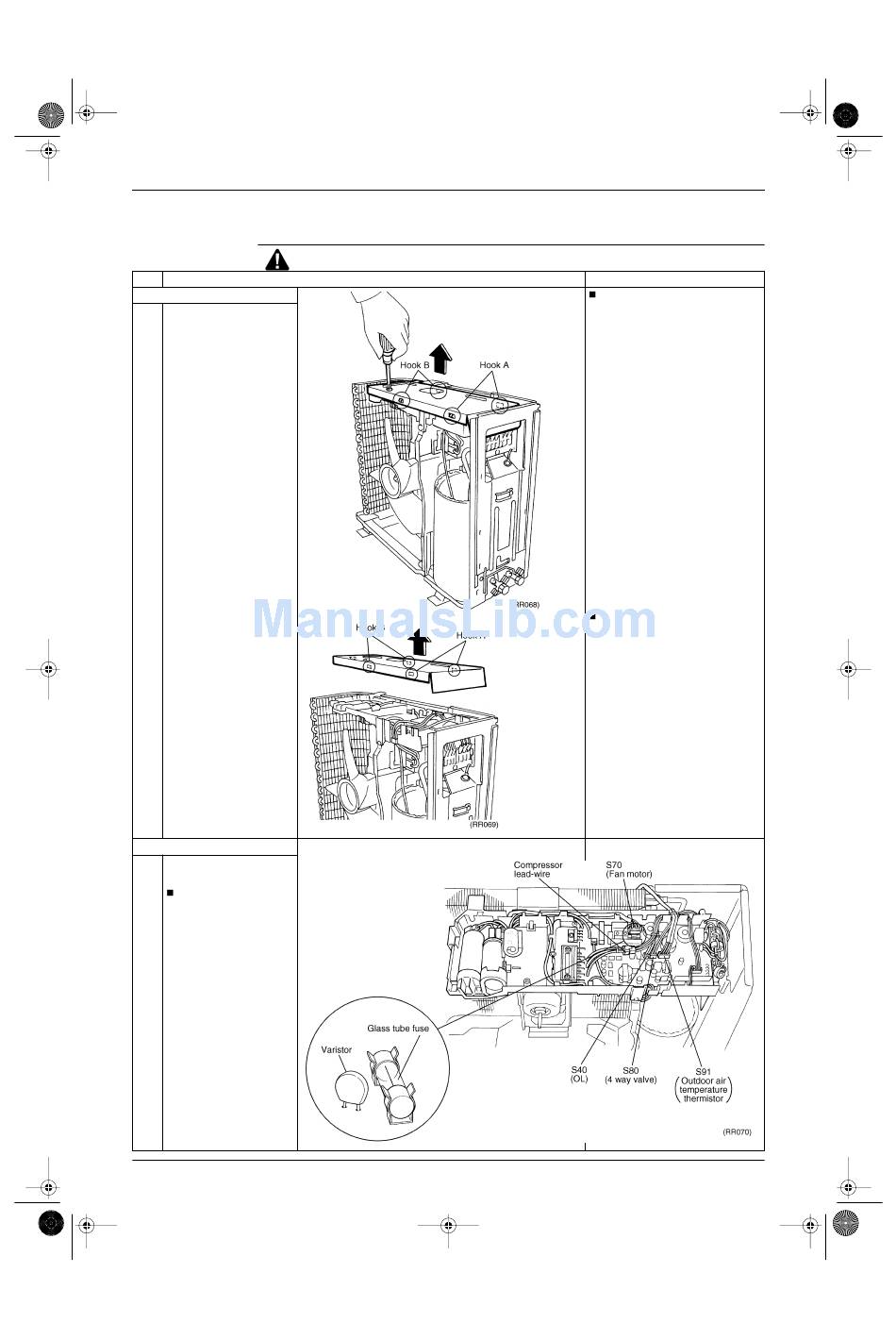

Removal of PC Board and Switch Box

Procedure
Step
1. To remove the shelter.
1 Remove the one fixed
screw and the four
portions of hooks A and B
for removing the shelter.
2 Remove the shelter.
2. To remove the wire harness
1 This shows the printed
circuit board.
A electronic expansion
valve (S20) is not
provided for the
overseas models
because a capillary
tube is adopted.
106
Warning Be sure to turn off all power supplies before disassembling work.
Procedure
SIE-86
Points
The shelter has five hooks.
Be sure to avoid forgetting to
restore the shelter and to avoid
loosing or damaging it.
Removal Procedure
