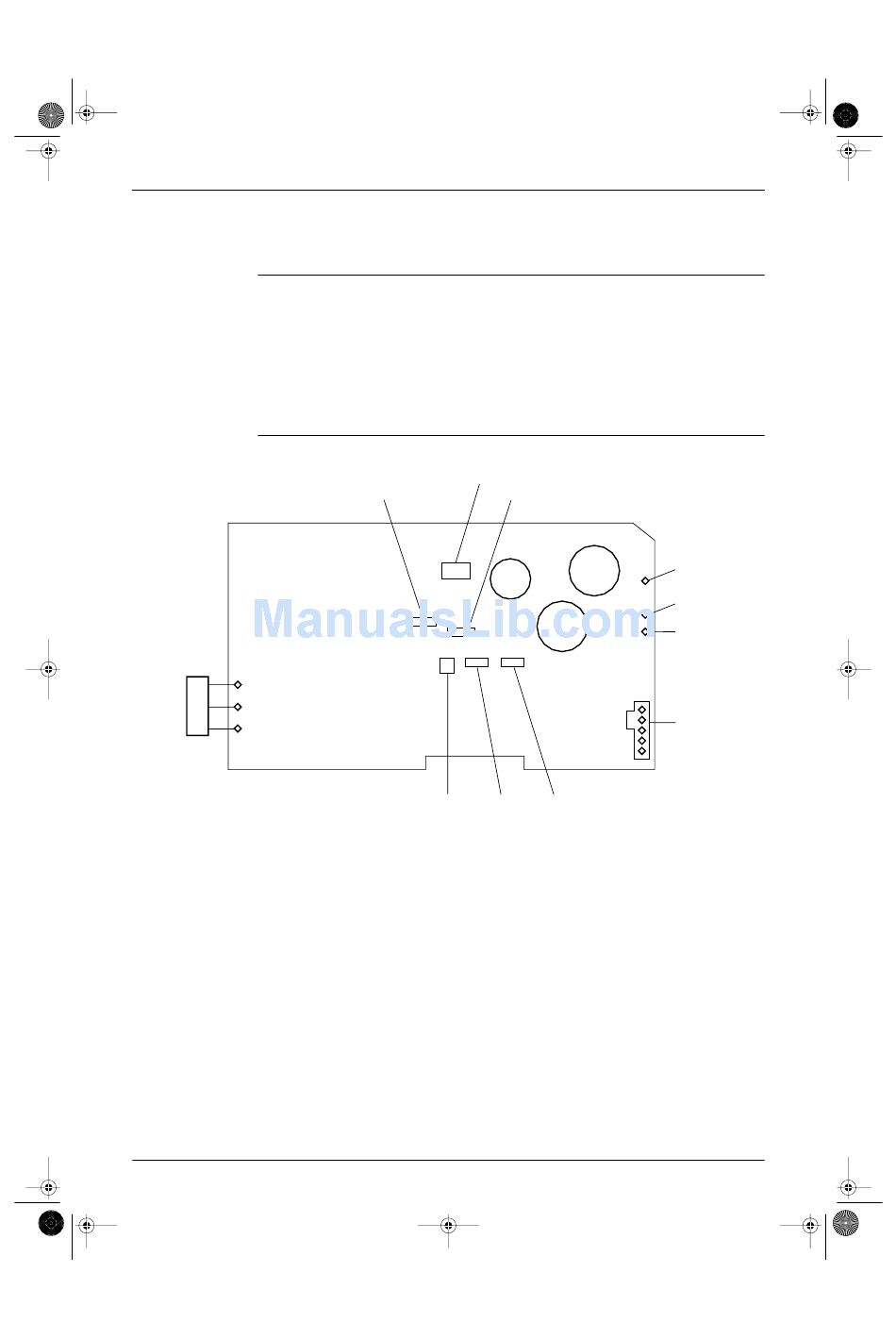

Printed Circuit Board Connector Wiring Diagram and Name
1.2

RK25/35J Series, RX25/35J Series

Printed circuit board (1) (Main-PCB)
Name of connector
1) S30
2) S70
3) S80
4) S91
5) S40
6) SW1
7) SW2
PCB (1)
S30
W
U
V
6
Connector for compressor motor (with internal thermostat)
Connector for fan motor
Connector for 4 WAY VALVE COIL (RX25 · 35J Series only)
Connector for THERMISTOR
Connector for OL
NONE (Forced operation ON/OFF switch)
NONE (Forced operation Mode selector switch (H/P only))
S70
V1
FU
S40 S80
N(NEUTRAL)
L(LIVE)
S(SIGNAL)
Service
Monitor
S91
Printed Circuit Board Connector Wiring Diagram
SIE-86
(RL002)
