INSTALLATION

MANUAL

R410A SPLIT SERIES

MODELS

FTXN25MV1B

FTXN35MV1B

FTXN50MV1B

FTXN60MV1B

FTXN25MV1

FTXN35MV1

FTXN50MV1

FTXN60MV1

FTK25JXV1

FTK35JXV1

FTK50JXV1

FTK60JXV1

RXN25MV1B

RXN35MV1B

RXN50MV1B

RXN60MV1B

RXN25MV1

RXN35MV1

RXN50MV1

RXN60MV1

RK25FXV1

RK35FXV1

RK50CXV1

RK60CXV1

Installation Manual

R410A Split Series

Manuale d'installazione

Serie Multiambienti R410A

Installationsanleitung

Split-Baureihe R410A

Manual de instalación

Serie Split R410A

Manuel d'installation

Série split R410A

Montaj kýlavuzlarý

R410A Split serisi

Руководство по монтажу

Серия R410A с раздельной установкой

IM-5WMYJ-1113(2)-DAIKIN

Part Number.: R08019039396B

English

Italiano

Deutsch

Español

Français

Türkçe

Русский

Table of Contents

Need help?

Do you have a question about the FTXN25MV1B and is the answer not in the manual?

Questions and answers

Summary of Contents for Daikin FTXN25MV1B

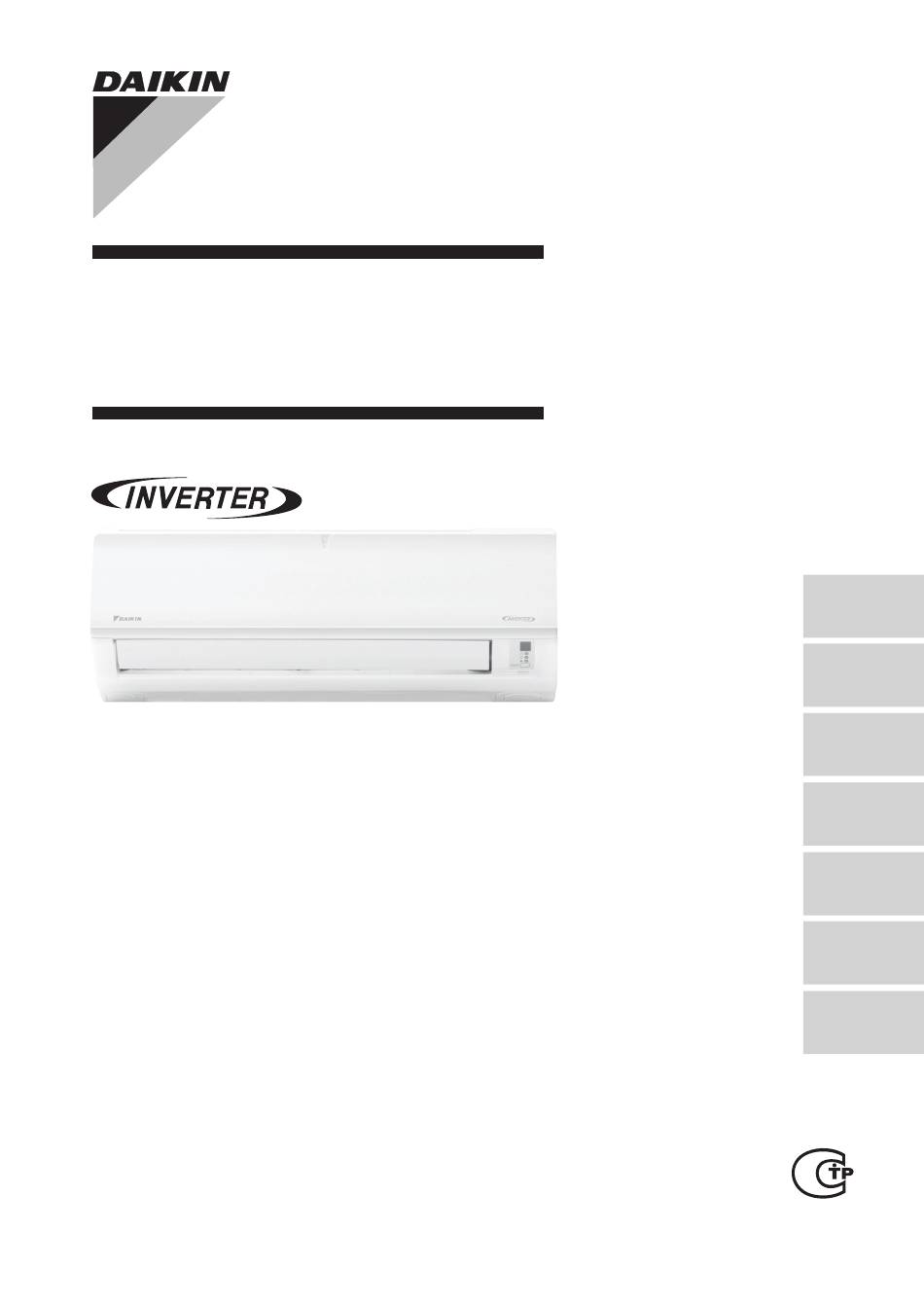

Page 1 INSTALLATION MANUAL R410A SPLIT SERIES Installation Manual English R410A Split Series Manuale d’installazione Italiano Serie Multiambienti R410A MODELS Installationsanleitung Deutsch Split-Baureihe R410A FTXN25MV1B RXN25MV1B FTXN35MV1B RXN35MV1B Manual de instalación Español FTXN50MV1B RXN50MV1B Serie Split R410A FTXN60MV1B RXN60MV1B Manuel d’installation Français Série split R410A...
Page 3: Outline And Dimensions
OUTLINE AND DIMENSIONS Indoor Unit [FTXN/FTK] THE MARK SHOWS PIPING DIRECTION REAR REAR LEFT RIGHT TOP VIEW NAME PLATE TERMINAL SIGNAL RECEIVER BLOCK WITH EARTH TERMINAL INDOOR UNIT SIDE VIEW ON/OFF SWITCH BOTTOM BOTTOM ROOM TEMPERATURE THERMISTOR (INSIDE) LOUVER FRONT GRILLE FIXED SCREWS (INSIDE) FRONT VIEW NOTE: PLEASE BASED ON ACTUAL INSTALLATION PLATE DESIGN IN THE UNIT FOR INSTALLATION PLATE...
Page 4 « Recommended mounting plate retention spots (5 spots in all) Through the wall hole Ø 65mm Drain hose position Liquid pipe end Gas pipe end ALTERNATIVE INSTALLATION PLATE 25/35 All dimensions are in mm Dimension Model 25/35 « Recommended mounting plate retention spots (7 spots in all) Through the wall hole Ø...
Page 5 Outdoor Unit [RXN/RK] All dimensions are in mm Dimension Model 25/35 550 658 All dimensions are in mm Dimension Model 50/60 Dimension Model 50/60...
Page 6: Safety Precautions
INSTALLATION MANUAL This manual provides the procedures of installation to ensure a safe and good standard of operation for the air conditioner unit. Special adjustment may be necessary to suit local requirement. Before using your air conditioner, please read this instruction manual carefully and keep it for future reference. This appliance is intended to be used by expert or trained users in shops, in light industry and on farms, or for commercial use by lay persons.
Page 7 IMPORTANT Important information regarding the refrigerant used This product contains fluorinated greenhouse gases covered by the Kyoto Protocol. Do not vent gases into the atmosphere. Refrigerant type: R410A value: 1975 GWP = Global Warming Potential Please fill in with indelible ink, 1 the factory refrigerant charge of the product, ¢...
Page 8: Installation Diagram
INSTALLATION DIAGRAM Indoor Unit Caulk pipe hole gap 30mm or more from ceiling Cut thermal insulation pipe to an with putty. appropriate length and wrap it with tape, making sure that no gap is left Front panel in the insulation pipe’s cut line. Wrap the insulation pipe with the finishing tape 50mm or more from walls...
Page 9 Drain work. (Heat Pump Unit Only) 1) Use drain plug for drainage. Drain water hole 2) If the drain port is covered by a mounting base or floor surface, place additional foot bases of at least 30mm in height under the outdoor unit’s feet.
Page 10: Installation Of The Indoor Unit
INSTALLATION OF THE INDOOR UNIT The indoor unit must be installed in such a way so as to prevent The refrigerant piping can be routed to the unit in a number short circuit of the cool discharged air with the hot return air. of ways (left or right from the back of the unit), by using the Please follow the installation clearance shown in the figure.
Page 11 Mounting Installation Plate Hole with cone drill Ensure that the wall is strong enough to withstand the weight of the unit. Otherwise, it is necessary to reinforce the wall Inside Outside Wall embedded pipe with plates, beams or pillars. Caulking (Field supply) Use the level gauge for horizontal mounting, and fix it with 5 suitable screws for FTXN/FTK 25/35 and 7 suitable screws...
Page 12: Refrigerant Piping
REFRIGERANT PIPING Allowable Piping Length If the pipe is too long, both the capacity and reliability of the unit will drop. As the number of bends increases, resistance to the flow of refrigerant system increases, thus lowering cooling capacity. As a result, the compressor may become defective. Always choose the shortest path and follow the recommendations as tabulated below: Indoor unit Outdoor Unit...
Page 13 REFRIGERANT PIPING Piping Works And Flaring Technique Figure I • Do not use contaminated or damaged copper tubing. If Cutting Copper Tube any piping, evaporator or condenser had been exposed or 1/4t had been opened for 15 seconds or more, the system must be vacuumed.
Page 14: Electrical Wiring Connection
ELECTRICAL WIRING CONNECTION IMPORTANT : * The figures shown in the table are for information purpose only. They should be checked and selected to comply with the local/national codes of regulations. This is also subject to the type of installation and conductors used.
Page 15: Special Precautions When Dealing With R410A Unit
SPECIAL PRECAUTIONS WHEN DEALING WITH R410A UNIT R410A is a new HFC refrigerant which does not damage the • Use tools and materials exclusively for refrigerant R410A. ozone layer. The working pressure of this new refrigerant is Tools exclusively for R410A are manifold valve, charging 1.6 times higher than conventional refrigerant (R22), thus hose, pressure gauge, gas leak detector, flare tools, torque proper installation/servicing is essential.
Page 16: Indicator Lights
INDICATOR LIGHTS IR Signal Receiver When an infrared remote control operating signal has been transmitted, the signal receiver on the indoor unit will respond as below to conﬁ rm acceptance of the signal transmission. ON to OFF 1 Long Beep OFF to ON 2 Short Beep Pump down / Cool force on...
Page 17: Operating Range
OPERATING RANGE Heat Pump Model Model: FTXN 25/35 RXN 25/35 COOLING HEATING 14 15 19 20 INDOOR TEMP (˚CWB) INDOOR TEMP (˚CDB) DB: Dry bulb WB: Wet bulb Model: FTXN 50/60 RXN 50/60 COOLING HEATING 14 15 19 20 INDOOR TEMP (˚CWB) INDOOR TEMP (˚CDB) DB: Dry bulb WB: Wet bulb...
Page 18: Air Filter
AIR FILTER 1. Open the front panel. 4. Clean or replace each filter. See figure. • Hold the panel at the recesses on the main unit • When shaking off remaining water, do not wring the (2 recesses on right and left sides) and lift it until it filter.
Page 19: Service And Maintenance
SERVICE AND MAINTENANCE Service Parts Maintenance Procedures Period Indoor air filter Remove any dust adhering to the filter by using a vacuum cleaner or wash At least once every in lukewarm water (below 40°C/104°F) with a neutral cleaning detergent. 2 weeks. Rinse the filter well and dry before placing it back onto the unit.
Page 20: Troubleshooting
! CAUTION • Don’t touch the metal parts of the indoor unit. It may cause an injury. • When removing or attaching the front panel, support the panel securely with hand to prevent it from falling. • For cleaning, do not use hot water above 40°C, benzine, gasoline, thinner, nor other volatile oils, polishing compound, scrubbing brushes, nor other hand stuff.
Page 21 Kita-ku, Osaka, 530-8323 Japan Tokyo ofﬁ ce: JR Shinagawa East Bldg., 2-18-1, Konan, P.O.Box 18674, Galleries 4, 11th Floor, Minato-ku, Tokyo, 108-0075 Japan Downtown Jebel Ali, Dubai, UAE. http://www.daikin.com/global/ Importer for Turkey Hürriyet Mahallesi Yakacık D-100 Kuzey Yanyol Caddesi No:49/1-2 Kartal − İstanbul...
