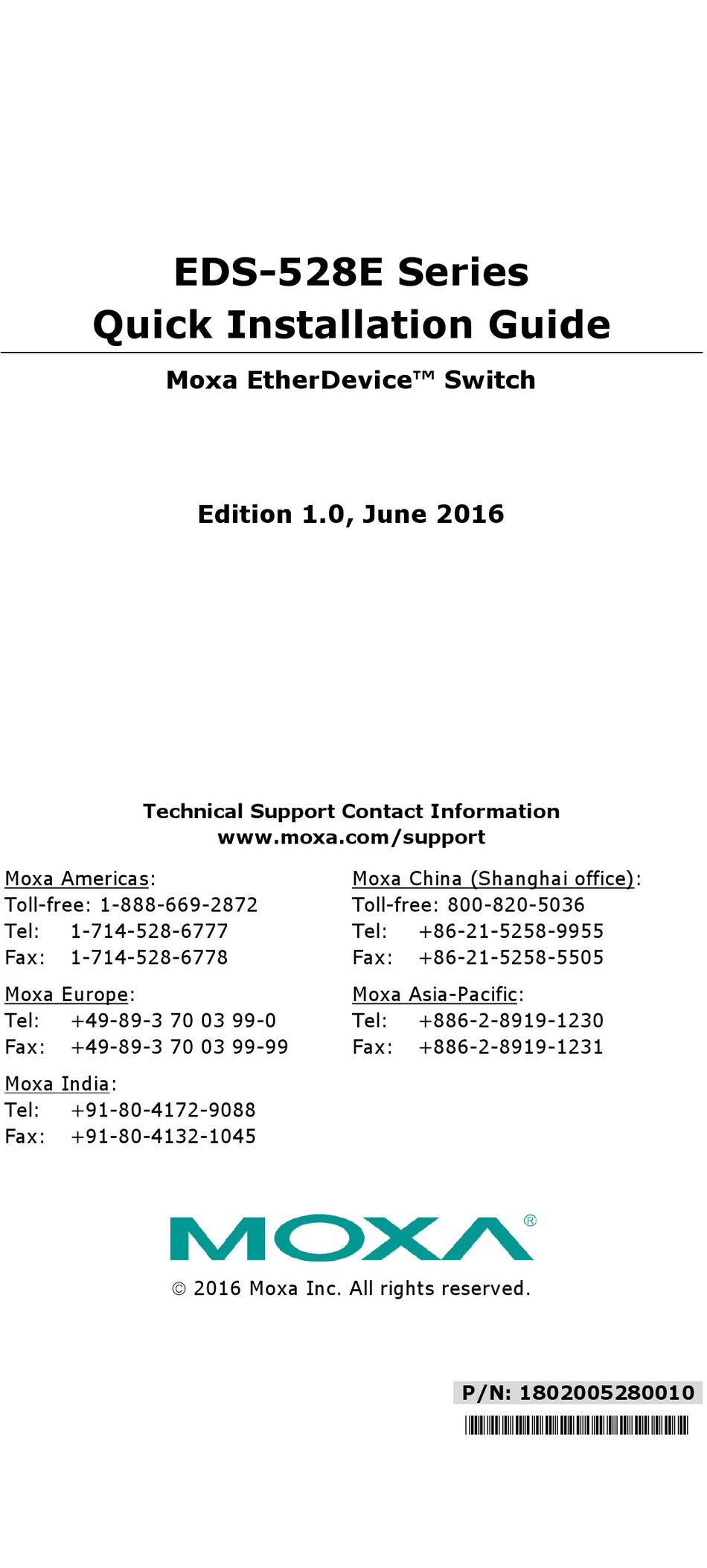

Quick Installation Guide
Moxa Americas:
Toll-free: 1-888-669-2872
Tel:
1-714-528-6777
Fax:
1-714-528-6778
Moxa Europe:
Tel:
+49-89-3 70 03 99-0
Fax:
+49-89-3 70 03 99-99
Moxa India:
Tel:
+91-80-4172-9088
Fax:
+91-80-4132-1045
EDS-528E Series
Moxa EtherDevice™ Switch
Edition 1.0, June 2016
Technical Support Contact Information
www.moxa.com/support
 2016 Moxa Inc. All rights reserved.
Moxa China (Shanghai office):
Toll-free: 800-820-5036
Tel:
+86-21-5258-9955
Fax:
+86-21-5258-5505
Moxa Asia-Pacific:
Tel:
+886-2-8919-1230
Fax:
+886-2-8919-1231
P/N: 1802005280010
*1802005280010*

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EDS-528E Series and is the answer not in the manual?

Questions and answers

Related Manuals for Moxa Technologies EDS-528E Series

Summary of Contents for Moxa Technologies EDS-528E Series

  • Page 1 EDS-528E Series Quick Installation Guide Moxa EtherDevice™ Switch Edition 1.0, June 2016 Technical Support Contact Information www.moxa.com/support Moxa Americas: Moxa China (Shanghai office): Toll-free: 1-888-669-2872 Toll-free: 800-820-5036 Tel: 1-714-528-6777 Tel: +86-21-5258-9955 Fax: 1-714-528-6778 Fax: +86-21-5258-5505 Moxa Europe: Moxa Asia-Pacific: Tel:...

  • Page 2: Package Checklist

    Package Checklist The EDS-528E is shipped with the following items. If any of these items are missing or damaged, please contact your customer service representative for assistance. • 1 EDS-528E Ethernet switch • USB cable • Protective caps for unused ports •...
  • Page 3 Panel Views of EDS-528E 1. Reset button 2. USB console port 3. DIP switches for Turbo Ring, Ring Master, and Ring Coupler 4. Grounding screw 5. 4-pin terminal block for digital input and power input 2 6. 4-pin terminal block for relay output and power input 1 7.

  • Page 4: Mounting Dimensions

    Mounting Dimensions Unit = mm (inch) - 4 -...

  • Page 5: Din-Rail Mounting

    EN 60715 standard. Installation STEP 1: Insert the upper lip of the DIN rail into the DIN-rail mounting kit. STEP 2: Press the EDS-528E series towards the DIN rail until it snaps into place. Removal STEP 1: Pull down the latch on the mounting kit with a screwdriver.

  • Page 6: Wall Mounting (Optional)

    M3 screws, as shown in the figure at the right. STEP 2: Mounting the EDS-528E series on a wall requires 4 screws. Use the EDS-528E, with wall mount plates attached, as a guide to mark the correct locations of the 4 screws. The heads of the screws should be less than 6.0 mm in diameter, and the shafts...

  • Page 7: Wiring Requirements

    Wiring Requirements WARNING Do not disconnect modules or wires unless power has been switched off or the area is known to be non-hazardous. The devices may only be connected to the supply voltage shown on the type plate. The devices are designed for operation with a Safety Extra-Low Voltage.

  • Page 8: Wiring The Relay Contact

    Wiring the Relay Contact The EDS-528E series has one relay output. This relay contact uses two contacts of the terminal block on the EDS-528E’s top panel. Refer to the next section for detailed instructions on how to connect the wires to the terminal block connector, and how to attach the terminal block connector to the terminal block receptor.

  • Page 9: Wiring The Digital Inputs

    Wiring the Digital Inputs The EDS-528E has one digital input (DI). The DI consists of two contacts of the 4-pin terminal block connector on the EDS-528E’s top panel, which are used for the two DC inputs. The top view of the terminal block connectors is shown here.

  • Page 10: 10/100Baset(X) Ethernet Port Connection

    ABC-02-USB Installation Plug the ABC-02-USB into the USB storage port of the Moxa EDS-528E. The ABC-02-USB can be secured to the wall with an M4 screw. USB Storage Port (Type A Connector) Pinouts Description VCC (+5V) D– (Data–) D+ (Data+) GND (Ground) 10/100BaseT(X) Ethernet Port Connection The 10/100BaseT(X) ports located on the EDS-528E’s front panel are...

  • Page 11: 1000Baset Ethernet Port Connection

    RJ45 (8-pin) to RJ45 (8-pin) Cross-Over Cable Wiring 1000BaseT Ethernet Port Connection 1000BaseT data is transmitted on differential TRD+/- signal pairs over copper wires. MDI/MDI-X Port Pinouts Signal TRD(0)+ TRD(0)- TRD(1)+ TRD(2)+ TRD(2)- TRD(1)- TRD(3)+ TRD(3)- 100/1000BaseSFP (mini-GBIC) Fiber Port The Gigabit Ethernet fiber ports on the EDS-528E are 100/1000BaseSFP fiber ports, which require using 100M or 1G mini-GBIC fiber transceivers to work properly.

  • Page 12: Reset Button

    ATTENTION This is a Class 1 Laser/LED product. To avoid causing serious damage to your eyes, do not stare directly into the Laser Beam. Reset Button The Reset Button supports two functions. One is to reset the Ethernet switch to factory default settings by pressing and holding the Reset button for 5 seconds.
  • Page 13 NOTE You must enable the Turbo Ring function first before using the DIP switch to activate the Master and Coupler functions. NOTE If you do not enable any of the EDS-528E series switches to be the Ring Master, the Turbo Ring protocol will automatically choose the EDS-528E series with the smallest MAC address range to be the Ring Master.

  • Page 14: Led Indicators

    LED Indicators The front panel of the Moxa EDS-528E has several LED indicators. The function of each LED is described in the following table: Color Status Description The system passed the self-diagnosis test on boot-up and is ready to run. •...

  • Page 15: Specifications

    Color Status Description 1. The switch’s ring coupling or dual homing function is enabled. 2. The switch is set as the Tail of the Turbo Chain. 3. POST S.W. Fail (+Stat on and Fault blinking) CPLR/ 1. Turbo Chain is down. Green TAIL 2.

  • Page 16: Physical Characteristics

    Protocols IGMPv1/v2/v3, GMRP, GVRP, SNMPv1/v2c/v3, DHCP Server/Client, DHCP Option 66/67/82, BootP, TFTP, SNTP, SMTP, RARP, RMON, HTTP, HTTPS, Telnet, SSH, Syslog, EtherNet/IP, PROFINET, Modbus/TCP, SNMP Inform, LLDP, IEEE 1588 v2 PTP, IPv6, NTP Server/Client MIB-II, Ethernet-Like MIB, P-BRIDGE MIB, Q-BRIDGE MIB, Bridge MIB, RSTP MIB, RMON MIB Group 1, 2, 3, 9 Flow Control IEEE 802.3x flow control, back pressure flow control...
  • Page 17 IEC 61000-4-2 ESD: Contact: 8 kV; Air: 15 kV IEC 61000-4-3 RS: 80MHz to 1GHz: 20 V/m IEC 61000-4-4 EFT: Power: 4 kV; Signal: 4 kV IEC 61000-4-5 Surge: Power 2 kV; Signal: 4 kV IEC 61000-4-6 CS: 10V IEC 61000-4-8 Shock IEC 60068-2-27 Free Fall...
