- Page 1 Moxa EtherDevice™ Switch EDS-P506A-4PoE Series Hardware Installation Guide First Edition, July 2010 © 2010 Moxa Inc. All rights reserved. Reproduction without permission is prohibited. P/N: 1802005060010...
-
Page 2: Package Checklist

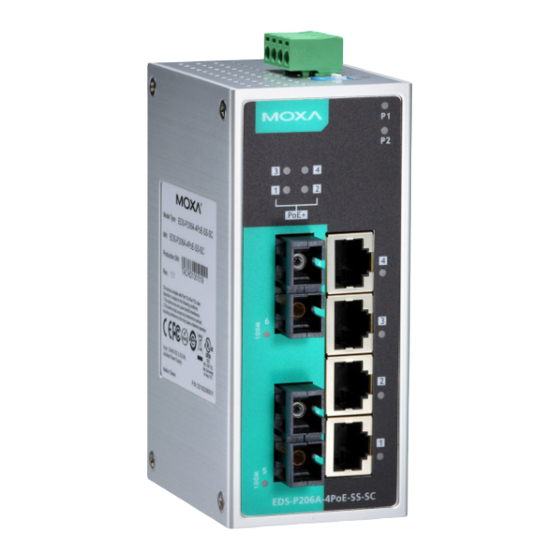

Overview The Moxa EtherDevice™ EDS-P506A-4PoE Series Ethernet switches are managed redundant Ethernet switches that come standard with 4 10/100BaseT(X) 802.3at/af (PoE/PoE+) compliant Ethernet ports, and 1 or 2 10/100BaseT(X) Ethernet ports or 1 or 2 100BaseFX (SC/ST-type connector) fiber ports. The EDS-P506A-4PoE Ethernet switches provide up to 30 watts of power per PoE port, and allow power to be supplied to connected devices (such as surveillance cameras, wireless access points, and IP phones) when power is not readily available or cost-prohibitive to provide locally. -
Page 3: Table Of Contents
EDS-P506A-4PoE Panel Views (standard type) EDS-P506-4PoE Front Panel View Grounding screw Terminal block for power input PWR1/PWR2 and relay output Heat dissipation orifices Console port DIP switches MSTR/ HEAD Power input PWR1 LED CPLR/ TAIL Power input PWR2 LED Fault LED MSTR/HEAD LED indicator 10. -
Page 4: Front Panel View
EDS-P506A-4PoE Panel Views (SC-type) EDS-P506A-4PoE-MM-SC/ EDS-P506A-4PoE-SS-SC Grounding screw Front Panel View Terminal block for power input PWR1/PWR2 and relay output Heat dissipation orifices Console port DIP switches Power input PWR1 LED Power input PWR2 LED Fault LED MSTR/HEAD LED indicator CPLR/TAIL LED indicator Turbo Chain logo TP port’s 100 Mbps LED... -
Page 5: Heat Dissipation Orifices
EDS-P506A-4PoE Panel Views (ST-type) EDS-P506A-4PoE-MM-ST Front Panel View Grounding screw Terminal block for power input PWR1/PWR2 and relay output Heat dissipation orifices Console port DIP switches Power input PWR1 LED Power input PWR2 LED Fault LED MSTR/HEAD LED indicator CPLR/TAIL LED indicator Turbo Chain logo TP port’s 100 Mbps LED TP port’s 10 Mbps LED... - Page 6 Mounting Dimensions 15mm(0.59in) 30mm(1.18in) DlN-Rail Kit 131.5mm(5.18in) 80.05mm(3.15in) Side View Front View 70mm(2.76in) Wall Mounting Kit DlN-Rail Kit Wall Mounting Kit 30.5mm(1.2in) Rear View 34mm(1.34in) 51.6mm(2.03in) DIN-Rail Mounting The aluminum DIN-Rail attachment plate should already be fixed to the back panel of the EDS-P506A-4PoE when you take it out of the box.
- Page 7 Wall Mounting (Optional) For some applications, you will find it convenient to mount the Moxa EDS-P506A-4PoE on the wall, as shown in the following illustrations: STEP 1—Remove the aluminum DIN-Rail attachment plate from the rear panel of the EDS-P506A-4PoE, and then attach the wall mount plates with M3 screws, as shown in the figure to the right.
-
Page 8: Wiring Requirements
Wiring Requirements WARNING Do not disconnect modules or wires unless power has been switched off or the area is known to be non-hazardous. The devices may only be connected to the supply voltage shown on the type plate. The devices are designed for operation with a Safety Extra-Low Voltage. - Page 9 Grounding the Moxa EDS-P506A-4PoE Grounding and wire routing help limit the effects of noise due to electromagnetic interference (EMI). Run the ground connection from the ground screw to the grounding surface prior to connecting devices. ATTENTION This product is intended to be mounted to a well-grounded mounting surface such as a metal panel.
- Page 10 Wiring the Digital Inputs The EDS-P506A-4PoE has two sets of digital inputs, DI 1 and DI 2. Each DI consists of two contacts of the 6-pin terminal block connector on the EDS-P506A-4PoE’s top panel, which are used for the two DC inputs. The top and front views of one of the terminal block connectors are shown here.
- Page 11 “Turbo Ring” DIP Switch Settings DIP 1 DIP 2 DIP 3 DIP 4 ON: Enables this ON: Enables the ON: Activates EDS as the Ring default “Ring DIP switches 1, Master. Coupling” ports. 2, 3 to configure “Turbo Ring” Reserved for settings.
-
Page 12: Led Indicators
LED Indicators The front panel of the Moxa EDS-P506A-4PoE contains several LED indicators. The function of each LED is described in the following table: Color State Description Power is being supplied to power input AMBER PWR1 Power is not being supplied to power input P1. -
Page 13: Specifications
Specifications of the EDS-P506A-4PoE Series Auto MDI/MDI-X Connection The Auto MDI/MDI-X function allows users to connect the EDS-P506A-4PoE’s 10/100BaseTX ports to any kind of Ethernet device, without needing to pay attention to the type of Ethernet cable being used for the connection. - Page 14 Interface RJ45 Ports 10/100BaseT(X) auto negotiation speed, F/H duplex mode, and auto MDI/MDI-X connection Fiber Ports 100BaseFX ports (SC/ST connector) Console RS-232 (RJ45) LED Indicators PWR1, PWR2, FAULT, 10/100M (TP port), 100M (fiber port), MSTR/HEAD and CPLR/TAIL, PoE Relay Contact Two relay outputs with current carrying capacity of 1 A @ 24 VDC DIP Switches...
- Page 15 Environmental Operating Temperature 0 to 60°C (32 to 140°F), -40 to 75°C (-40 to 167°F ) for -T models Storage Temperature -40 to 85°C (-40 to 185°F) Ambient Relative 5 to 95% (non-condensing) Humidity Regulatory Approvals Safety UL 508 (Pending) FCC Part 15, CISPR (EN55022) class A EN61000-4-2 (ESD), Level 3 EN61000-4-3 (RS), Level 3...
