Ultra SAM4W User Guide V1.3

2 Hardware Description

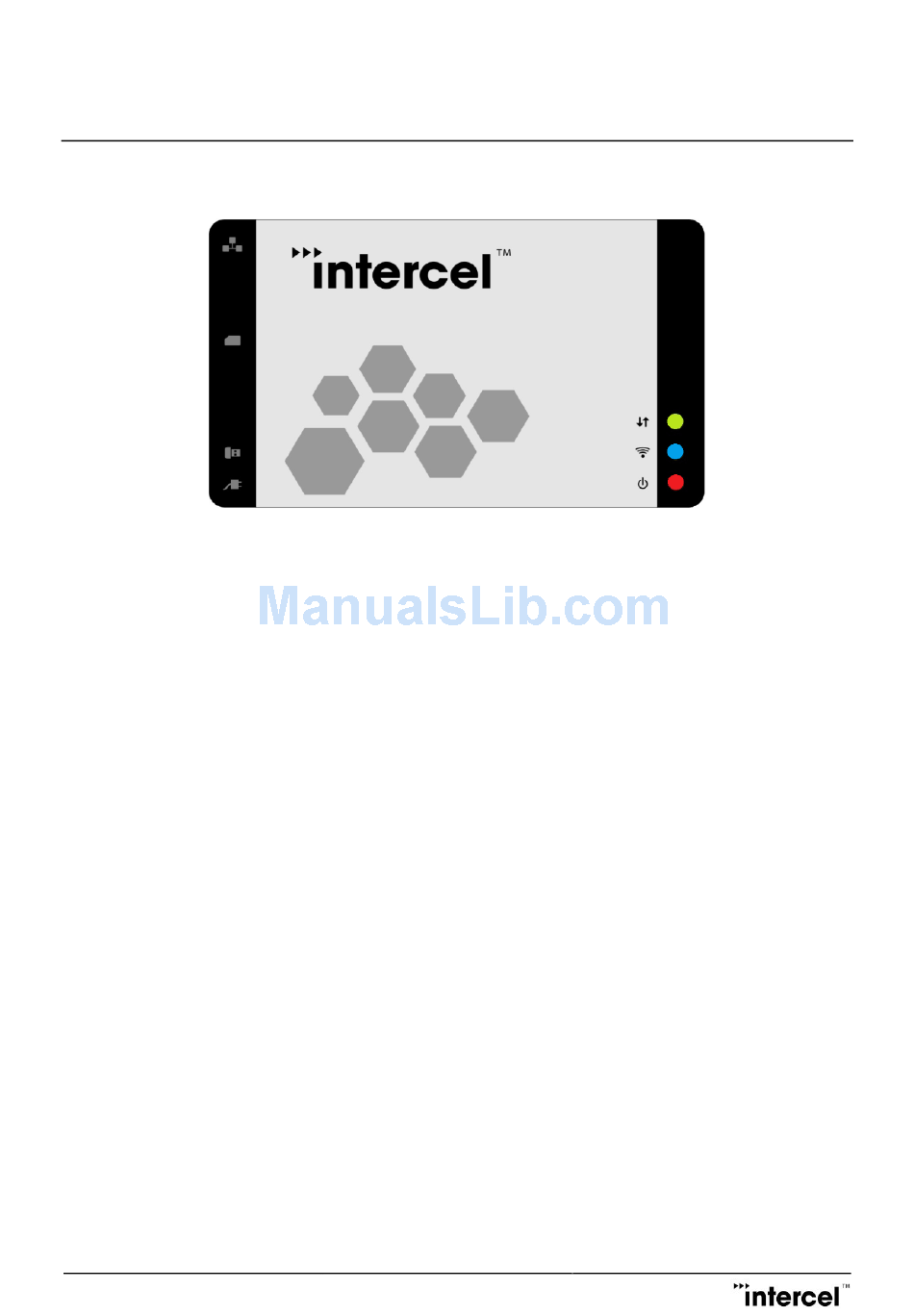

2.1 Front Panel

LAN
SIM
USB Host
Power Supply

2.1.1 Front Panel LEDs

3 LEDs indicate different modem's status:
Power LED
Turns ON when power is applied and system initialization is successful.
Blinking LED means SIM card not properly installed or system initialization failed. The modem will go into
non-WAN mode (standby condition).
Stays OFF when main power is off.
LAN Network LED
Blinking when packet switched data is being transferred through the modem
Stays OFF when there is no network activity.
WWAN LED
Stays ON when connected to the 3G/4G network.
Stays OFF when disconnected to from the 3G/4G network.

2.1.2 Logos Indication

Ethernet Port – UltraSAM4W and PC connection interface
SIM Card – SIM Card Holder
USB Host – USB Port; support uZiP ZigBee Dongle (not included in the package)
Power Supply – Input Power Supply (Microfit connector)
5 Ver1.3
WWAN LED
LAN Network LED
Power LED
