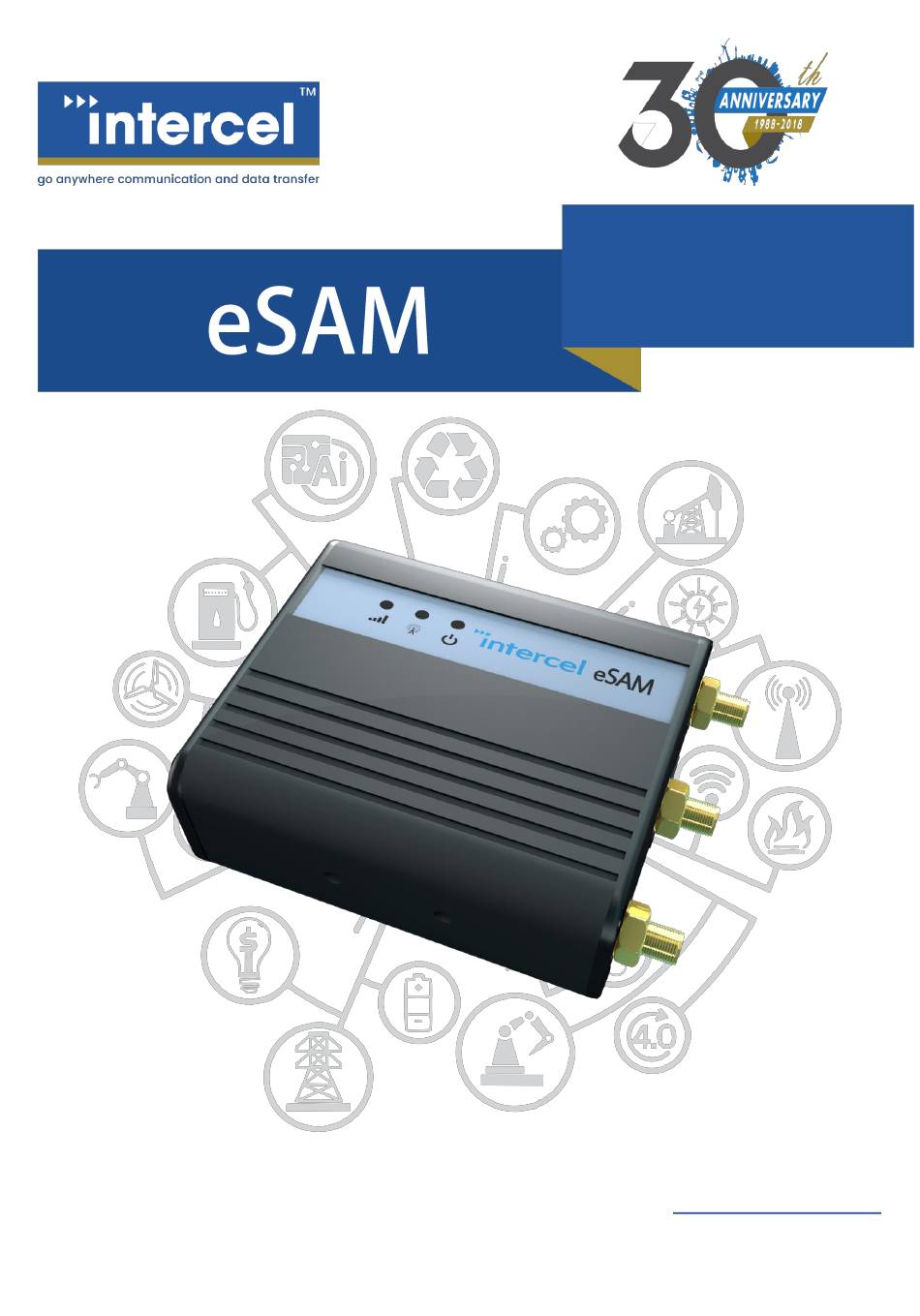

Page 1 IP Passthrough USER GUIDE www.intercel.com.au...
Page 2 TCP/IP Standards. This guide will explain how to configure the eSAM to provide it’s IP address directly to the connected device. This will disable most of the functionality within the eSAM and turn it into a simple IP modem.
Page 3 This functionality requires a recent build of the eSAM firmware. Please check that the build time of your modem is later than 180528 (28 March 2018). To enable IP passthrough, follow these steps: 1. Ensure that your modem has the correct configuration to match your SIM card. It is important that your...
Page 4 2. Open the Network>DHCP Server window and disable the DHCP server. 3. Open the Network > Modem window and select ‘modify’ on the connection you are using to connect to the mobile network.
Page 5 4. Change the connection type to bridge. 5. Make sure that the computer or device you are connecting to the eSAM has DHCP enabled. This is important, as the computer needs to accept the IP address offered to it by the ISP. Mobile services will have a specific...
Page 6 6. Restart the eSAM. On rebooting, the eSAM’s network and signal lights will start blinking as it attempts to connect to the 4G network. Once it has a connection, it will pass this IP address through to your connected device.
