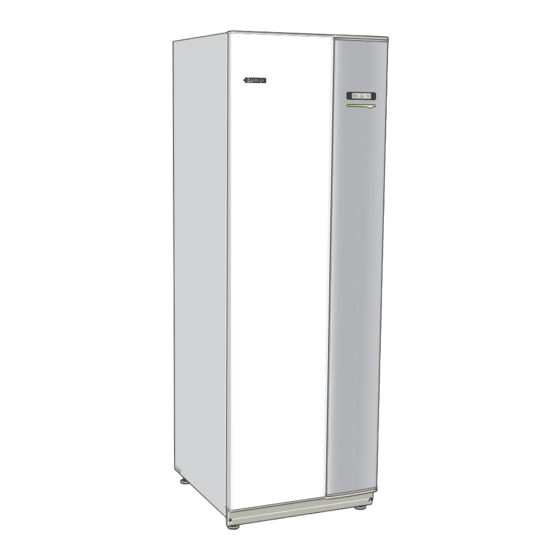

Nibe F1355 Operating Manual

Ground source heat pump
Hide thumbs Also See for NIBE F1355:

Advertisement

Operating manual
NIBE F1355
Ground source heat pump
OHB GB 1716-2
431340

Advertisement

Table of Contents
loading

Summary of Contents for Nibe NIBE F1355

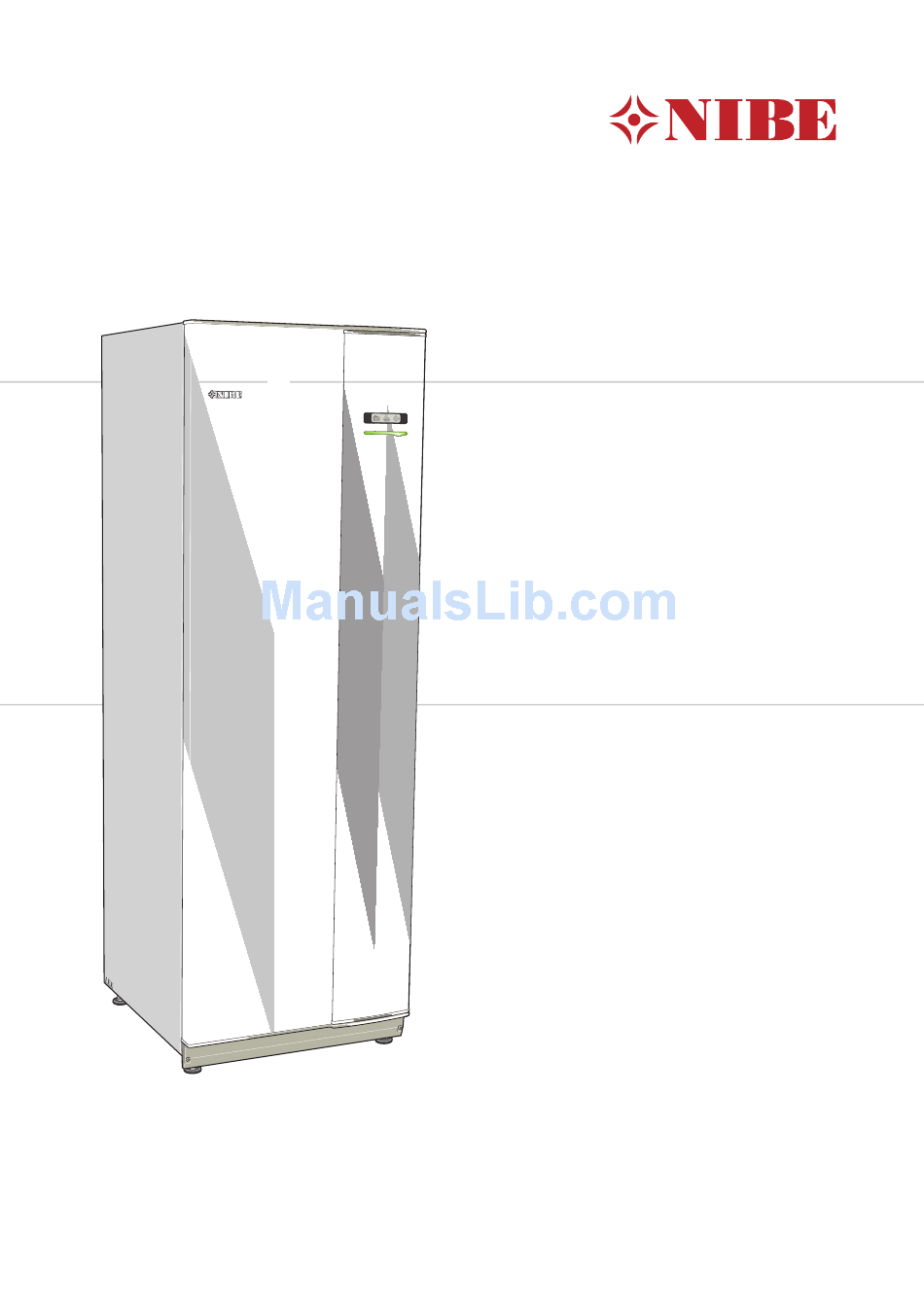

  • Page 1 Operating manual NIBE F1355 Ground source heat pump OHB GB 1716-2 431340...
  • Page 2 Quick guide Navigation Ok button (confirm/select) Back button (back/undo/exit) Control knob (move/increase/reduce) A detailed explanation of the button functions can be found on page 7. How to scroll through menus and make different settings is described on page 9. Set the indoor climate INDOOR CLIMATE HOT WATER HEAT PUMP...
  • Page 3: Table Of Contents

    Menu 2 – HOT WATER Menu 3 – INFO Menu 4 – HEAT PUMP Menu 5 - SERVICE 4 Service Service actions 5 Disturbances in comfort Info-menu Troubleshooting Alarm list Item register Contact information NIBE F1355 Table of Contents |...
  • Page 4: Important Information

    1.9.1.1 heating curve (curve slope) Serial number must always be given Certification that the installation is carried out according to instructions in the accompanying installer manual and applicable regulations. Date __________________ Signed _________________________ Chapter 1 | Important information NIBE F1355...
  • Page 5: Safety Information

    Classification of enclosure of electro-technical tain the appliance unsupervised. equipment. This is an original manual. It may not be Danger to person or machine. translated without the approval of NIBE. We reserve the right to make design modifications without prior notice. ©NIBE 2017. NOTE...
  • Page 6: Safety Precautions

    Wait at least 5 minutes, otherwise there is a risk of water leakage or breakdown. Do not control the system with the main switch. This can cause fire or water leakage. In addition, the fan can start unexpectedly, which can cause personal injury. Chapter 1 | Important information NIBE F1355...
  • Page 7: Control - Introduction

    The control knob can be turned to the right or left. You can: ■ scroll in menus and between options. ■ increase and decrease the values. ■ change page in multiple page instructions (for example help text and service info). NIBE F1355 Chapter 2 | Control - Introduction...
  • Page 8: Menu System

    See page 20. normal setting. Menu 4 - HEAT PUMP Accessory NIBE FLM is needed. Setting time, date, language, display, operating mode This symbol indicates whether solar heating etc. See page 22.
  • Page 9: Selecting Menu

    To select another option: 1. Mark the applicable option. One of the options is pre-selected (white). 2. Press the OK button to confirm the selected op- tion. The selected option has a green tick. NIBE F1355 Chapter 2 | Control - Introduction...
  • Page 10 (at the page number) has been marked. 2. Press the OK button to skip between the steps in the start guide. If the start guide is left on this page it closes automatically in 60 min Chapter 2 | Control - Introduction NIBE F1355...
  • Page 11: Control - Menus

    The value in the display appears as a temperature in °C sensor and cooling function. if the climate system is controlled by a room sensor. NIBE F1355 Chapter 3 | Control - Menus...
  • Page 12 Scheduling always starts on the date that the start time is set for. Menu 1.2 - ventilation (accessory required) Setting range: normal and speed 1-4 Default value: normal Chapter 3 | Control - Menus NIBE F1355...
  • Page 13 The optimum slope depends on the climate conditions Time period Adjusting Conflict in your location, if the house has radiators or under floor heating and how well insulated the house is. NIBE F1355 Chapter 3 | Control - Menus...
  • Page 14 This means that F1355 never calculates a 2. Press the OK button. temperature lower than that set here. Chapter 3 | Control - Menus NIBE F1355...
  • Page 15 Factory setting: 18 You can use F1355 to cool the house during hot periods of the year. Caution Certain setting options only appear if their function is installed and activated in F1355. NIBE F1355 Chapter 3 | Control - Menus...
  • Page 16 If it is cold in the house, at, for example -2 °C, "outdoor temp. point" is set to "-2" and "change in curve" is increased until the desired room temperature is maintained. Chapter 3 | Control - Menus NIBE F1355...
  • Page 17 4 until one of the conditions is no longer met. Caution Night cooling can only be activated when house heating has been deactivated. This is done in menu 4.2. NIBE F1355 Chapter 3 | Control - Menus...
  • Page 18: Menu 2 - Hot Water

    Adjusting: Set the hot water comfort that is to apply Select “off" to switch off temporary lux during scheduling here. Conflict: If two settings conflict with each other a red exclamation mark is displayed. Chapter 3 | Control - Menus NIBE F1355...
  • Page 19 "operating time" decide how long the hot water circula- tion pump must run per operating instance. "downtime" decide how long the hot water circulation pump must be stationary between operating instances. NIBE F1355 Chapter 3 | Control - Menus...
  • Page 20: Menu 3 - Info

    Ventilation Menu 3.2 - compressor info Information about the compressors' operating status and statistics in the installation can be obtained here. No changes can be made. Chapter 3 | Control - Menus NIBE F1355...
  • Page 21 The average outdoor temperature is only shown if a room temperature sensor/room unit is installed. When an exhaust air module (NIBE FLM) is installed, the exhaust air temperature is shown. To read off an average temperature 1.
  • Page 22: Menu 4 - Heat Pump

    4 - HEAT PUMP 4.1 - plus functions * 4.1.1 - pool 1 * 4.1.2 - pool 2 * 4.1.3 - internet 4.1.3.1 - NIBE Uplink 4.1.3.8 - tcp/ip settings 4.1.3.9 - proxy settings 4.1.4 - sms * 4.1.5 - SG Ready 4.1.6 - smart price adaption...
  • Page 23 Menu 4.1.3.9 - proxy settings A connected user has a user account in NIBE Uplink , which has been given permission to control and/or You can set proxy settings for your installation here.
  • Page 24 Smart price adaption™ and you have an ac- tivated NIBE Uplink account. NOTE Telephone numbers provided must be able to area receive SMS messages.
  • Page 25 The function is based on hourly rates for the price can only be used if you have an hourly tariff next 24 hours being retrieved via NIBE Uplink and agreement with your electricity supplier. therefore an internet connection and an account for *The currency varies depending on the country selected.
  • Page 26 (crossed out = not permitted) and selectable al- ternatives to the right. To select selectable functions that pump is connected to NIBE Uplink. To obtain are permitted or not, mark the function using the control the correct time, the time zone must be set.
  • Page 27 If accessories for cooling are present or if the heat pump has the integrated cooling function you can also select the start temperature for cooling. Select the average outdoor temperatures in this menu. NIBE F1355 Chapter 3 | Control - Menus...
  • Page 28 Scheduling then stops at the set stop time the day after. Scheduling always starts on the date that the start time is set for. Caution Long term blocking can cause reduced comfort and operating economy. Chapter 3 | Control - Menus NIBE F1355...
  • Page 29: Menu 5 - Service

    Operating settings for the heat ents in the heat pump. pump. start guide Manual start of the start guide which is run the first time the heat pump is started. NIBE F1355 Chapter 3 | Control - Menus...
  • Page 30 “delta temp” is recommended for heaters with charge coil, “target temp” for double-jacketed heaters condenser supply (BT12), you can set a fixed offset here to compensate for the difference. and heaters with hot water coil. Chapter 3 | Control - Menus NIBE F1355...
  • Page 31 Select “alarm activated" to activate the alarm. (the brine pump then runs in manual operation). NIBE F1355 Chapter 3 | Control - Menus...
  • Page 32 QN10), whether binary stepping is to be "auto" if the speed of the heating medium pump is to used and the size of the fuse. be regulated automatically (factory setting) for optimal operation. Chapter 3 | Control - Menus NIBE F1355...
  • Page 33 The parameters for the setting range differ depending on which product is controlled by the setting. NOTE A large blocked frequency range can cause the compressor to run jerkily. NIBE F1355 Chapter 3 | Control - Menus...
  • Page 34 Reversing valves for hot water, cooling re- spectively pool control. The designations above the reversing valve indicate where it is electrically connected (EB100 = Master, CL11 = Pool 1 etc.). Hot water charging Chapter 3 | Control - Menus NIBE F1355...
  • Page 35 When the function has been activated, the cooling settings are displayed in the menu system. See the accessory installation instructions for function description. See the accessory installation instructions for function description. NIBE F1355 Chapter 3 | Control - Menus...
  • Page 36 See the accessory installation instructions for function description. Chapter 3 | Control - Menus NIBE F1355...
  • Page 37 Set the temperature at which the mixing valve is to restrict hot water from the water heater. NIBE F1355 Chapter 3 | Control - Menus...
  • Page 38 Here you set the amount of energy each pulse is to correspond to. pulses per kWh: Here you set the number of pulses per kWh that are sent to F1355. Chapter 3 | Control - Menus NIBE F1355...
  • Page 39 The date, time and ID no. (unique to certain settings) and the new set value is shown for every change. NOTE The change log is saved at restart and remains unchanged after factory setting. NIBE F1355 Chapter 3 | Control - Menus...
  • Page 40: Service

    Servicing should only be carried out by persons with the necessary expertise. When replacing components on F1355 only re- placement parts from NIBE may be used. Emergency mode NOTE Switch (SF1) must not be moved to " " or "...
  • Page 41 F1355 is running, be prepared for the screwdriver to jerk when the pump starts. Vent screw (QM5) Luftningsskruv The image shows an example of what a circulation pump can look like. NIBE F1355 Chapter 4 | Service...
  • Page 42 Remove the side panel to be able to remove the dis- play unit (this procedure need only be done if you are going to pull out the upper cooling module). Remove the screws (two for each cooling module). Chapter 4 | Service NIBE F1355...
  • Page 43 Remove the two screws holding the display unit in the frame (this procedure only needs to be done if you are going to pull out the upper cooling module). NIBE F1355 Chapter 4 | Service...
  • Page 44 The cooling module is installed in reverse order. NOTE At reinstallation, new O-rings must replace the existing ones at the connections to the heat pump (see image). Chapter 4 | Service NIBE F1355...
  • Page 45 The display unit is equipped with a USB socket that can memory must contain files with software for be used to update the software, save logged information F1355 from NIBE. and manage the settings in F1355. INDOOR CLIMATE HOT WATER...
  • Page 46 2. Tick “activated". 3. The present values from F1355 are saved in a file in the USB memory at the set interval until “activated" is unticked. NOTE Untick "activated" before removing the USB memory. Chapter 4 | Service NIBE F1355...
  • Page 47: Disturbances In Comfort

    Too low or no operating prioritisation of hot water. ■ Enter menu 4.9.1 and increase the time for when – If the alarm does not reset, contact your installer for hot water is to be prioritised. suitable remedial action. NIBE F1355 Chapter 5 | Disturbances in comfort...
  • Page 48 "heating curve" needs adjusting up. This part of the fault-tracing chapter only applies if the Too low or no operating prioritisation of heat. ■ NIBE FLM accessory is installed. Enter menu 4.9.1 and increase the time for when – Filter blocked.
  • Page 49 Gurgling sound This part of the troubleshooting chapter only applies if the NIBE FLM accessory is installed. Not enough water in the water seal. ■ Refill the water seal with water. – Choked water seal. ■ Check and adjust the condensation water hose.
  • Page 50: Alarm List

    (temperature sensor, brine on sensor input. out). ■ Defective sensor ■ Sens flt:BT12 No contact with the sensor Compressor blocked. Open-circuit or short-circuit (temperature sensor, con- on sensor input. denser supply). ■ Defective sensor Chapter 5 | Disturbances in comfort NIBE F1355...
  • Page 51 (temperature sensor, cooling shunt closes. on sensor input. supply line). ■ Defective sensor 40-42 Compr.phs 1-3 The compressor phase men- Compressor blocked. Phase failure. tioned has been below 160 V for 30 min. NIBE F1355 Chapter 5 | Disturbances in comfort...
  • Page 52 Pressure switch The high or low pressure Compressor blocked. Insufficient circulation in the alarm switch has tripped. brine or heating medium side. Chapter 5 | Disturbances in comfort NIBE F1355...
  • Page 53 No contact with the sensor The mixing valve is closed Open-circuit or short-circuit (temperature sensor, hot and only cold water is permit- on sensor input. water, supply line). ted. ■ Defective sensor NIBE F1355 Chapter 5 | Disturbances in comfort...
  • Page 54 1 hour. Inverter alarm type Continuous under-voltage Compressor blocked. Main and group fuses and has been registered by the their cable connections. inverter for 1 hour. Chapter 5 | Disturbances in comfort NIBE F1355...
  • Page 55 Main and group fuses and porarily at a lower speed than their cable connections. the minimum permitted 3 ■ Compressor wiring. times within 2 hours or con- ■ Compressor. tinuously for 1 hour. NIBE F1355 Chapter 5 | Disturbances in comfort...
  • Page 56 Compressor blocked. Main and group fuses and inverter has been too high 3 their cable connections. times within 2 hours or con- ■ Compressor wiring. tinuously for 1 hour. ■ Inverter. ■ Compressor. Chapter 5 | Disturbances in comfort NIBE F1355...
  • Page 57: Information Messages

    High Brine in Brine out has reached Compressor blocked. The brine temperat- Incorrect settings. set max temperature. ure has fallen 1 °C at brine in during a start attempt. NIBE F1355 Chapter 5 | Disturbances in comfort...
  • Page 58 ■ Incorrectly connec- ted communica- tion cable. ■ Incorrectly set DIP switch. ■ No electrical supply to the accessory card. Chapter 5 | Disturbances in comfort NIBE F1355...
  • Page 59 Compressor blocked. Stopped at the same progress pressor. time as compressor heater/crankcase heater. SPA not updated Current spot price is Can influence the in- Check connection to not available. stallation’s priorities. the Internet. NIBE F1355 Chapter 5 | Disturbances in comfort...
  • Page 60 Main and group fuses fault in the inverter stopped. 30 minutes after rec- and their cable con- has occurred. tified alarm. nections. ■ Perform a com- plete restart of the heat pump. See page 50. Chapter 5 | Disturbances in comfort NIBE F1355...
  • Page 61 Inverter alarm type Max current in has The compressor is Resets automatically Main and group fuses been too high tem- stopped. 60 seconds after rec- and their cable con- porarily. tified alarm. nections. NIBE F1355 Chapter 5 | Disturbances in comfort...
  • Page 62 5.12. played. ext. alarm Status of AUX-in. None. blocked Additional heat ex- None. ternally blocked. blocked Compressor extern- None. ally blocked. starts Display has restarted. None. Chapter 5 | Disturbances in comfort NIBE F1355...
  • Page 63: Item Register

    Menu system, 8 Help menu, 10 Operation, 9 Scroll through the windows, 10 Selecting menu, 9 Selecting options, 9 Setting a value, 9 Use the virtual keyboard, 10 OK button, 7 Operation, 9 NIBE F1355 Chapter 6 | Item register...
  • Page 67: Contact Information

    Tel: +7 831 419 57 06 E-mail: kuzmin@evan.ru www.nibe-evan.ru NIBE AB Sweden, Box 14, Hannabadsvägen 5, SE-285 21 Markaryd Tel: +46 (0)433 73 000 E-mail: info@nibe.se www.nibe.se For countries not mention in this list, please contact Nibe Sweden or check www.nibe.eu for more information.
  • Page 68 WS name: Bergvärme - F1355 2017-06 WS version: a96 (working edition) Publish date: 2017-06-13 15:50 NIBE AB Sweden Hannabadsvägen 5 Box 14 SE-285 21 Markaryd info@nibe.se www.nibe.eu 431340...
