1525RGL 1725RGL & 1825RGL
For use with Valor model 1500, 1700 & 1800 Linear Fireplace
Note: This kit must be installed or serviced
by a qualifi ed installer, service agency or
gas supplier. These instructions are to be
used in conjunction with the main installation
instructions for the above listed models.
WARNING: If these instructions are not
followed exactly, a fi re or explosion may
result causing property damage, personal
injury or loss of life.
The following kits are required for a
complete installation:
•
1525RGL-1 sides and rear panels or
•
1725RGL-1 sides and rear panels
•
1825RGL-1 sides and rear panels
•
1725RGL-3 glass liners retainer set
4004655-05
© 2017, Miles Industries Ltd. All rights reserved.
Linear Series
Refl ective Glass Liners Set
Installation Instructions
Kit Components
1525RGL-1 (for 1500 models):
•
4004273 – LH side glass panel
•
4004274 – RH side glass panel
•
4004652 – Rear glass panels (3)
•
4004651 – Roof panels - black (2)
1725RGL-1 (for 1700 models):
•
4004273 – LH side glass panel
•
4004274 – RH side glass panel
•
4004275 – Rear glass panels (3)
•
4003728 – Roof panels - black (2)
1825RGL-1 (for 1800 models):
•
4004273 – LH side glass panel
•
4004274 – RH side glass panel
•
4005121 – Rear glass panels (3)
•
4006286 – Roof panels - black (2)
1725RGL-3 (for 1500, 1700 and 1800 models):
•
4004380 – Rear glass retainer strips (2)
•
4004658 – Side glass anchors (2)
•
4004356 – Rear glass anchors (2)
•
100A757 – #8 x 3/8" Philips screws (2)

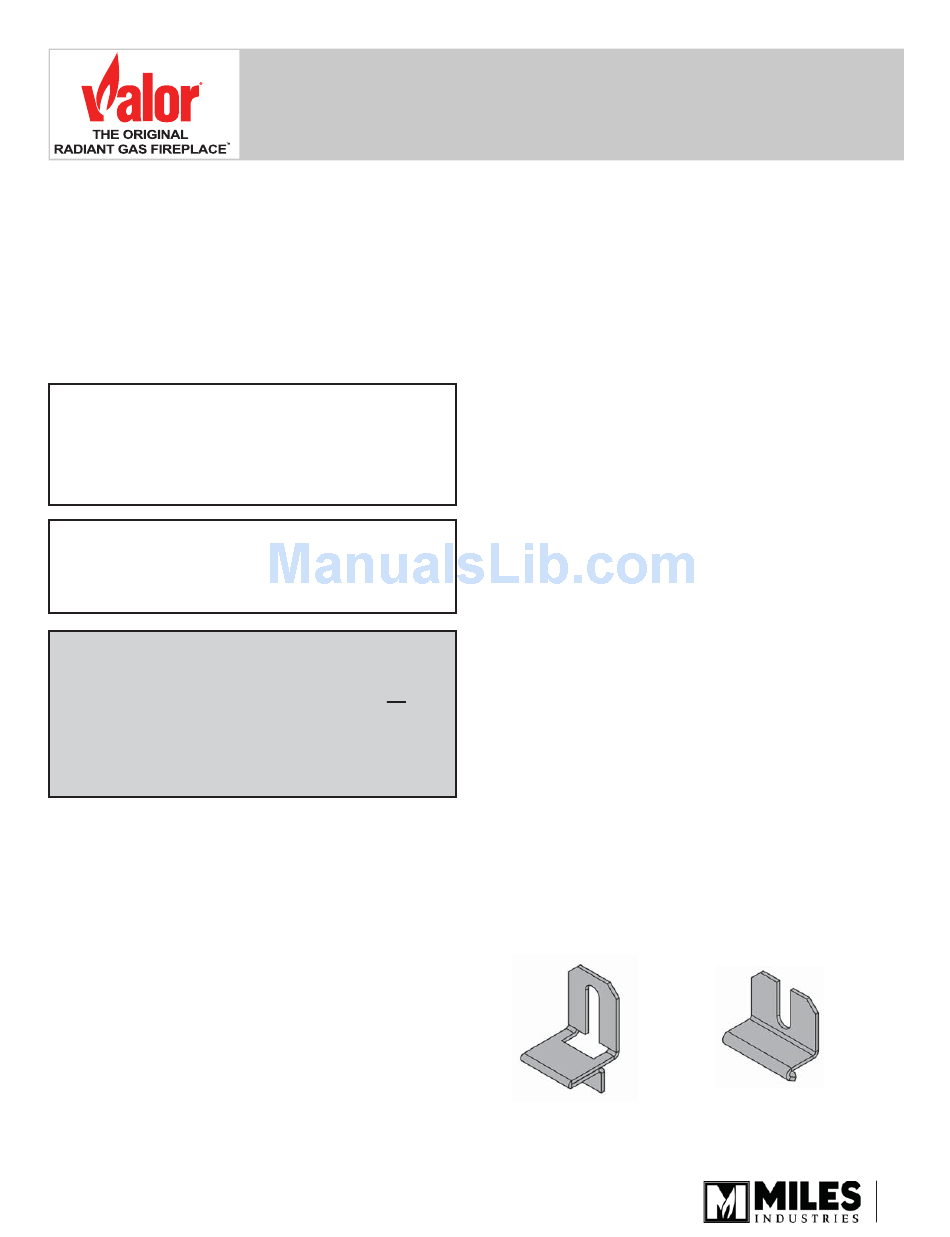

Side glass anchor
Rear glass anchor
1
Advertisement
Table of Contents
Related Manuals for Valor 1725RGL-3
Summary of Contents for Valor 1725RGL-3
- Page 1 Linear Series 1525RGL 1725RGL & 1825RGL Refl ective Glass Liners Set For use with Valor model 1500, 1700 & 1800 Linear Fireplace Installation Instructions Kit Components Note: This kit must be installed or serviced by a qualifi ed installer, service agency or 1525RGL-1 (for 1500 models): gas supplier.
- Page 2 Installation Place the rear glass retainer strips, groove at the back, on the ledge of the fi rebox behind the burner. Unpack all cartons carefully, with special care for the The strip are held in place with the tabs of the glass panels and the top ceramic panels.
- Page 3 Because our policy is one of constant development and improvement, details may vary slightly from those given in this publication. Designed and Manufactured by / for Miles Industries Ltd. 190 – 2255 Dollarton Highway, North Vancouver, B.C., CANADA V7H 3B1 Tel. 604-984-3496 Fax 604-984-0246 www.valorfi replaces.com...
- Page 4 LE PREMIER FOYER À GAZ RADIANT Panneaux de verre 1525RGL, 1725RGL et 1825RGL Pour installation sur les foyers Linear Valor 1500, 1700 et 1800 Directives d’installation Contenu des kits Note : Ce kit doit être installé et entretenu par un installateur qualifi é, une agence 1525RGL-1 (pour modèles 1500) :...
- Page 5 Installation Placez les supports de panneaux, la rainure vers l’arrière, sur le rebord de métal derrière le brûleur. Déballez les cartons avec précautions, particulièrement Les supports sont retenus sur le rebord de métal lorsque vous manipulez les panneaux de verre et de par des onglets tel qu’indiqué.
- Page 6 En maintenant les deux sections, insérez un Le panneau du haut est composé de deux sections support d’ancrage derrière la vis à l’endroit où les identiques. Il est bisauté et le côté “feu” uni noir est deux sections se joignent tel qu’indiqué et serrez la encoché...
