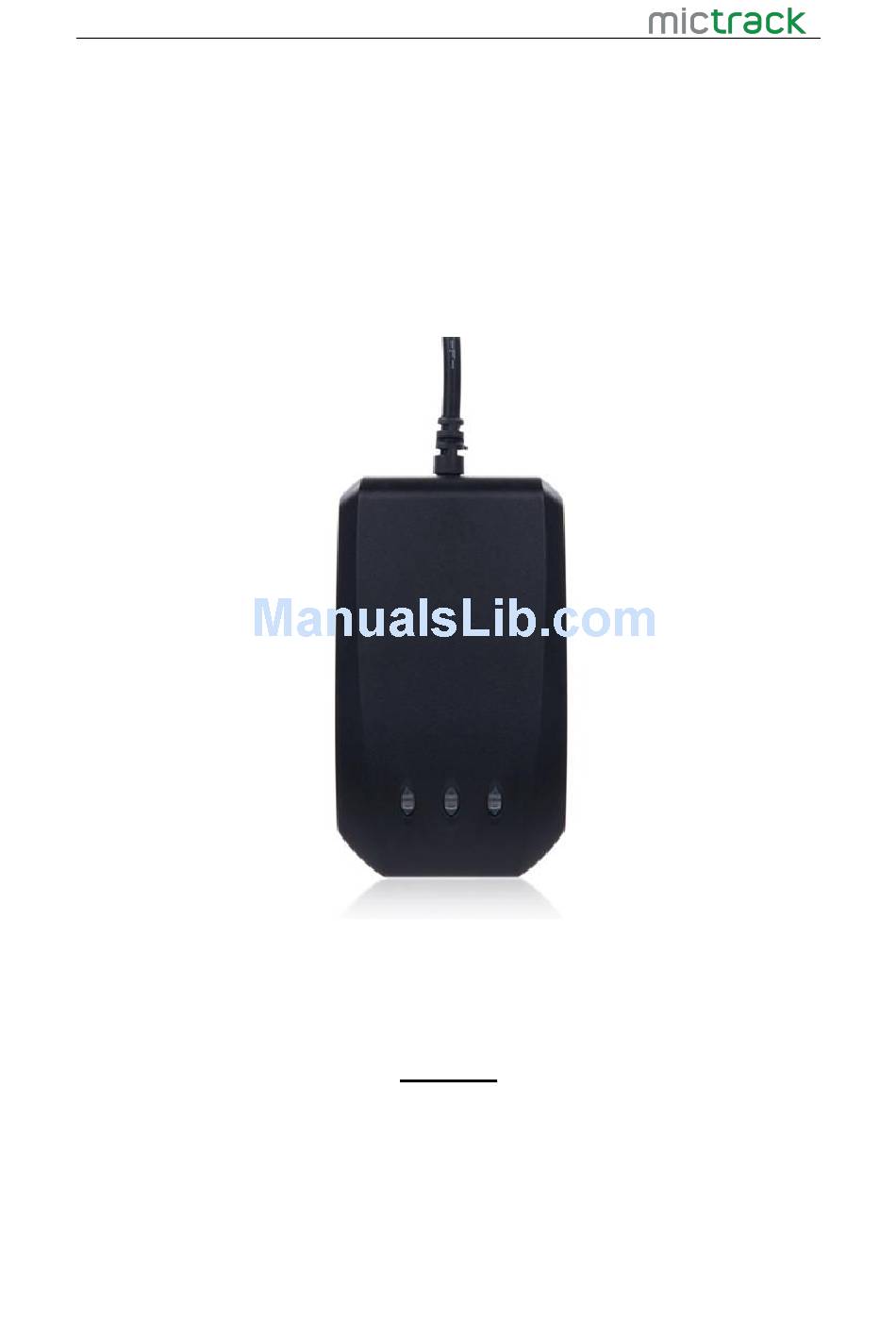

MC300 User Manual V2.0

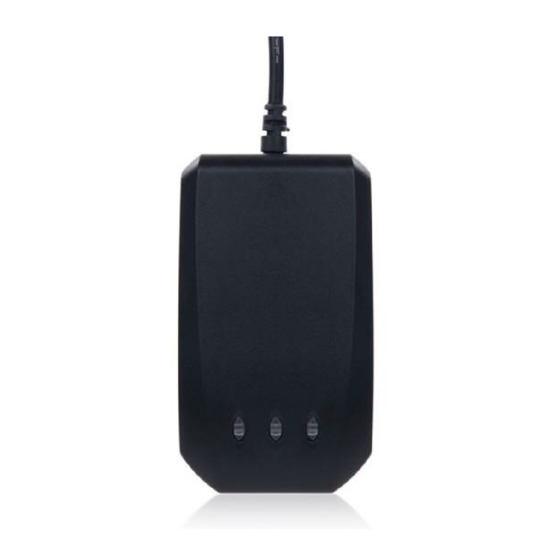

MC300 Vehicle GPS Tracker
User Manual V2.0
Preface
Thank you for choosing the tracker.This manual shows how to operate the device
smoothly and correctly.Make sure to read this manual carefully before using this product.
Please note that specification and information are subject to changes without prior notice
in this manual. Any change will be integrated in the latest release.The manufacturer
assumes no responsibility for any errors or omissions in this document.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MC300 and is the answer not in the manual?

Questions and answers

Related Manuals for Mictrack MC300

Summary of Contents for Mictrack MC300

  • Page 1 MC300 User Manual V2.0 MC300 Vehicle GPS Tracker User Manual V2.0 Preface Thank you for choosing the tracker.This manual shows how to operate the device smoothly and correctly.Make sure to read this manual carefully before using this product. Please note that specification and information are subject to changes without prior notice in this manual.

  • Page 2: Table Of Contents

    MC300 User Manual V2.0 Contents 1. Overview............................. 1 2. Features.............................. 1 3. Specification............................2 4. Hardware description........................3 4.1 Appearance..........................4 4.2 LED Status..........................4 4.2.1 Yellow LED-GSM indication..................4 4.2.2 Blue LED-GPS indication..................4 4.2.3 Red LED-Charge indication..................5 4.3 Wiring connections.........................5 4.4 Install the SOS........................

  • Page 3: Overview

    MC300 User Manual V2.0 1. Overview MC300 is the 2G vehicle tracker support GSM/GPRS.This device can locate and monitor any remote targets by SMS/App/PC. The user also can remote cut off oil/power and check the historical record. It used for vehicle/motorcycle/truck/Vans tracking and fleet management.

  • Page 4: Specification

    MC300 User Manual V2.0 3. Specification General Specifications 87mm x 50 mm x 12mm Dimensions Weight Battery Li- Polymer 700mAh, 3.7V Standby time Work mode: 1day; Sleep mode: 5days 12 to 24V DC Operation Voltage Operation Temperature -20°C to 80°C...
  • Page 5 MC300 User Manual V2.0 Air Interface Protocol Transmit Protocol TCPIP Scheduled Timing Report Scheduled Timing Report Geo-fence Geo-fence Power On/Off Report Report when the device is powered on or off Low Power Alarm Alarm when battery is low SOS/Emergency: SOS alarm when function key is pressed...

  • Page 6: Hardware Description

    MC300 User Manual V2.0 5. Hardware description 5.1 Appearance 5.2 LED Status 5.2.1 Yellow LED-GSM indication Status Description Light On GSM work Flash No GSM network or SIM card not detected 5.2.2 Blue LED-GPS indication Status Description Flash GPS No Work or No GPS Signal...

  • Page 7: Red Led-Charge Indication

    MC300 User Manual V2.0 5.2.3 Red LED-Charge indication Status Description Flash Charging/working Light Off No Power 5.3 Wiring connections Red - 12V-24V(+)  Black - Ground(-)  Yellow - SOS button(red wire)  White - Engine immobilizer (-) ( optional connection) ...

  • Page 8: Install The Sim Card

    MC300 User Manual V2.0 6. Install the SIM Card Remove the back plate, insert SIM card into SIM slot.Make sure enough charges in the SIM card. 7. Work Mode This tracker have two work mode which is SMS and GPRS Mode. SMS mode is for off line tracking by Mobile phone.

  • Page 9: Request Location With Google Map Link

    MC300 User Manual V2.0 Long: E114.03546 Speed:0KM/H Date:2015-09-13 Time:04:58:3002 BS:2531 6447 STATE:SMS 8.5 Request location with Google Map link Command:669+ user password Example: 6690000 Reply: When the tracker receive the command, tracker will send a Google link to the sender.

  • Page 10: Turn Geo-Fence Off

    MC300 User Manual V2.0 8.8.3 Turn Geo-fence off Command: 210+ password Example: 2100000 Reply: SET OK Note :Tracker will call and send alarm message to the first authorized phone number. 8.9 Low Battery Alarm While device detect internal battery is low power, it will send coordinate SMS with STATE:LOW POWER 8.10 Cut Off Oil Alarm...

  • Page 11: Time Zone

    MC300 User Manual V2.0 GPS work normally by automatically. 8.14 Time Zone Command:896+user password+space+D+NN Example:8960000 E08 Reply:SET OK Note:D takes E or W to indicate east or west time zone respectively. N takes a 2-digit number (1-12) to indicate time zone number.

  • Page 12: Voice On/Off

    MC300 User Manual V2.0 Note : 1 is mean the sleep time, the wide is 1-720 , the unit is “minute” , Tracker will close GPS/GSM/POWER in sleep mode for save power, once shake, tracker will work again. 8.18 Voice ON/OFF...
  • Page 13 This can be a common issue, especially when initially setting up a new unit, and the unit fails to reply to a correct SMS command sequence. If you have any questions please do not hesitate to contact us info@mictrack.com. http://www.mictrack.com...
