Jacket Water Heater Wiring Diagram - MULTIQUIP MQP56 Operation Manual

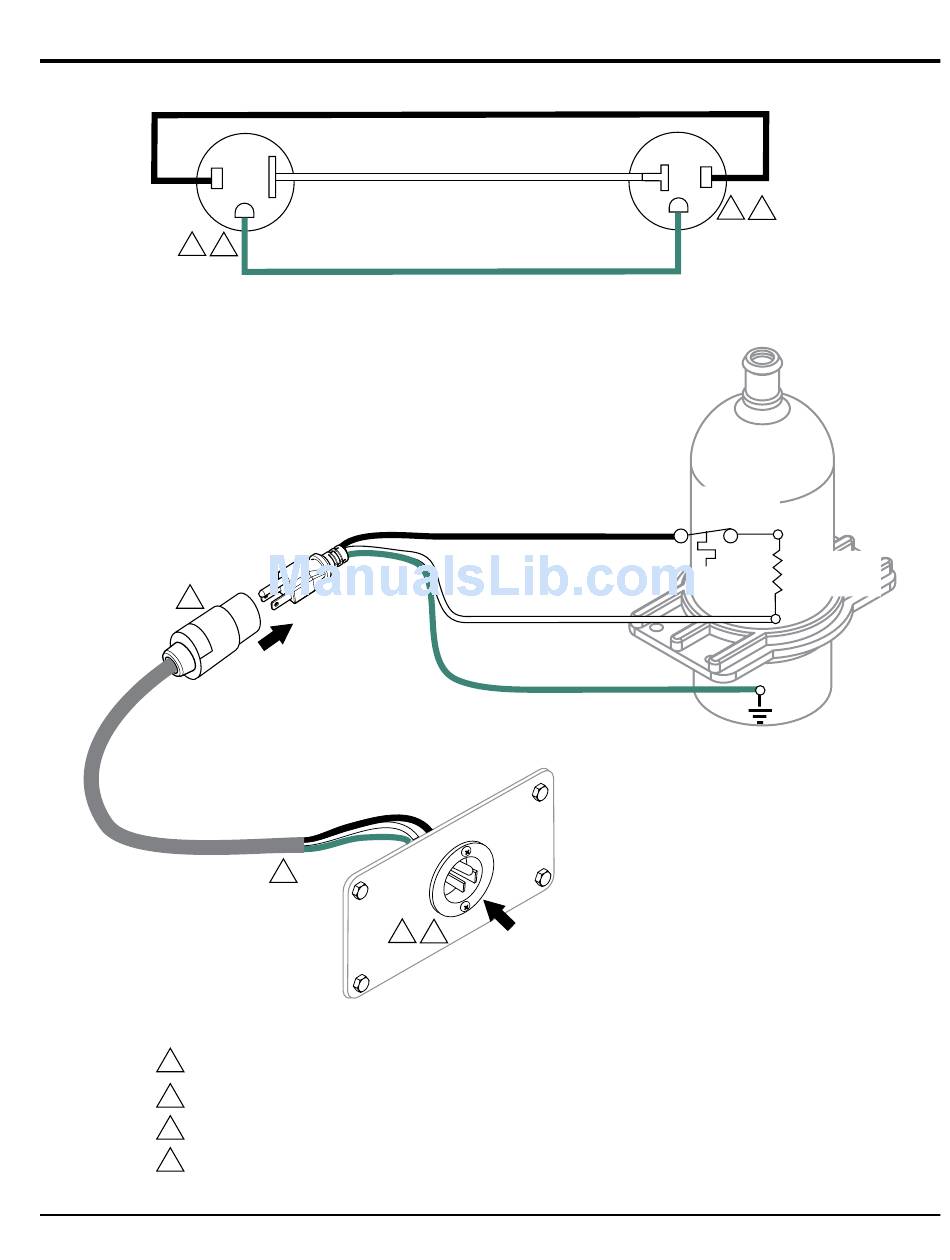

JACKET WATER HEATER WIRING DIAGRAM

BLACK 14 AWG. LINE (L)120VAC INPUT
WHITE 14 AWG. NEUTRAL (N)
A
1
2
GREEN 14 AWG. GROUND (G)
3
B
4
NOTES:
1
NEMA 5-15, 15A, 120 VAC, HBL5278C/HUBBLE RECEPTACLE.
2 RECEPTACLE IS MOUNTED ON OUTPUT TERMINAL PANEL ASSY.
3
20 AMP, 5-20R RECEPTACLE, P/N EE6131 (HBL5369C/HUBBLE RECEPTACLE).
4 CORD, CAROL 3/C 14 AWG., P/N EE56557.
MQP56 60 HZ GENERATOR • OPERATION MANUAL — REV. #0 (06/14/17) — PAGE 51
BLACK 14 AWG.
LINE (L)120VAC INPUT
WHITE 14 AWG.
NEUTRAL (N)
GREEN 14 AWG.
GROUND (G)
A
1
2
120 VAC INPUT, INSERT EXTERNAL
POWER CORD HERE.
B
3 4
BLOCK HEATER
(P/N 44558)
TEMP.
SWITCH
HEATING
120 VAC ELEMENT
GROUND
