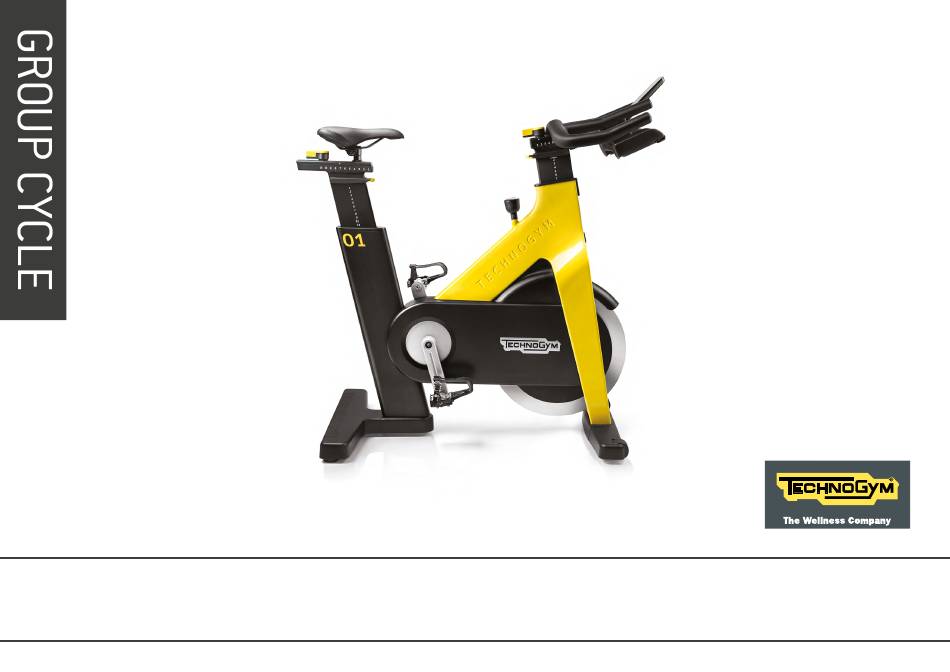

  • Page 1 User manual...

  • Page 2: Table Of Contents

    Using the equipment ..................... 20 Copyright The names Technogym®, The Wellness Company™ and Group Cycle are trade marks and the property of Technogym® s.p.a. in Italy and other countries. Copyright © Technogym® s.p.a., October 2015 Technogym® is committed to a policy of continuous improvement and reserves the right to modify its products and documentation without prior notice.

  • Page 3: Important Safety Instructions

    The user manual forms an integral part of the equipment, with which it should always be kept. The user manual should always accompany the equipment even in the event of relocation or sale. Technogym declines all responsibility for failure to pass on the user manual if the equipment is sold or relocated.
  • Page 4 Technogym’s written authorization or for failure on your part to use, operate and maintain the products as set out in this User Manual.

  • Page 5: Manufacturer And Equipment Identification

    Manufacturer and equipment identification Group Cycle is a commercial device, designed for indoor use in residential and professional environments. It is a Class S product without freewheel pursuant to ISO EN 20957-1. The equipment identification plate, situated on the front of the machine, includes the following information: Manufacturer’s name and address...

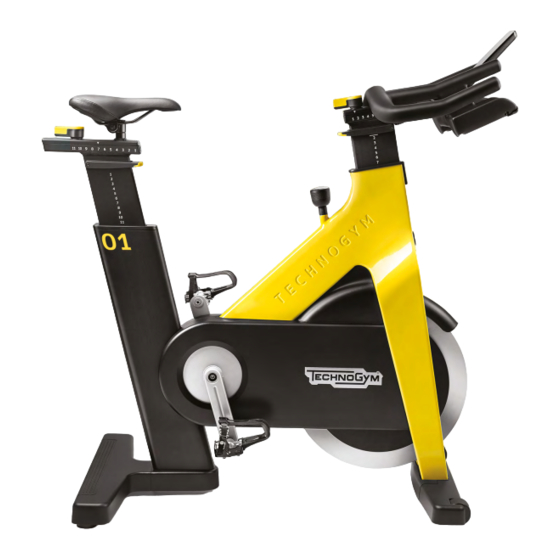

  • Page 6: Description Of The Equipment

    Description of the equipment A Handlebar B Saddle C Pedals D Knob for adjusting resistance E Levers for adjusting the saddle F Levers for adjusting the handlebar G Personal item tray/water bottle holder H Adjustable feet Wheels L Pedal cranks Group Cycle...

  • Page 7: Technical Data

    590 mm (23") 1060 mm 1185 mm (42") (47") 1120 mm (44") Weight of equipment 67 kg (148 lb) 1340 mm Maximum user weight 160 kg (353 lb) (53") Manufacturer Technogym s.p.a. via Perticari 20 - 47065 Gambettola FC Group Cycle...

  • Page 8: Safety Devices

    Turn the knob clockwise (+) as far as it will goto lock the equipment. Warnings Please read the adhesive labels on the equipment, which provide information about possible risks and hazards. We recommend immediately replacing the labels when they become damaged or difficult to read. Group Cycle...

  • Page 9: Moving The Equipment

    The equipment has two fixed front wheels. To move the equipment, lift it up slightly, as shown in the figure, and push it forwards and backwards. Check that the handlebar is firmly fastened before lifting the product. If wheels cannot be used on the floor, move the equipment with normal lifting and transport methods. Group Cycle...

  • Page 10: Levelling

    Levelling Use the rear feet to level the equipment: loosen the lock nuts (B); screw the foot (A) in or out until the frame is in a stable position; tighten up the lock nut (B) after adjusting. Group Cycle...

  • Page 11: Maintenance

    Do not use chemical products or solvents to clean the equipment. For maintenance actions not described in this manual, call in the Technogym Technical Service. The safety standards of this equipment are only guaranteed if a careful inspection is performed every week to make sure that nothing is damaged and/or worn.
  • Page 12 Check the tightening of the central axle. Once a year Tighten the fastening screw to a tightening torque of 50 Nm. Saddle Check the stability of the saddle. Every 6 months Tighten the two seat attachment nuts to a tightening torque of 25 Nm. Group Cycle...
  • Page 13 Technogym Technical Support service. Vertical adjustment assembly Check that the tooth grips correctly and the For correct tooth grip contact the Technogym Once a month. (saddle and handlebar) lever is operating properly. Technical Support Service.

  • Page 14: Adjusting The Belt Tension

    (G), and the screws (E) and (F); refit the safety guards (B) and (D). Warning Do not over-tighten the belt. Excessive tension on the belt shortens its lifetime. The correct tension of the belt is 94 ± 5 Hz. Group Cycle...

  • Page 15: Adjusting Play In The Vertical Adjustments

    (A). Tightening screws (C) and (D) (clockwise) makes sliding harder. Loosening screws (C) and (D) (anticlockwise) makes sliding easier. Turn the screws 1/8 turn at a time and check the ease of sliding before making further adjustments. Group Cycle...

  • Page 16: Adjusting Play In The Horizontal Adjustments

    (A). If the nut is tightened (clockwise), sliding becomes harder. If the nut is loosened (anticlockwise), sliding becomes easier. Turn the nut 1/8 turn at a time and check the ease of sliding before making further adjustments. Group Cycle...

  • Page 17: Technical Assistance

    Via Calcinaro 2861, 47521 Cesena Italy on-site servicing tel: +39 0547 56047 supply of original spare parts. http://www.technogym.com/Support When you contact the Technogym Technical Support Service you must give the following information: model, date of purchase, serial number, precise description of the problem.

  • Page 18: Storage

    Following measures implemented by the member states of the European Union, private citizens resident in the EC can take their used electrical and electronic equipment to authorised collection centres for disposal. If the product is used commercially, contact your reseller or Technogym Customer Service in your country to arrange collection and disposal of the electrical or electronic waste.

  • Page 19: Place Of Usage

    Do not expose the equipment to direct sunlight. Do not use Group Cycle in water. Do not use outdoors. Do not leave the equipment outdoors, exposed to the elements (rain, sun, wind, etc.). Do not expose the equipment to water jets.

  • Page 20: Using The Equipment

    Warnings Avoid sideways movements. Group Cycle is to be used solely for its intended purpose, i.e. as a cycle ergometer. Any other use of the equipment is to be considered improper and therefore dangerous. Group Cycle...
  • Page 21 (E) so that the foot is properly inserted and held by the toe clip (D). Move the tip of the foot and the knees forwards to ensure maximum pedal efficiency. Group Cycle...
  • Page 22 This product does not have a freewheel; as such, when the user stops pedalling, the system gives back the stored energy, keeping the pedals moving. To stop the movement of the pedals, press the knob (F) all the way down Group Cycle...
  • Page 23 0SM00958_Group Cycle D92_en_AA...
