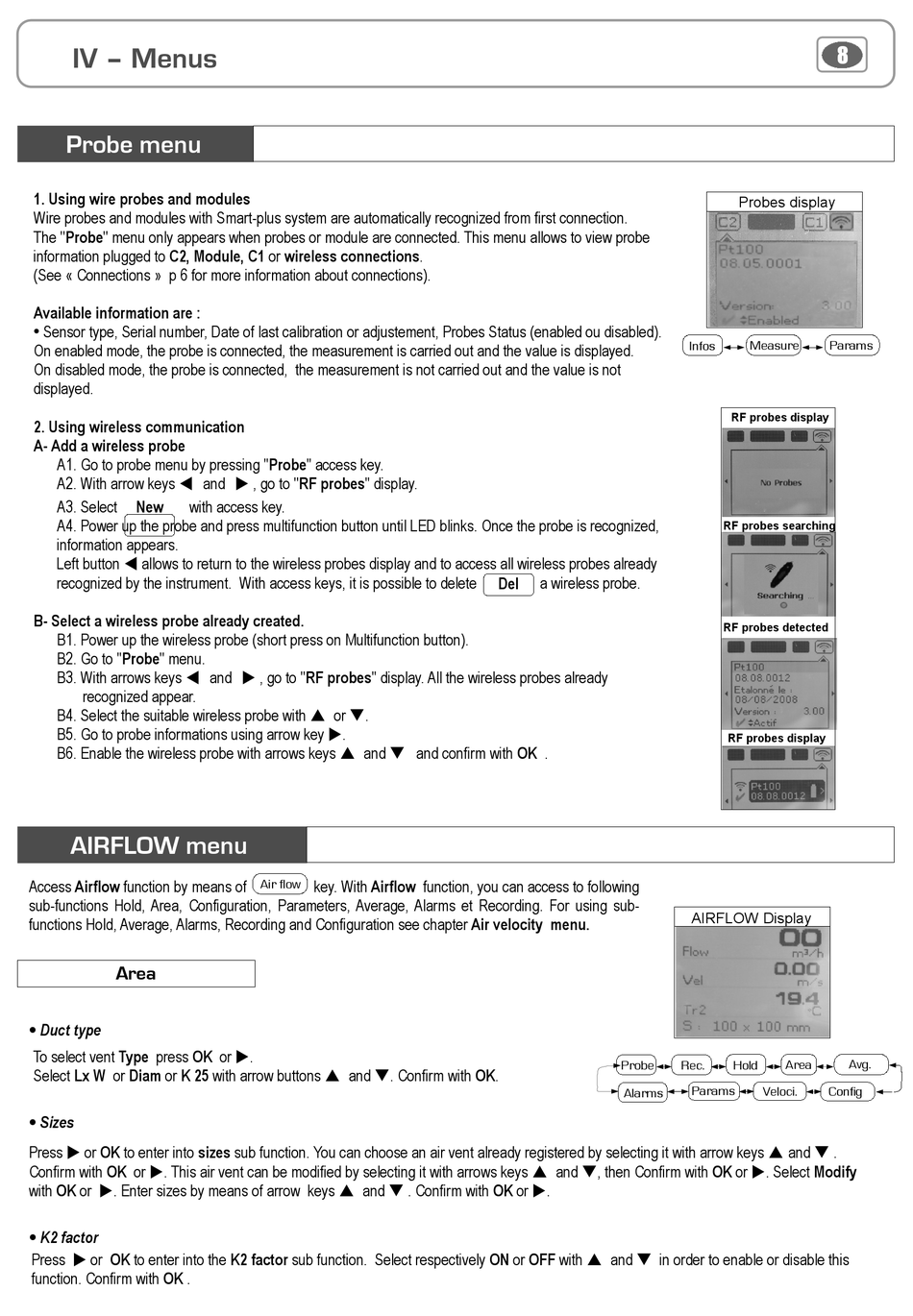

IV – Menus

Probe menu

1. Using wire probes and modules

Wire probes and modules with Smart-plus system are automatically recognized from first connection.
The ''Probe'' menu only appears when probes or module are connected. This menu allows to view probe
information plugged to C2, Module, C1 or wireless connections.
(See « Connections » p 6 for more information about connections).
Available information are :
• Sensor type, Serial number, Date of last calibration or adjustement, Probes Status (enabled ou disabled).
On enabled mode, the probe is connected, the measurement is carried out and the value is displayed.
On disabled mode, the probe is connected, the measurement is not carried out and the value is not
displayed.
2. Using wireless communication
A- Add a wireless probe
A1. Go to probe menu by pressing ''Probe'' access key.
A2. With arrow keys  and  , go to ''RF probes'' display.
A3. Select New with access key.
A4. Power up the probe and press multifunction button until LED blinks. Once the probe is recognized,
information appears.
Left button  allows to return to the wireless probes display and to access all wireless probes already
recognized by the instrument. With access keys, it is possible to delete
B- Select a wireless probe already created.
B1. Power up the wireless probe (short press on Multifunction button).
B2. Go to ''Probe'' menu.
B3. With arrows keys  and  , go to ''RF probes'' display. All the wireless probes already
recognized appear.
B4. Select the suitable wireless probe with  or .
B5. Go to probe informations using arrow key .
B6. Enable the wireless probe with arrows keys  and  and confirm with OK .

AIRFLOW menu

Access Airflow function by means of
sub-functions Hold, Area, Configuration, Parameters, Average, Alarms et Recording. For using sub-
functions Hold, Average, Alarms, Recording and Configuration see chapter Air velocity menu.

Area

• Duct type

To select vent Type press OK or .
Select Lx W or Diam or K 25 with arrow buttons  and . Confirm with OK.

• Sizes

Press  or OK to enter into sizes sub function. You can choose an air vent already registered by selecting it with arrow keys  and  .
Confirm with OK or . This air vent can be modified by selecting it with arrows keys  and , then Confirm with OK or . Select Modify
with OK or . Enter sizes by means of arrow keys  and  . Confirm with OK or .

• K2 factor

Press  or OK to enter into the K2 factor sub function. Select respectively ON or OFF with  and  in order to enable or disable this
function. Confirm with OK .
Air flow key. With Airflow function, you can access to following
Del a wireless probe.
Probe
Alarms
8
Probes display
Measure Params
Infos
RF probes display
RF probes searching
RF probes detected
RF probes display
Sondes RF
AIRFLOW Display
Area Avg.
Rec. Hold
Params Veloci. Config
