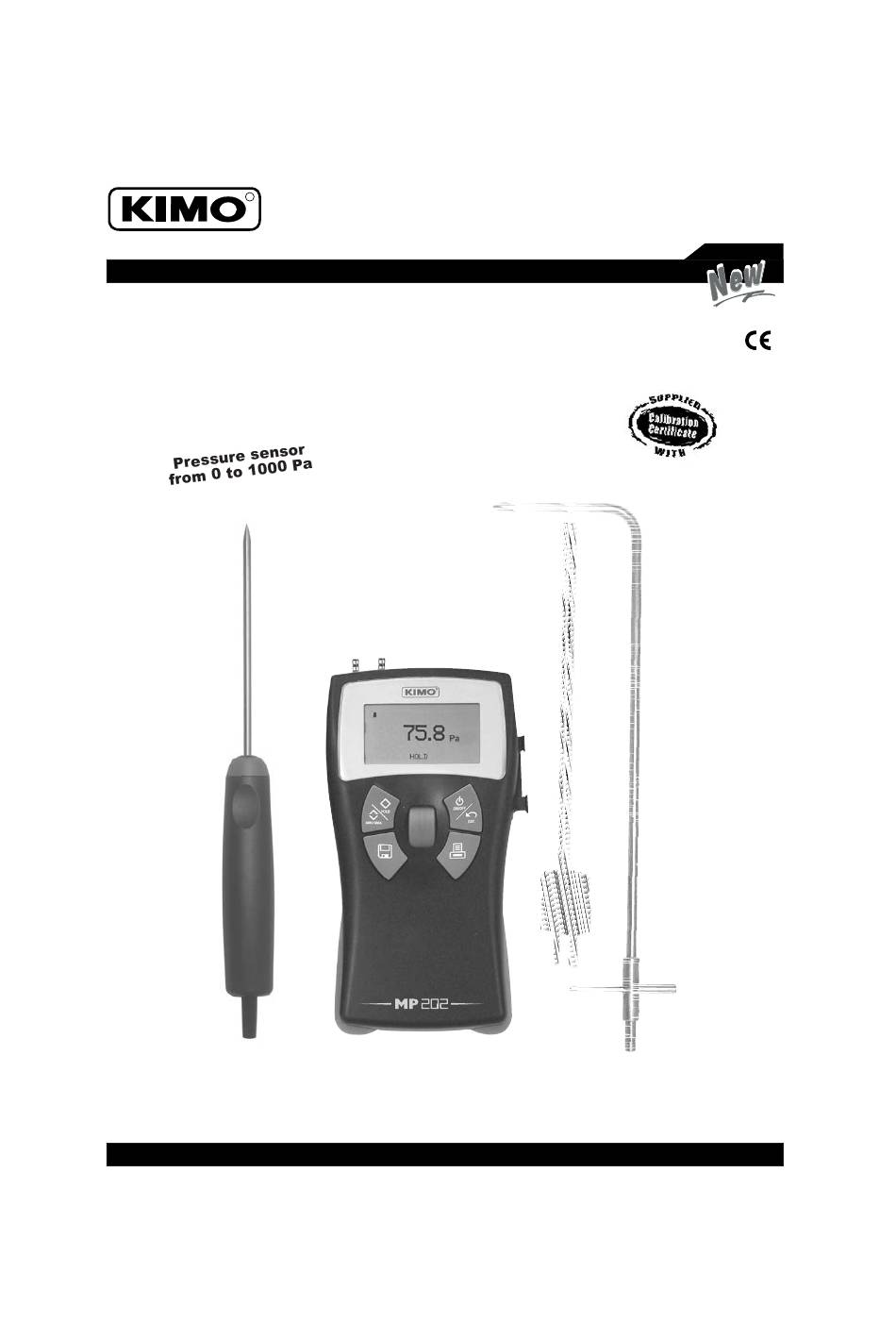

- Page 1 Air velocity Pressure Humidity Air flow Temperature CONSTRUCTEUR CLASS 200 DIRECTIONS FOR USE SMART MULTI-FUNCTIONS DEVICES MP 202...
-
Page 2: Table Of Contents
SUMMARY TECHNICAL SPECIFICATIONS ..........INTRODUCTION : - Description ................- Keyboard ................- Connections ................ INTRODUCTION OF THE MENU ..........PRESSURE MENU ................ TEMPERATURE MENU ..............SUB-MENUS : - Units ..................- Delta T ................- Automatic average .............. - Point by point average............- Automatic point by point average ........ -
Page 3: Technical Specifications

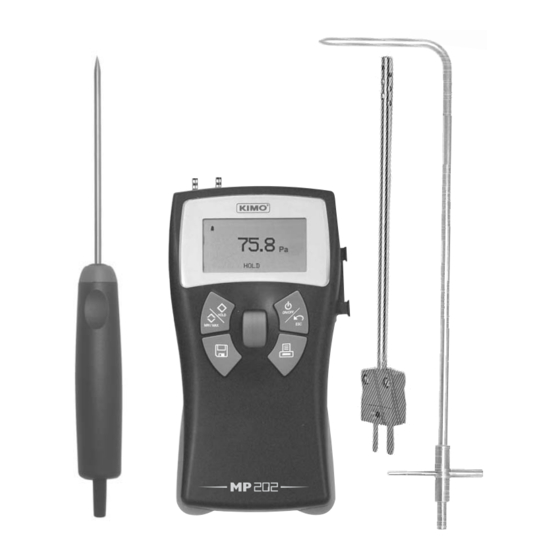

TECHNICAL SPECIFICATIONS The MP 202 is a micromanometer, compatible with all thermocouple K temperature probes. For more details, see the technical data sheet of the probes for portable instruments. Units of measure Measuring ranges Accuracies* Resolutions mmH O, Pa, Pressure 0 to ±1000Pa... -
Page 4: Description
PRESENTATION Description : Pressure plug Graphic display Battery load Scrolling down menu Connection of the System of probes battery charger fixing Elastomer protection Keyboard : 1. ON/OFF : Switch on / switch off the instrument. ESC : Return to the previous page or on the last validated data. -
Page 5: Connections
SMART PRO system, the screen shows the type of the connected probe, and its calibration or adjusting date. To access to the menu press MP 202 on the knob. To return to the homepage, disconnect the probe or press on “ESC” for the menu pressure. -
Page 6: Pressure Menu
PRESSURE MENU When you access to the menu pressure, an autozero is automatically made, then you can read at the center of the screen the measured value. The last line of the screen shows the next menu ( browsing the menu by scrolling down the knob - Autozero - Units... - Page 7 TEMPERATURE MENU When you connect your probe(s) (see connections p. 3), the screen shows its characteristics. It is possible to connect 2 probes thermocouple K at the same time. Press then on the knob to enter in the menu temperature, the measured value is shown in the screen and the following menu appears on the last line (by browsing the menu by scrolling down the knob): - Units...
- Page 8 Point / point average : This function allows to calculate the average value of various points which you will have validated. The crolling down menu allows to validate a point or to reach the average of points previously validated. To validate a point, press on the knob.
-
Page 9: Velocity With Pitot
Air flow with K Factor : The K Factor is a coefficient making possible to calculate a flow from a Delta P. This coefficient is given by the manufacturer of supplying diffusers equipped with pressure connections (+ and -). The K Factor is stated in the technical datasheet from the manufacturer. -
Page 10: Date And Hour
Date and hour : Use the knob to settle each figures of the date and of the hour, and validate at each time pressing on the knob. To return to a figure previously validated, press on " ESC ". Retro-lighting : It is possible to activate or to deactivate the retro-lighting of the display : by means of the knob choose "ON", "... -
Page 11: New
CALIBRATION All KIMO devices are calibrated in our premises and supplied with a calibration certificate, as per the AFNOR FD X 07-012 norms, in accordance with the National Standards. In order to comply with standards of Quality Assurance, measuring devices should be checked annualy. - Page 12 EXPORT DEPARTMENT Boulevard de Beaubourg Emerainville - BP 48 77312 MARNE LA VALLEE CEDEX 2 Tel : 33.1.60.06.69.25 Fax : 33.1.60.06.69.29...
