DESCRIPTION OF THE DEVICE

OK key
Backlight key
Select key

PERFORM A MEASUREMENT

Turn on the device by pressing on « On/Off/Esc ».
➢
The device displays its name « CT110 ».
Put the probe to the required location.
➢
The device displays the measured velocity.
If the type of selected probe is the contact probe, put the contact tip on the probe.

FREEZE THE MEASUREMENT

During a measurement :
Press on « Hold/min/max » to freeze the measurement.
➢
« Hold » displays on screen and the measurements are frozen.
Press on « On/Off/Esc » to exit the hold function.
➢
The device returns to the measurements display.

DISPLAY THE MINIMUM AND THE MAXIMUM

Once the measurement are frozen :
Press again on « Hold/min/max ».
➢
The device displays the maximum value of velocity measured since the last questioning at the top of the screen and the
●
minimum value of velocity measured since the last questioning at the bottom of the screen.
Press again on « On/Off/Esc » to return to the measurement display.
➢

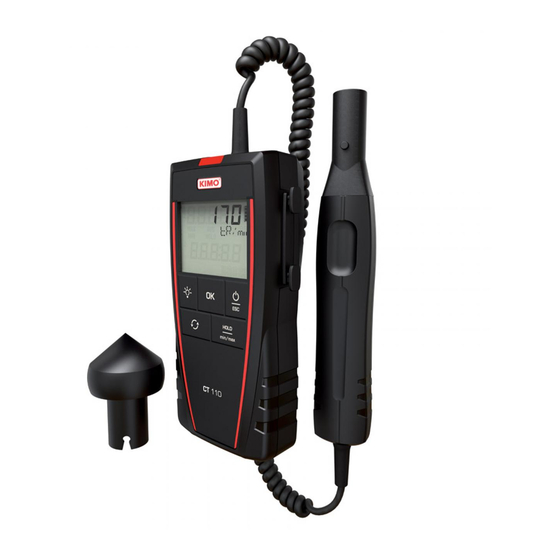

Tachometer
CT 110
On/Off/Esc key
Hold/min/max key

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CT 110 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Kimo CT 110

Summary of Contents for Kimo CT 110

  • Page 1 Tachometer CT 110 DESCRIPTION OF THE DEVICE OK key Backlight key On/Off/Esc key Select key Hold/min/max key PERFORM A MEASUREMENT Turn on the device by pressing on « On/Off/Esc ». ➢ The device displays its name « CT110 ». Put the probe to the required location.
  • Page 2 ADJUST THE DEVICE Device drop-down menu ● SEL. SEL. SEL. SEL. UNIT PROBE AUTO BEEP Select Select Select Select CONT Select the probe type It is possible to select the probe type: optic probe or contact probe. Press on « Select ». ➢...
  • Page 3 Adjust the auto shut-off  The device is on and displays the measurement. Press on « Select » until « AUTO OFF » blinks on screen. ➢ Press on « OK ». ➢ The time before device auto shut-off blinks at the bottom of the screen. Press on « Select » to select the time before device auto shut-off : 15, 30, 45, 60, 75, 90, 105, 120 or OFF. ➢...
  • Page 4 Once returned to KIMO, required waste collection will be assured in the respect of the environment in accordance to 2002/96/CE guidelines relating to WEEE...
