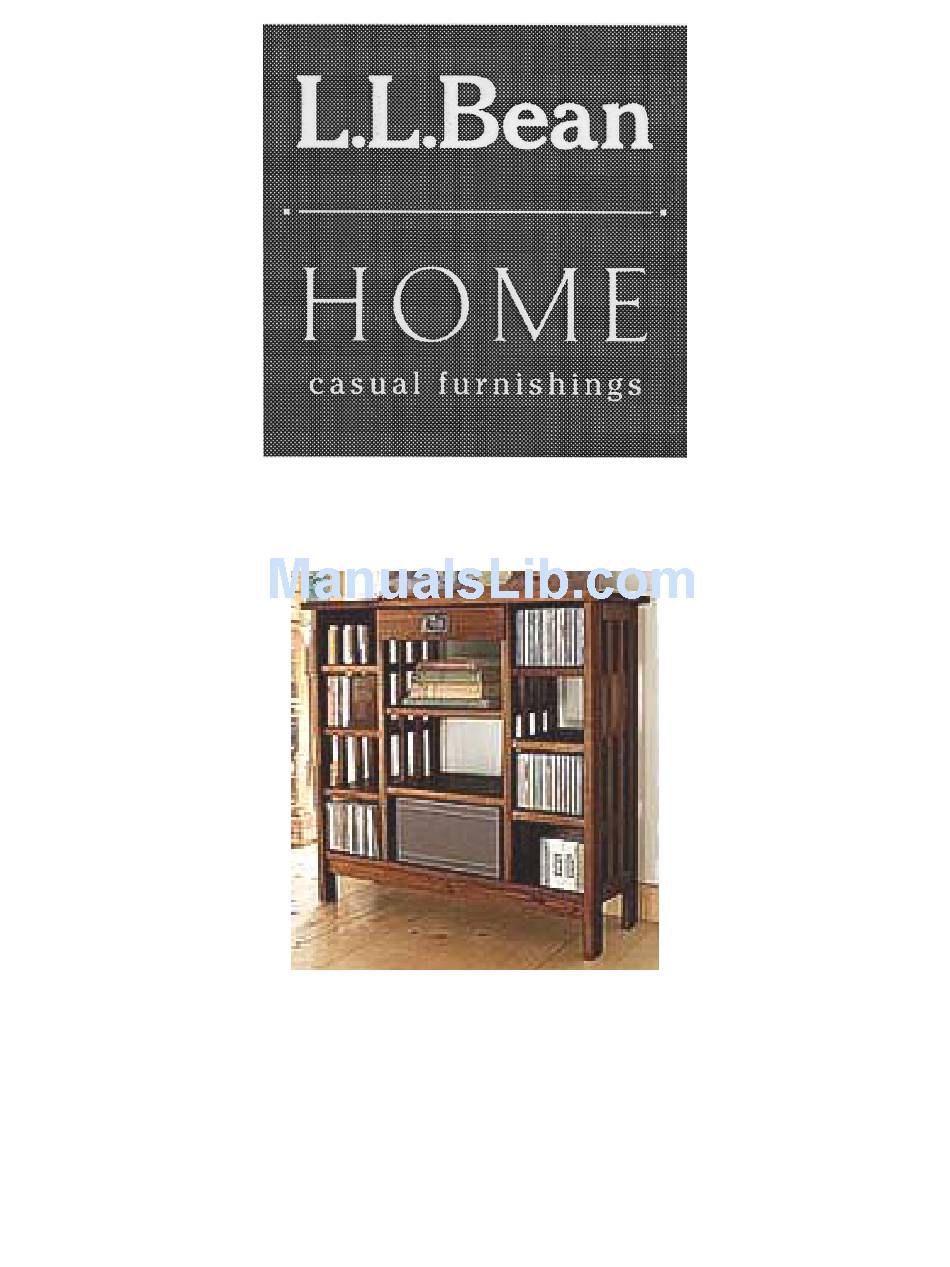

MISSION STORAGE CONSOLE
Thank you for purchasing our Mission Storage Console. Assembly of this product
requires a Phillips screwdriver and a hammer. We have found it helpful to have a
second person present in at least one step of the assembly
ATF4/5062919
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for L.L.Bean MISSION STORAGE CONSOLE
Summary of Contents for L.L.Bean MISSION STORAGE CONSOLE
- Page 1 MISSION STORAGE CONSOLE Thank you for purchasing our Mission Storage Console. Assembly of this product requires a Phillips screwdriver and a hammer. We have found it helpful to have a second person present in at least one step of the assembly...
- Page 2 Assembly of this product requires a phillips screwdriver and a hammer. We have found it helpful to have a second person assist in the assembly of this product. The 42” wide Mission Storage Console has two sets of drawer hardware. ATF4/5041115...
- Page 3 STEP 5: Base assembly Lay first side assembly (A) on edge. Align pilot holes in edge of bottom shelf (B) with predrilled holes in uprights of side assembly (A). Secure by threading two 1 1/4" #8 wood screws through holes in side assembly (A) and into pilot holes in end of bottom shelf (B).
- Page 4 STEP 9 Cover screws in center assembly (CD) with wood plugs. Tap plugs gently with hammer to secure. STEP 10 Turn base assembly (AB) upright. Place 4 wood pins in predrilled holes in bottom shelf (B). STEP 11 Align pins with predrilled holes in ends of center assembly sides (C) and slide center assembly (CD) into place.
- Page 5 STEP 12 Place wood pins into predrilled holes in top of center assembly (CD) as shown. STEP 13 Have second person assist with aligning predrilled holes in underside of top (E) with pins in top of center assembly (CD). Secure top using four 1 1/4" #8 screws.
- Page 6 STEP 15 Place removable shelves (F and G) on wood pins, ensuring that grooves in underside of shelf engage pins. You may accommodate different sizes of books, etc., by removing shelves and pins. STEP 16 Attach drawer hardware as shown at right. Place drawer (H) into position in the top section of center assembly (CD).
