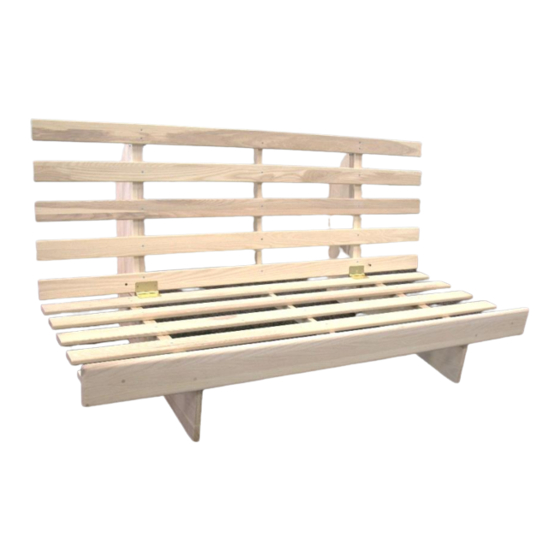

L.L.Bean Studio Futon Quick Start Manual

L.L.Bean

Studio Futon

Thank you for purchasing our Studio Futon. We have found it helpful to have a second person

present in at least one step of the assembly. It is important to follow these instructions as the correct

sequencing and positioning of the legs during assembly is crucial for the proper operation of the futon

frame.

Table of Contents

Need help?

Do you have a question about the Studio Futon and is the answer not in the manual?

Page 1 L.L.Bean Studio Futon Thank you for purchasing our Studio Futon. We have found it helpful to have a second person present in at least one step of the assembly. It is important to follow these instructions as the correct sequencing and positioning of the legs during assembly is crucial for the proper operation of the futon...
Page 2 Identify all parts using the diagrams below. Hardware Needed: Carriage bolt (8) Washer (8) Wing Nuts (8) Parts Needed: Seat legs (B) Futon Body (A) Back legs (C)
Page 3 CHOKING HAZARD: ADULT ASSEMBLY REQUIRED 1. Identify futon body (A) and seat legs (B) of the frame. There is a face plate on one side of the futon body. This is the front of the frame. The bottom side of the futon body will have three (3) wooden support braces attached.
Page 4 There are two large wooden dowels attached to the back of the frame. Insert these dowels partway into the large holes in the back legs of the frame. CARE: Clean with a soft, clean cloth. L.L.Bean www.llbean.com Product Support 1 800 341 4341...
